Schneider Electric XBTZG9773

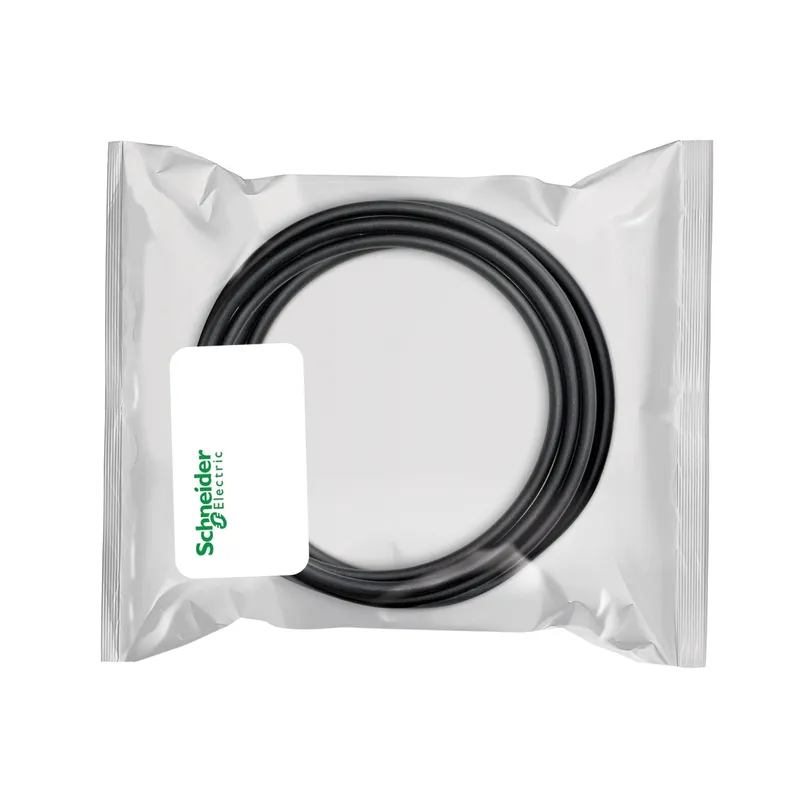

Harmony XBT - direct connection cable - 5 m - 1 male connector SUB-D 25/SUB-D 9

MPN
XBTZG9773
EAN
3595863885576
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTZG9773 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTZG9773?

This Magelis XBTZ is a RS 422 cable for connecting Magelis terminals to third-party PLCs. It enables direct connection of XBTGH and XBTGT terminals to Mitsubishi Melsec PLC. It is equipped with one 9-way SUB-D connector at one end and one 25-way SUB-D connector at the other end. it is 5 meters long. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productHarmony XBT
Accessory / separate part categoryConnection accessories
Accessory / separate part typeConnecting cable
Accessory / separate part designationDirect connection cable
Accessory / separate part destinationDirect connection of XBT terminal to Mitsubishi Melsec PLC

Complementary

Product compatibilityXBTGT4...; XBTGT6...; XBTGT5...; XBTOT...; XBTGK....; XBTGT2...; XBTGT7340
Range compatibilityHarmony HMI GTO; Mitsubishi A CPU
Cable length5 m
Electrical connection1 male connector SUB-D 25; 1 male connector SUB-D 9
Communication port protocolA CPU (SIO)
Physical interfaceRS422

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTZG9773: frequently asked questions

Can I still buy the XBTZG9773 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTZG9773, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can XBTZG9773 be shipped?

XBTZG9773 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTZG9773 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTZG9773 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTZG9773, subject to availability and destination.
