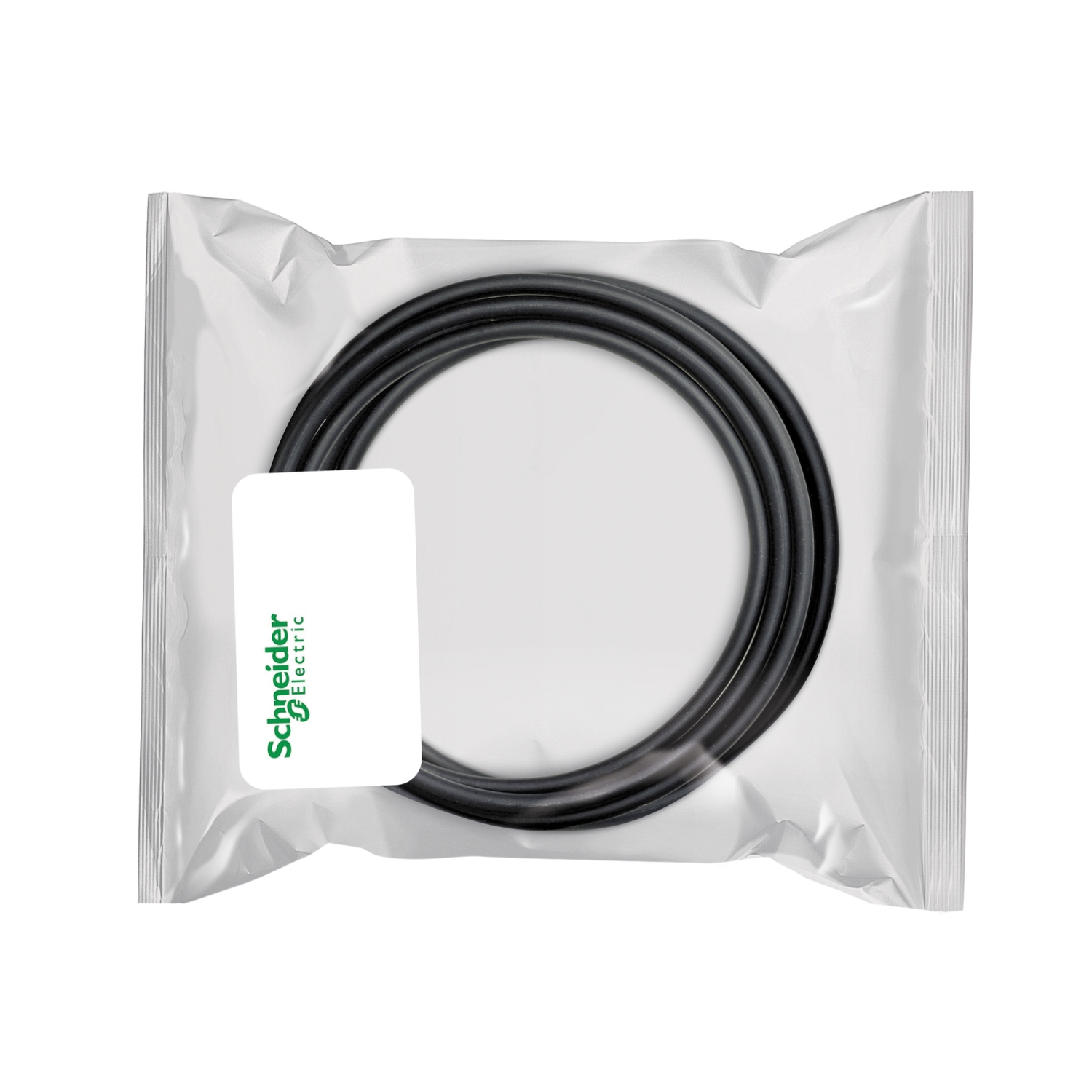

Schneider Electric XBTZ9733 – direct connection cable - L = 2.5 m - 1 Micro-logix 1000 - DF1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magelis XBT N, R, RT |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | CN |
| UPC / EAN | 3595864000077 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can XBTZ9733 be shipped?
XBTZ9733 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XBTZ9733 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XBTZ9733 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTZ9733, subject to availability and destination.
Schneider Electric XBTZ9733 — direct connection cable - L = 2.5 m - 1 Micro-logix 1000 - DF1 (Magelis XBT N, R, RT). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Harmony XBT |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part designation | Direct connection cable |
| Accessory / separate part destination | XBT terminal; Small touch screen panel |
| Cable length | 2.5 m |
Complementary
| Product compatibility | XBTRT511; XBTRT500 |
| Range compatibility | Harmony STO & STU; Harmony HMI GTO; Allen-Bradley Micro Logix |
| Electrical connection | 1 connector Micro-logix 1000 |
| Communication port protocol | DF1 |
| Physical interface | RS232 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet XBTZ9733 |
