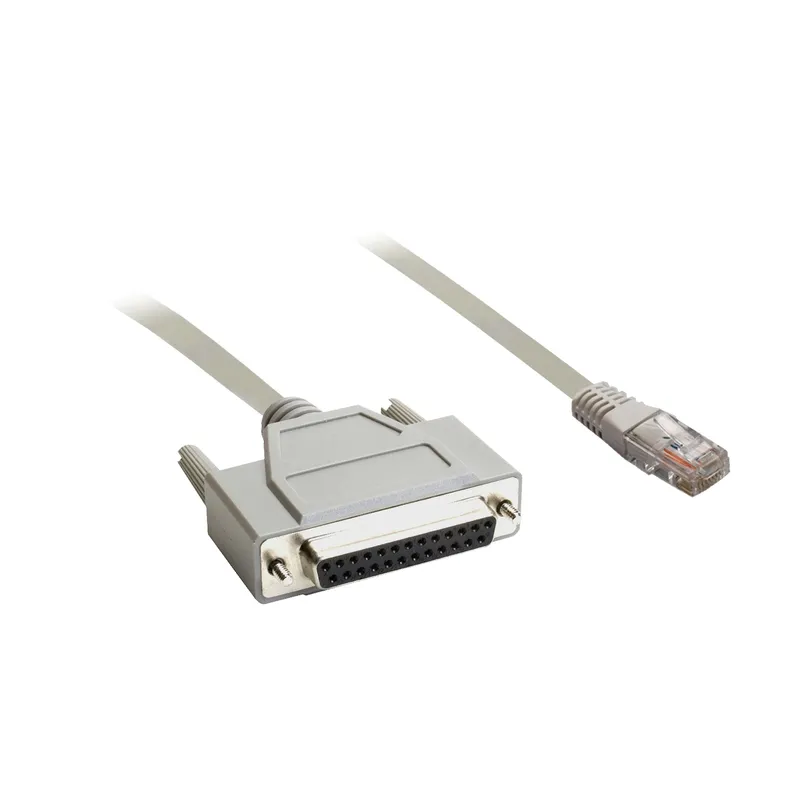

Schneider Electric XBTZ9732 – direct connection cable - L = 2.5 m - 1 Micro-logix 1000 - DH485
Discontinued by Schneider Electric — we can still source the original XBTZ9732 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magelis XBT N, R, RT |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110179514 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the XBTZ9732 now that it is discontinued?
Yes. Schneider Electric has discontinued the XBTZ9732, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can XBTZ9732 be shipped?
XBTZ9732 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XBTZ9732 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XBTZ9732 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTZ9732, subject to availability and destination.
This Magelis XBTZ is a RS 232 cable for connecting Magelis terminals to third-party PLCs. It enables direct connection of XBT terminals to Allen-Bradley Micro-logix PLCs. It is equipped with one 8-way male mini DIN connector at one end and one 25-way male SUB-D connector at the other end. It complies with DH485 Allen Bradley protocol. it is 2.5 meters long. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Harmony XBT |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part designation | Direct connection cable |
| Accessory / separate part destination | XBT terminal |
| Cable length | 2.5 m |
Complementary
| Product compatibility | XBTR411; XBTN410; XBTNU400; XBTN401; XBTR410 |
| Range compatibility | Allen-Bradley SLC5 |
| Electrical connection | 1 connector Micro-logix 1000 |
| Communication port protocol | DH485 |
| Physical interface | RS232 |
| Net weight | 0.21 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet XBTZ9732 |
