Schneider Electric XBTGT1100

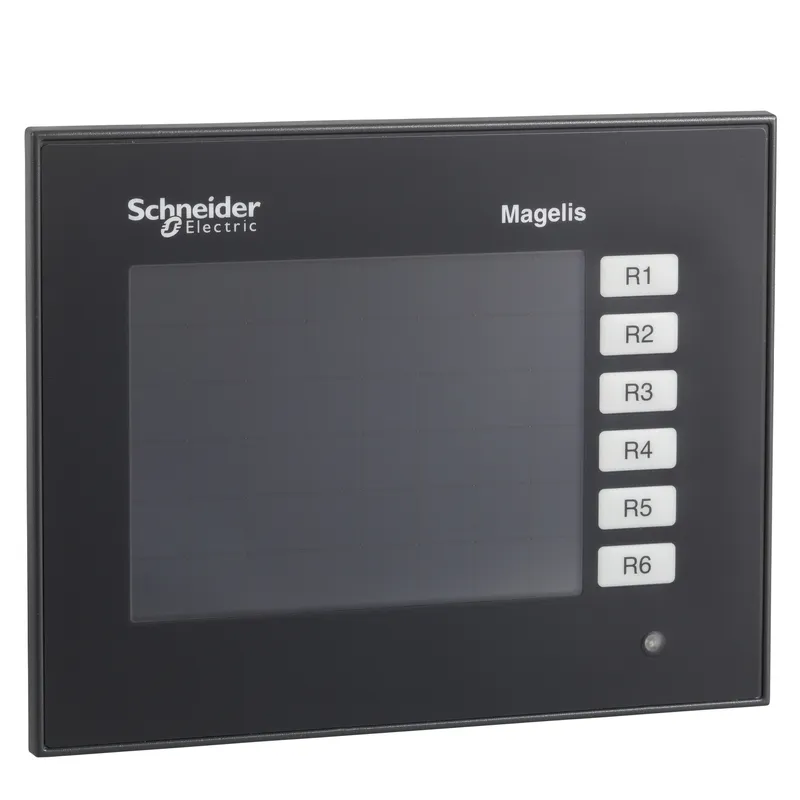

Advanced touchscreen panel - 320 x 240 pixels QVGA - 3.8" - STN LCD - 24 V DC

MPN
XBTGT1100
EAN
3595863878103
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTGT1100 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTGT1100?

Schneider Electric XBTGT1100 — advanced touchscreen panel - 320 x 240 pixels QVGA - 3.8" - STN LCD - 24 V DC (Magelis XBT GT). Discontinued by Schneider Electric; the manufacturer's successor is HMIGTO1300. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productHarmony XBTGT
Product or component typeAdvanced touchscreen panel
Display typeBacklit monochrome STN LCD
Display colourAmber or red; 8 levels of grey
Display resolution320 x 240 pixels QVGA
Display size3.8 inch
Software typeConfiguration software
Software designationVijeo Designer
Operating systemHarmony
Processor nameCPU RISC
Processor frequency100 MHz
Memory description512 KB SRAM back up of data with lithium battery back-up; 8 MB flash EPROM application memory
Integrated connection typeremovable screw terminal block connector power supply; female MINIDIN 8 connector application downloading; RJ45 connector COM1 serial link with RS232C/RS485 interface at <= 115.2 kbits/s
Resistance to electrostatic discharge6 kV conforming to IEC 61000-4-2 level 3
Cut-out dimensions118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm

Complementary

Touch sensitive zone8 x 6 cells
Touch panelResistive film
Backlight lifespan10000 hours with red; 50000 hours with amber
Brightness2 levels via touch panel
Contrast8 levels via touch panel
Character fontChinese (simplified Chinese); Korean; Taiwanese (traditional Chinese); Japanese (ANK, Kanji); ASCII
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2…28.8 V
Inrush current50 A
Power consumption in W7 W
Number of static function keys6 with labels
Local signalling1 LED (green) for normal operation
Number of pagesLimited by internal memory capacity
Downloadable protocolsTelemecanique Modicon Modbus; Mitsubishi Melsec third party protocols; Omron Sysmac third party protocols; Rockwell Automation Allen-Bradley third party protocols; Siemens Simatic third party protocols; Telemecanique Modicon Uni-TE
Realtime clockBuilt-in
Product mountingFlush mounting
fixing modeBy 2 spring clips; By 4 screw clamps
Front materialPPT
Enclosure materialPPT
MarkingCE
Width130 mm
Height104 mm
Depth41 mm
Net weight0.4 kg

Environment

Immunity to microbreaks2 ms
StandardsFCC Class A; CSA C22.2 No 14; EN 61131-2; UL 1604; UL 508; IEC 61000-6-2
Product certificationsC-Tick; UL Class 1 Division 2 T5; CSA Class 1 Division 2 T4A; cULus; ATEX zone 2/22; UL Class 1 Division 2 T4A; CSA Class 1 Division 2 T5
Ambient air temperature for operation0…50 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
Operating altitude< 2000 m
IP degree of protectionIP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz); 3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz)
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Resistance to fast transients2 kV conforming to IEC 61000-4-4 level 3
