Schneider Electric XBTGH2460B

Advanced hand-held panel-640 x 480 pixels VGA-5.7"-TFT LCD-24 V DC-w/o E-Stop

MPN
XBTGH2460B
EAN
3595864112114
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTGH2460B (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTGH2460B?

Schneider Electric XBTGH2460B — advanced hand-held panel-640 x 480 pixels VGA-5.7"-TFT LCD-24 V DC-w/o E-Stop (Harmony XBT GH). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productHarmony XBTGH
Product or component typeAdvanced hand-held panel
Display typeBacklit colour TFT LCD
Display colour65536 colours
Display resolution640 x 480 pixels VGA
Display size5.7 inch
Control type1 enable switch; 1 key switch
Contacts type and composition1 NC + 1 NO for key switch; 2 NO for enable switch; 2 NC + 1 NO
Software typeConfiguration software
Software designationVijeo Designer
Operating systemHarmony
Processor nameCPU RISC
Processor frequency266 MHz
Memory description512 KB SRAM back up of data with lithium battery back-up; 32 MB flash EPROM application memory
Integrated connection type1USB type A master port (V1.1); 24-pin Faston connector connector COM1 serial link, compatible with junction box; 24-pin Faston connector connector Ethernet TCP/IP, compatible with junction box; 24-pin Faston connector connector power supply, compatible with junction box
Resistance to electrostatic discharge6 kV conforming to IEC 61000-4-2 level 3

Complementary

Touch sensitive zone1024 x 1024
Touch panelAnalogue
Backlight lifespan50000 hours
Brightness16 levels via touch panel
Character fontJapanese (ANK, Kanji); ASCII (European characters); Korean; Chinese (simplified Chinese); Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2…28.8 V
[Ue] rated operational voltage24 V DC for key switch; 30 V DC for enable switch
Maximum [Ie] rated operational current0.3 A for key switch; 0.7 A for control handle
Inrush current60 A
Power consumption in W16.7 W
Number of Operation keys1 with LED
Number of static function keys11 with labels
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Downloadable protocolsSchneider Electric Modicon Modbus; Schneider Electric Modicon Modbus TCP/IP; Mitsubishi Melsec third party protocols; Omron Sysmac third party protocols; Rockwell Automation Allen-Bradley third party protocols; Siemens Simatic third party protocols; Schneider Electric Modicon Uni-TE
Realtime clockBuilt-in
Data storage equipment1 Compact Flash card >= 1 GB
Enclosure materialPPT
MarkingCE
Width224 mm
Height174 mm
Depth87.1 mm
Net weight1 kg

Environment

Immunity to microbreaks5 ms
StandardsIEC 61000-6-2; EN 61131-2; FCC Class A; UL 508
Product certificationsC-Tick; cULus
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…90 % without condensation
Operating altitude< 2000 m
IP degree of protectionIP65 conforming to IEC 60529
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz); 3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz)
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Resistance to fast transients2 kV conforming to IEC 61000-4-4 level 3

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTGH2460B: frequently asked questions

Can I still buy the XBTGH2460B now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTGH2460B, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can XBTGH2460B be shipped?

XBTGH2460B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTGH2460B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTGH2460B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTGH2460B, subject to availability and destination.

More Schneider Electric parts

Schneider Electric XBTGC1100U – Small touch HMI controller, Magelis XBT GC, GT/GK, 3 inch monochrome controller panel, 12 inputs, 6 outputs sink
Schneider Electric
XBTGC1100U

Small touch HMI controller, Magelis XBT GC, GT/GK, 3 inch monochrome controller panel, 12 inputs, 6 outputs sink

Schneider Electric XBTGC2120T – 5”7 monochrome controller panel - 16 inputs/16 outputs source
Schneider Electric
XBTGC2120T

5”7 monochrome controller panel - 16 inputs/16 outputs source

Schneider Electric XBTGC2120U – 5”7 monochrome controller panel - 16 inputs/16 outputs sink
Schneider Electric
XBTGC2120U

5”7 monochrome controller panel - 16 inputs/16 outputs sink

Schneider Electric XBTGH2460 – Advanced hand-held panel - 640 x 480 pixels VGA - 5.7" - TFT LCD - 24 V DC
Schneider Electric
XBTGH2460

Advanced hand-held panel - 640 x 480 pixels VGA - 5.7" - TFT LCD - 24 V DC

Schneider Electric XBTGK2120 – Advanced touchscreen panel with keyboard - 320 x 240 pixels QVGA- 5.7" - STN LCD
Schneider Electric
XBTGK2120

Advanced touchscreen panel with keyboard - 320 x 240 pixels QVGA- 5.7" - STN LCD

Schneider Electric XBTGK2330 – Advanced touchscreen panel with keyboard - 320 x 240 pixels QVGA- 5.7" - TFT LCD
Schneider Electric
XBTGK2330

Advanced touchscreen panel with keyboard - 320 x 240 pixels QVGA- 5.7" - TFT LCD

Schneider Electric XBTGK5330 – Advanced touchscreen panel with keyboard - 640 x 480 pixels VGA -10.4" - TFT LCD
Schneider Electric
XBTGK5330

Advanced touchscreen panel with keyboard - 640 x 480 pixels VGA -10.4" - TFT LCD

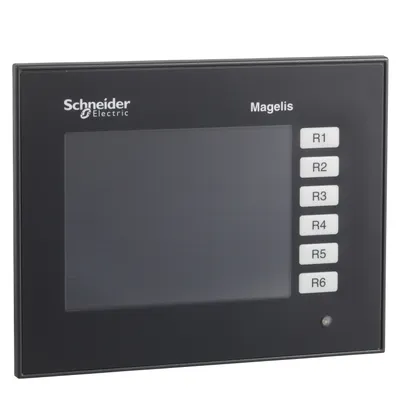

Schneider Electric XBTGT1100 – Advanced touchscreen panel - 320 x 240 pixels QVGA - 3.8" - STN LCD - 24 V DC
