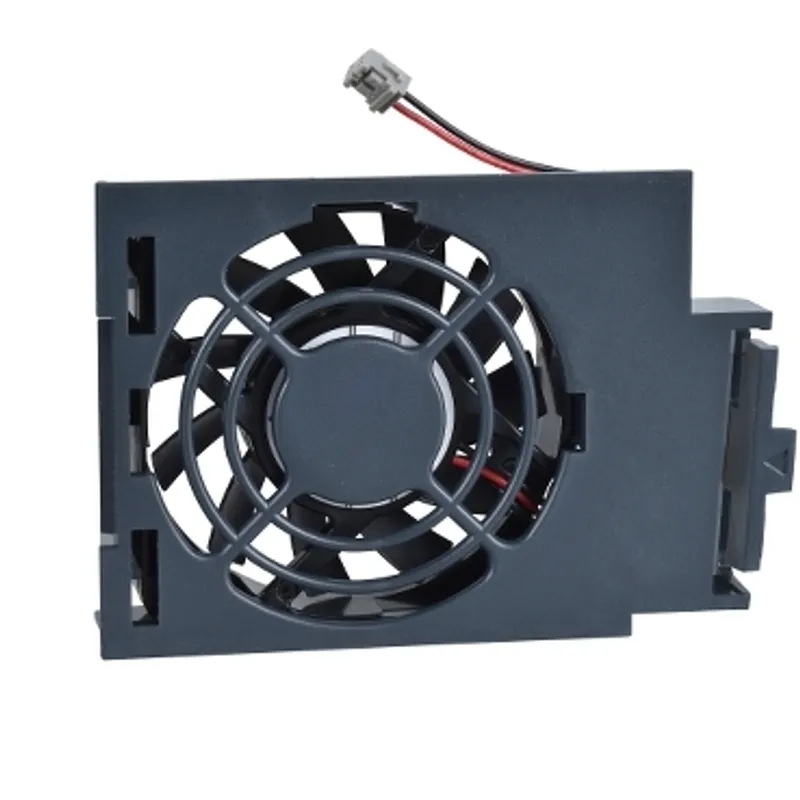

Schneider Electric VZ3V3102
Wear part, fan kit for variable speed drive, Altivar 212, Altivar 312, 2.2 to 5.5 kW, 1 and 3 phase
- MPN
- VZ3V3102
- EAN
- 3389119209588
- Category
- Altivar 312
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VZ3V3102 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VZ3V3102?
This product is a wear part for Drive Altivar 212, Altivar 312. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV212 from 0.75kw to 2.2kw and a rated voltage from 200V to 480V, for Altivar 312 from 0.37 to 2.2kw and a rated voltage from 200V to 600V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 16.8cm (width) x 23.2cm (Length) x 7.1cm (Height) and weighs 243g. This power fan is compatible with ATV312HU55M3, HU75M3, ATV312HU55N4, HU75N4, ATV312HU55S6, HU75S6. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. The Altivar 212 is a variable speed drive for 3-phase asynchronous motors from 0.75 kW to 75 kW. Specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC). Energy savings of up to 70% can be achieved compared to a traditional control system, thanks to eco-energy design.The Altivar 312 is designed for robustness and compatibility with the control system architectures of your machines.
Specifications
Specifications
| Range compatibility | Altivar 212, Altivar 312 |
| Accessory / separate part type | Fan kit |
| Accessory / separate part category | Cooling accessory |
| Product or component type | Fan |
| Net weight | 0.24 kg |
| Kit composition | Fan, Mounting bracket, Instruction sheet |
| Product compatibility | Variable speed drive ATV312 2.2 kW 200...240 V single phase, Variable speed drive ATV312 3…4 kW 200...240 V three phase, Variable speed drive ATV312 2.2…4 kW 380...500 V three phase, Variable speed drive ATV312 2.2…4 kW 525...600 V three phase, Variable speed drive ATV212 3…4 kW 200...240 V three phase, Variable speed drive ATV212 3…5.5 kW 380...480 V three phase |
Packaging
| Package 1 | 1 PCE, 23.2 cm × 16.8 cm × 7.1 cm (L × W × H), 235.0 g |
| Package 2 | 7 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 2.157 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VZ3V3102: frequently asked questions
Can I still buy the VZ3V3102 now that it is discontinued?
Yes. Schneider Electric has discontinued the VZ3V3102, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VZ3V3102 be shipped?
VZ3V3102 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VZ3V3102 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VZ3V3102 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VZ3V3102, subject to availability and destination.
