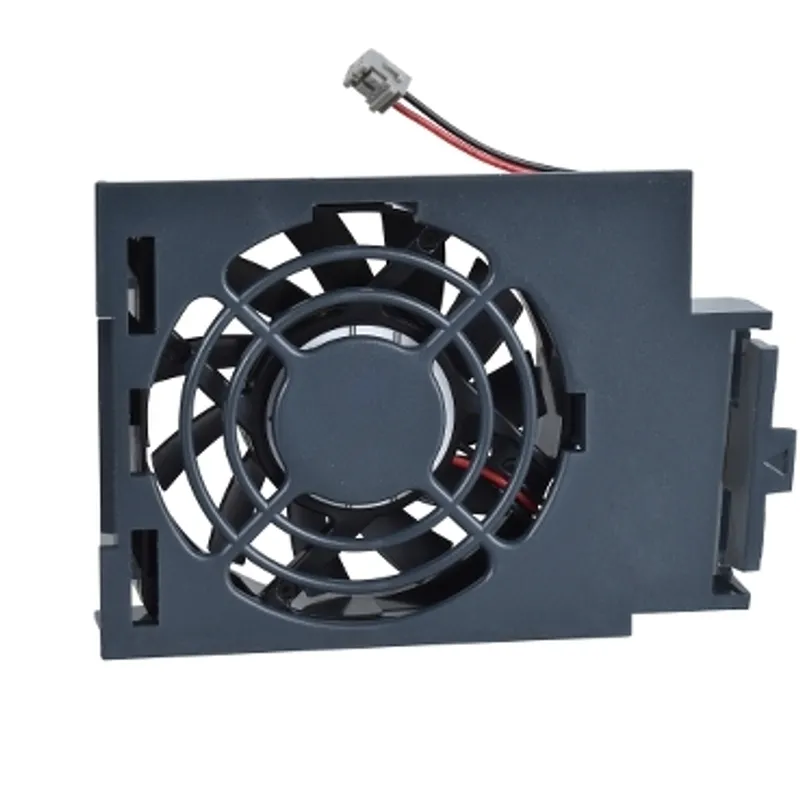

Schneider Electric VZ3V3101
Wear part, fan kit for variable speed drive, Altivar 212, Altivar 312, Altivar Machine 320, 0.37 to 2.2kW, 1 and 3 phase
- MPN
- VZ3V3101
- EAN
- 3389119209571
- Category
- Altivar 312
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VZ3V3101 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VZ3V3101?
This product is a wear part for Drive Altivar 212, Altivar 312 and Altivar 320. This Fan for variable speed drive is a cooling accessory. It works with variable speed drives ATV212 from 3kw to 5.5kw (rated voltage from 200V to 480V), for Altivar 312 from 2.2 to 4kw (rated voltage from 200V to 600V) and Altivar 320 from 0.37 to 2.2 kw (rated voltage from 200V to 600V). This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7cm (Height) and weighs 184g. This power fan is compatible with ATV312HU11M2, HU15M2, ATV312HU11M3, HU22M3, ATV312H037N4, HU15N4, ATV312H075S6, HU15S6. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet.
Specifications
Specifications
| Range compatibility | Altivar 212, Altivar 312, Altivar 320 |
| Accessory / separate part type | Fan kit |
| Accessory / separate part category | Cooling accessory |
| Product or component type | Fan |
| Net weight | 0.18 kg |
| Kit composition | Fan, Mounting bracket, Instruction sheet |
| Product compatibility | Variable speed drive ATV312 1.1…1.5 kW 200...240 V single phase, Variable speed drive ATV312 1.1…2.2 kW 200...240 V three phase, Variable speed drive ATV312 0.37…1.5 kW 380...500 V three phase, Variable speed drive ATV312 0.75…1.5 kW 525...600 V three phase, Variable speed drive ATV320...C 1.1…2.2 kW 200...240 V single phase, Variable speed drive ATV320...C 0.37…1.5 kW 380...500 V three phase, Variable speed drive ATV320...C 0.75…1.5 kW 525...600 V three phase, Variable speed drive ATV212 0.75…2.2 kW 200...240 V three phase, Variable speed drive ATV212 0.75…2.2 kW 380...480 V three phase |
Packaging
| Package 1 | 1 PCE, 23.0 cm × 17.0 cm × 7.0 cm (L × W × H), 184.0 g |
| Package 2 | 7 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 1.732 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VZ3V3101: frequently asked questions
Can I still buy the VZ3V3101 now that it is discontinued?
Yes. Schneider Electric has discontinued the VZ3V3101, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VZ3V3101 be shipped?
VZ3V3101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VZ3V3101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VZ3V3101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VZ3V3101, subject to availability and destination.
