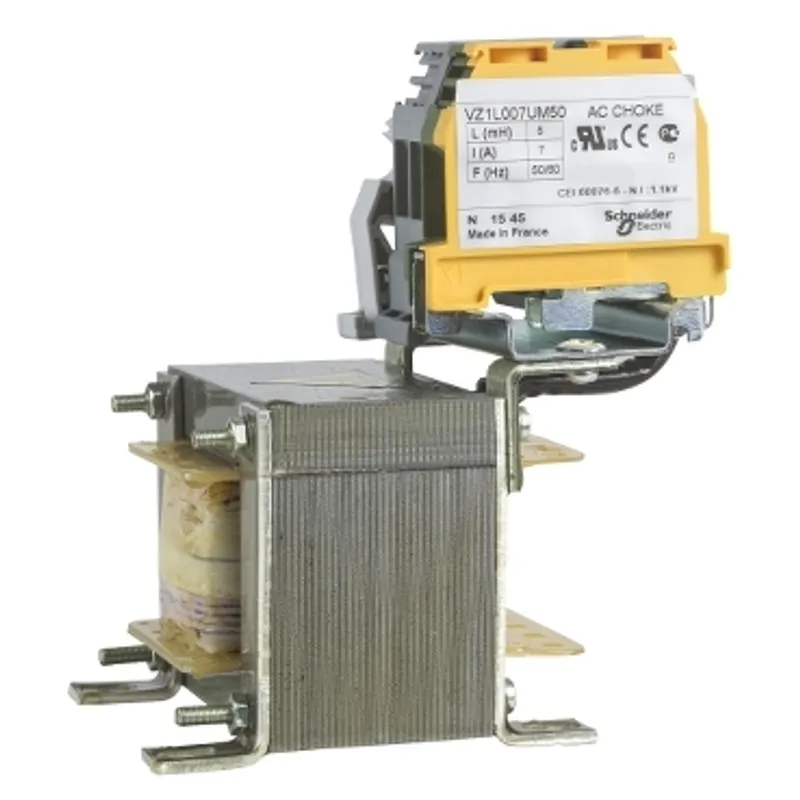

line choke - 5 mH - 7 A - 1 phase - 20 W - for variable speed drive
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Altivar 31 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.88 kg |
Shipping & availability
When can VZ1L007UM50 be shipped?
VZ1L007UM50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VZ1L007UM50 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VZ1L007UM50 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VZ1L007UM50, subject to availability and destination.
Schneider Electric line choke - 5 mH - 7 A - 1 phase - 20 W - for variable speed drive, manufacturer part number VZ1L007UM50. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Line choke |
| Product compatibility | ATV312H055M2 - line choke - 1 per drive, ATV312H075M2 - line choke - 1 per drive, ATV31C055M2 - line choke - 1 per drive, ATV31C075M2 - line choke - 1 per drive, ATV32H055M2 - line choke - 1 per drive, ATV32H075M2 - line choke - 1 per drive, LXM05D10F1 - line choke - 1 per drive, LXM05D10M2 - line choke - 1 per drive, LXM32.U45M2 - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.55 kW 200...240 V - single phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 0.75 kW 200...240 V - single phase - line choke - 1 per drive |
| number of phases | Single phase |
| Range compatibility | Lexium 32, Altivar 31C, Altivar 312, Altivar 312 Solar, Altivar Machine ATV320, Lexium 05, Altivar 32 |
| Device application | Reduction of current harmonics |
| Value of inductance | 5 mH |
| [In] rated current | 7 A |
| Thermal losses | 20 W |
| power supply frequency | 50...60 Hz |
| Maximum voltage drop at rated load | 5 % |
| Net weight | 0.88 kg |
| Width | 60 mm |
| Height | 100 mm |
| Depth | 95 mm |
| Standards | IEC 60076 (with HD398), VDE 0160 level 1, EN 50178 |
| IP degree of protection | Choke: IP00, Terminals: IP20 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.000 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 933.000 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 51.388 kg |
| Warranty (in months) | 18 |
