Schneider Electric VW3M4701

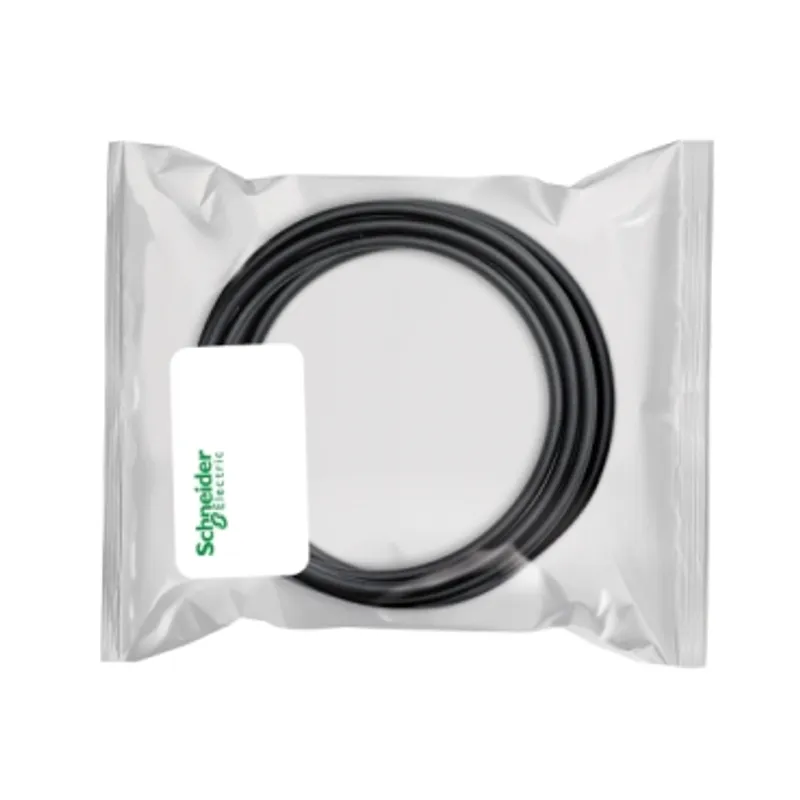

Cable for SSI serial incremental or absolute master encoders input - 1 m
- MPN
- VW3M4701
- EAN
- 3389119214551
- Category
- Modicon M258
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3M4701?
This cordset is proposed as an accessory of variable speed drives Altivar, Lexium servo drives or Modicon controllers. It is equipped with 1 x 15-way high density male SUB-D connector. It enables the connection between an encoder and digital / analog encoder modules (for drives) or a controller.
Specifications
Specifications
| Range compatibility | Lexium 32, Altivar Machine ATV340, Lexium Controller, Altivar Process ATV900 |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Product or component type | Connecting cable |
| Product compatibility | ATV340, ATV950, ATV930, LXM32, LMC |
| Accessory / separate part destination | Between SSI serial incremental or absolute master encoders input and LMC |
| Electrical connection | 1 stripped end, 1 connector |
| Connector type | 1 male SUB-D 15 |
| Cable length | 1 m |
Packaging
| Package 1 | 1 PCE, 21.000 cm × 19.000 cm × 2.000 cm (L × W × H), 131.900 g |
| Package 2 | 50 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.774 kg |
