Schneider Electric VW3M3103
Holding brake controller - 24 V DC - 50 W - IP20
- MPN
- VW3M3103
- EAN
- 3389119207829
- Category
- Lexium 28 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3M3103?

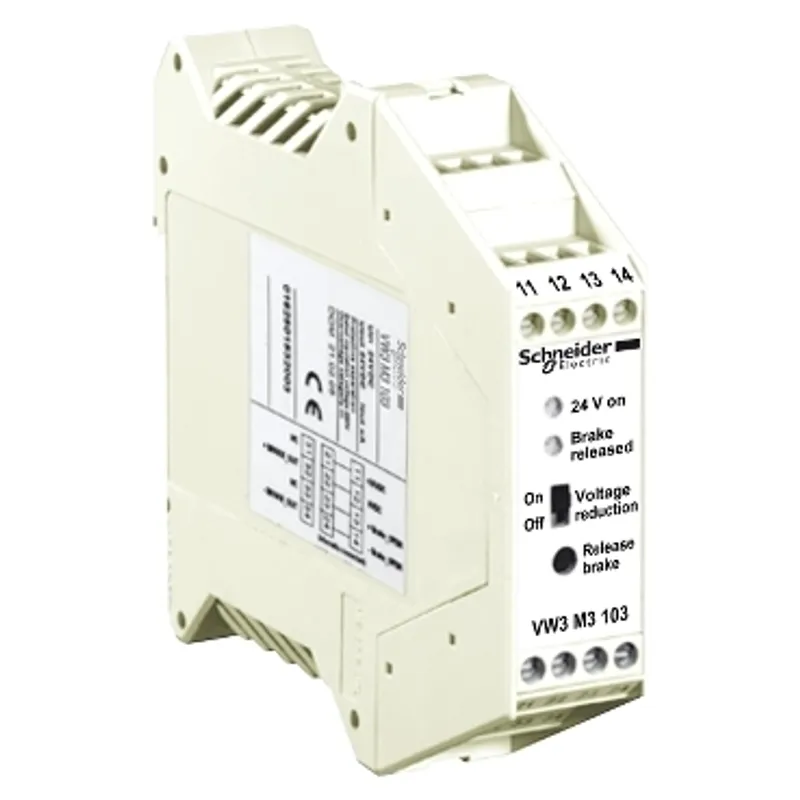

"This an holding brake controller dedicated to Lexium servo drives." "It is designed to provide a control logic. It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft (stationary)." "It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft when it is stationary." "Its power supply voltage limits are 19.2V to 30V, its input current is 0.5 A + brake nominal current, its maximum power consumption is 50W." "Its output voltage is 17V to 19V DC or 23V to 25V DC before power reduction, its maximum braking current is 1.6A, and time before voltage reduction is 1000ms." "It weighs 0.600kg." "It is designed to provide a control logic. It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft (stationary)." "It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU." "It is compatible with Easy Lexium 16 servo drives." "It is sold by one piece." "It is mounted on 55mm symmetrical DIN rail." "Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine." "Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines."
Specifications
Specifications
| Product or component type | Holding brake controller |
| Range compatibility | Lexium 28, Lexium 05 |
| Mounting support | 55 mm symmetrical DIN rail |
| power supply voltage | 24 V |
| Supply circuit type | DC |
| power supply voltage limits | 19.2…30 V |
| Input current | 0.5 A + brake nominal current |
| maximum power consumption | 50 W |
| Output voltage | 17...19 V DC, 23...25 V DC before power reduction |
| maximum braking current | 1.6 A |
| time before voltage reduction | 1000 ms |
| Net weight | 0.6 kg |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 24.000 cm × 17.500 cm × 8.000 cm (L × W × H), 289.000 g |
| Package 2 | 15 S04, 60 cm × 40 cm × 30 cm (L × W × H), 4.595 kg |
| Package 3 | 60 P06, 60.000 cm × 80.000 cm × 75.000 cm (L × W × H), 26.380 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3M3103: frequently asked questions
When can VW3M3103 be shipped?
VW3M3103 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3M3103 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3M3103 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3M3103, subject to availability and destination.
