Schneider Electric VW3A9514

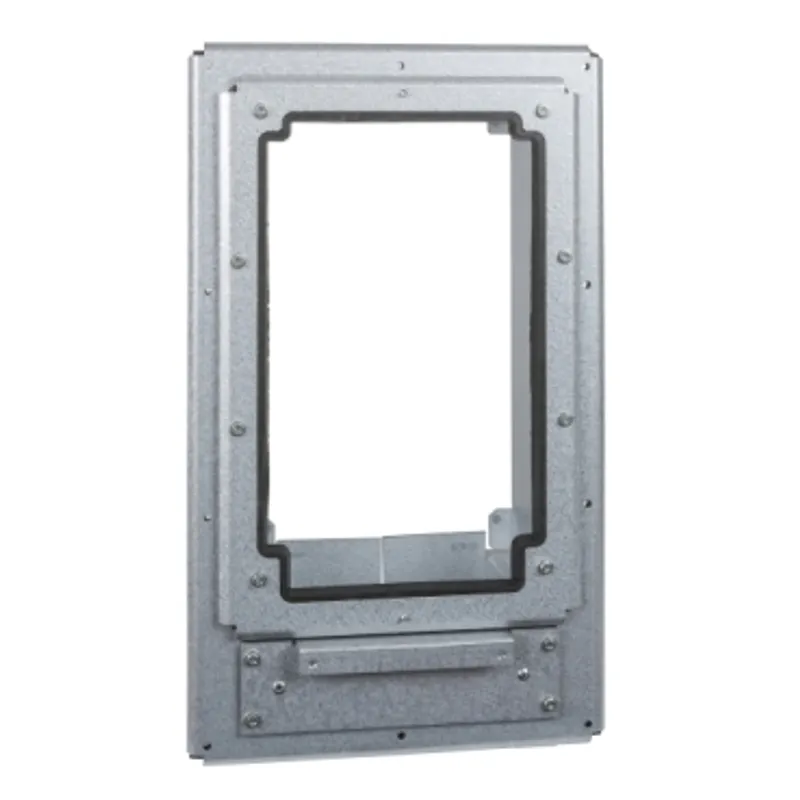

Kit for flush-mounting in a dust and damp proof enclosure - ATV61/ATV71
- MPN
- VW3A9514
- EAN
- 3389119202039
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3A9514 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A9514?
This kit can be used to mount the power section of your variable speed drive outside the enclosure. This solution considerably reduces dissipated losses in the enclosure. With this type of mounting, the maximum internal temperature in the enclosure can then reach 60°C without derating. The back of the enclosure must be drilled and cut out for this type of mounting.
Specifications
Specifications
| Range of product | Altivar |
| Accessory / separate part category | Mounting and fixing accessory |
| Accessory / separate part type | Mounting kit |
| Product compatibility | ATV61HC25N4D without braking unit, ATV61HC25Y without braking unit, ATV61HC31N4 without braking unit, ATV61HC31N4D without braking unit, ATV61HC31Y without braking unit, ATV61HC40Y without braking unit, ATV71HC20N4 without braking unit, ATV71HC20N4D without braking unit, ATV71HC20Y without braking unit, ATV71HC25N4 without braking unit, ATV71HC25N4D without braking unit, ATV71HC25Y without braking unit, ATV71HC28N4 without braking unit, ATV71HC28N4D without braking unit, ATV71HC31Y without braking unit, ATV61HC25N4, Variable speed drive ATV600 motor at 250 kW, 380...480 V, Variable speed drive ATV600 motor at 315 kW, 380...480 V, Variable speed drive ATV900 motor at 250 kW, 380...480 V, Variable speed drive ATV900 motor at 315 kW, 380...480 V |
| Accessory / separate part destination | Variable speed drive without braking unit |
| Range compatibility | Altivar 61, Altivar Process ATV600, Altivar 71, Altivar Process ATV900 |
| Product specific application | For mounting the drive power section outside the enclosure |
| Kit composition | 1 cutting and drilling template, 1 fan support, 1 user manual, 1 metal frame of the right size for drive rating, corner pieces, fixing accessories, seals |
| Net weight | 4.7 kg |
| Environmental characteristic | Dust and damp proof |
Packaging
| Package 1 | 1 PCE, 60.000 cm × 93.000 cm × 10.000 cm (L × W × H), 8.000 kg |
| Package 2 | 4 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 50.000 kg |
