Schneider Electric VW3A9513

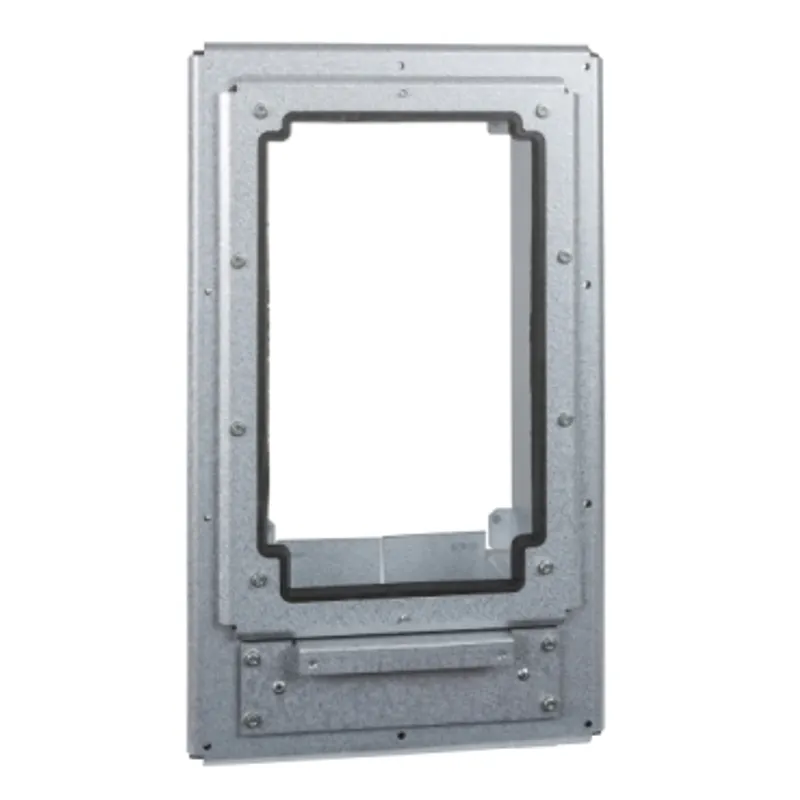

Kit for flush-mounting in a dust and damp proof enclosure - ATV61/ATV71
- MPN
- VW3A9513
- EAN
- 3389119202022
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3A9513 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A9513?
This kit can be used to mount the power section of your variable speed drive outside the enclosure. This solution considerably reduces dissipated losses in the enclosure. With this type of mounting, the maximum internal temperature in the enclosure can then reach 60°C without derating. The back of the enclosure must be drilled and cut out for this type of mounting.
Specifications
Specifications
| Range of product | Altivar |
| Accessory / separate part category | Mounting and fixing accessory |
| Accessory / separate part type | Mounting kit |
| Product compatibility | ATV61HC22N4, ATV61HC22N4D, ATV71HC16N4, ATV71HC16N4D, Variable speed drive ATV600 motor at 220 kW, 380...480 V, Variable speed drive ATV900 motor at 220 kW, 380...480 V |
| Accessory / separate part destination | Variable speed drive |
| Range compatibility | Altivar 61, Altivar Process ATV600, Altivar 71, Altivar Process ATV900 |
| Product specific application | For mounting the drive power section outside the enclosure |
| Kit composition | 1 cutting and drilling template, 1 fan support, 1 user manual, 1 metal frame of the right size for drive rating, corner pieces, fixing accessories, seals |
| Net weight | 4.7 kg |
| Environmental characteristic | Dust and damp proof |
Packaging
| Package 1 | 1 PCE, 110.000 cm × 30.000 cm × 10.000 cm (L × W × H), 9.000 kg |
| Package 2 | 10 P12, 120.000 cm × 80.000 cm × 105.000 cm (L × W × H), 101.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A9513: frequently asked questions
Can I still buy the VW3A9513 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3A9513, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VW3A9513 be shipped?
VW3A9513 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A9513 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A9513 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A9513, subject to availability and destination.
