braking resistor, Altivar, 10Ohms, 2.9kW, IP20
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Altivar Process ATV900 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 9 kg |
Shipping & availability
When can VW3A7744 be shipped?
VW3A7744 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A7744 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A7744 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A7744, subject to availability and destination.

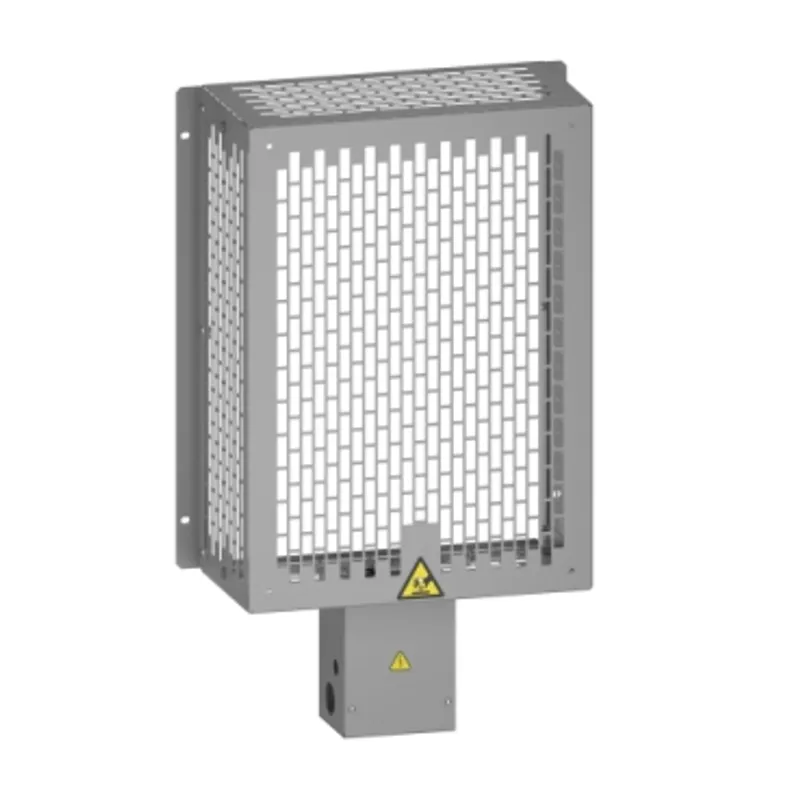

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 10Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 11.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Specifications
Specifications
| Range compatibility | Altivar Machine ATV340, Altivar Process ATV900 |
| Product or component type | Braking resistor |
| Ohmic value | 10 Ohm |
| [Ue] rated operational voltage | 24 V DC, 250 V AC |
| Product compatibility | Variable speed drive ATV930 wall mount 37 kW 380...480 V medium cycle, Variable speed drive ATV930 wall mount 45 kW 380...480 V medium cycle, Variable speed drive ATV950 wall mount 37 kW 380...480 V medium cycle, Variable speed drive ATV950 wall mount 45 kW 380...480 V medium cycle, Variable speed drive ATV930 wall mount 11 kW 200...240 V severe cycle, Variable speed drive ATV340 30 kW 380...480 V medium cycle, Variable speed drive ATV340 37 kW 380...480 V medium cycle |
| Duty cycle | Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle, Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle |
| Average power available | 2.9 kW at 50 °C |
| Electrical connection | Terminal, connection capacity: <= 35 mm² / AWG 3 for drive, terminal, connection capacity: <= 4 mm² / AWG 10 for temperature control switch |
| Protection type | Thermal protection via drive or temperature control switch at 120 °C |
| Width | 390 mm |
| Height | 640 mm |
| Depth | 180 mm |
| Net weight | 9 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | 0…50 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 26.000 cm |
| Package 1 Width | 40.000 cm |
| Package 1 Length | 65.000 cm |
| Package 1 Weight | 10.500 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 29.500 kg |
| Warranty (in months) | 18 |
