Schneider Electric VW3A7741
Braking resistor, Altivar, 60Ohms, 0.5kW, IP20
- MPN
- VW3A7741
- EAN
- 3606480802348
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A7741?

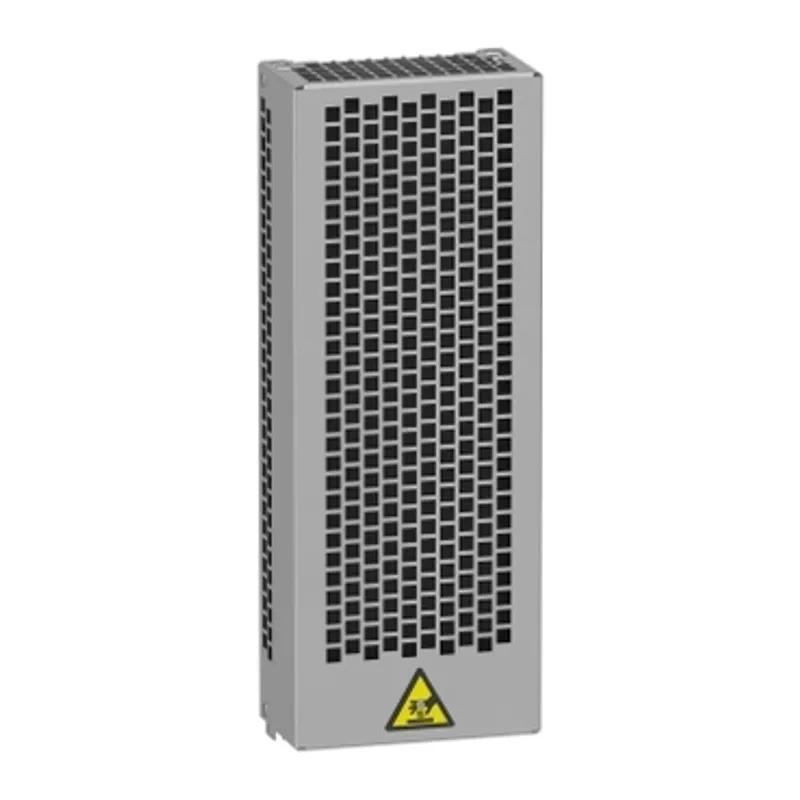

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 60Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 4.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Specifications
Specifications
| Range compatibility | Altivar Process ATV900, Altivar Machine ATV340 |
| Product or component type | Braking resistor |
| Ohmic value | 60 Ohm |
| Product compatibility | Variable speed drive ATV930 wall mount 5.5 kW 380...480 V medium cycle, Variable speed drive ATV930 wall mount 7.5 kW 380...480 V medium cycle, Variable speed drive ATV950 wall mount 5.5 kW 380...480 V medium cycle, Variable speed drive ATV950 wall mount 7.5 kW 380...480 V medium cycle, Variable speed drive ATV930 wall mount 1.5 kW 200...240 V severe cycle, Variable speed drive ATV340 4 kW 380...480 V medium cycle, Variable speed drive ATV340 5.5 kW 380...480 V medium cycle, Variable speed drive ATV930 7.5 kW 500...690 V medium cycle, Variable speed drive ATV930 11 kW 500...690 V medium cycle, Variable speed drive ATV930 10 hp 600 V medium cycle, Variable speed drive ATV930 15 hp 600 V medium cycle |
| Duty cycle | Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle, Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle |
| Average power available | 0.5 kW at 50 °C |
| Electrical connection | Terminal, connection capacity: <= 10 mm² / AWG 8 for drive |
| Protection type | Thermal protection via drive |
| Width | 175 mm |
| Height | 465 mm |
| Depth | 100 mm |
| Net weight | 3.8 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | 0…50 °C |
Packaging
| Package 1 | 1 PCE, 18.500 cm × 48.000 cm × 18.000 cm (L × W × H), 4.319 kg |
| Package 2 | 12 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 60.820 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A7741: frequently asked questions
When can VW3A7741 be shipped?
VW3A7741 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A7741 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A7741 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A7741, subject to availability and destination.
