Actassi 19-C Patch Panel Sliding Evo 19" 1U 24pt SLIM FTP/STP Empty
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for Europe |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VDIG112241F be shipped?
VDIG112241F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDIG112241F in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDIG112241F and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDIG112241F, subject to availability and destination.

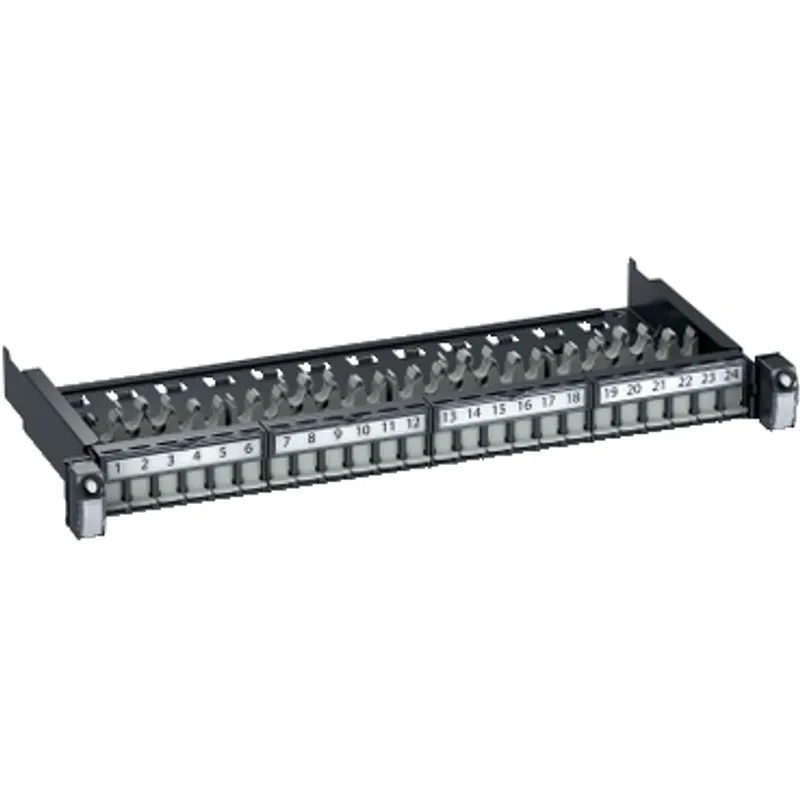

This empty sliding 19 inch copper panels contain a front configuration for 24 S-One shielded connectors in 1U height. It is equipped with one Quick Fix function on both sides to allow a simple, quick fixing position and sliding feature. Plus pre-equipped with 24 light grey shutters, 4 label holders and 1 rear cable organizer. The panel is in metal material with thickness 1.2mm and dark grey RAL 7016. It provides simple clicking connectors for mounting and automatic earthing with the pre-eqipped bus bar. The panel dimensions- Height 45mm, Width 490mm, Depth 230mm.
Specifications
Specifications
| range of product | Actassi |
| Product or component type | Empty sliding 19" data panel |
| Device presentation | Empty |
| Provided equipment | 1 rear cable organizer, 4 label holders, 2 quick fix 19" mountings, 24 light grey shutters |
| Colour | Dark grey (RAL 7016) |
| Additional information | Automatic grounding |
| Variant | Evolution |
| Number of port | 24 port of FTP/STP |
| Communication network category | 5e, 6, 6A |
| Cover type | Screened |
| Mounting support | 19" rack |
| Number of rack unit | 1U |
| Type of connector | S-One |
| Material | DC01 metal sheet 1.2 mm, PA6 plastic part, PA66 GF20 plastic part |
| Width | 0.5 m, 490 mm |
| Depth | 230 mm, 0.230 m |
| Height | 0.045 m, 45 mm |
| Net weight | 2.4 kg, 2.400 kg |
| Ambient air temperature for operation | -26…55 °C, -10…55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 26.200 cm |
| Package 1 Length | 54.700 cm |
| Package 1 Weight | 2.151 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 13.708 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 105.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 180.046 kg |
| Warranty (in months) | 18 |
