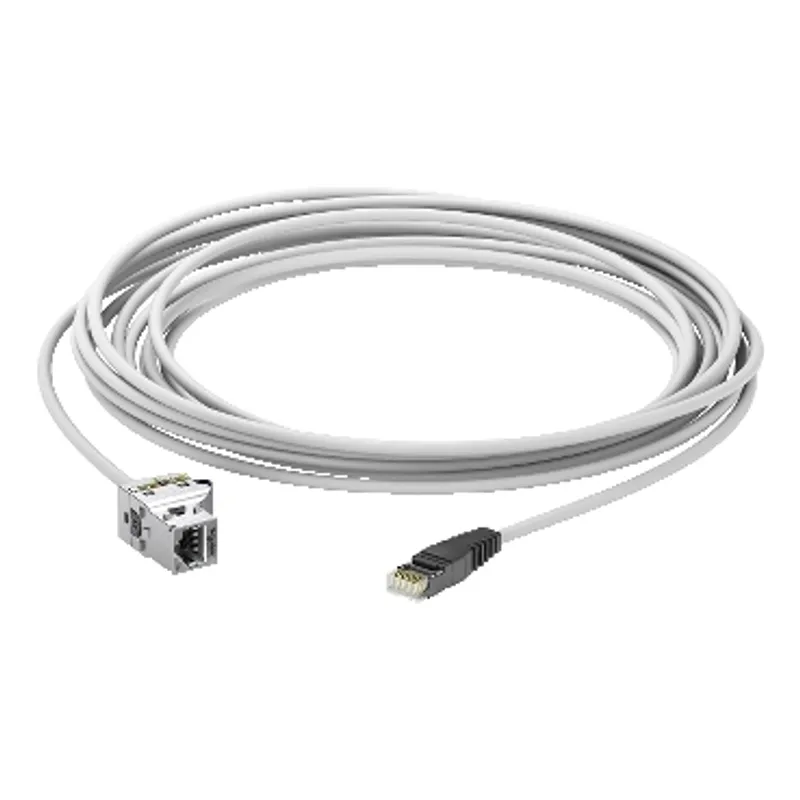

Actassi CL-MNC6A CP Cabling S/FTP Cat6A LSZH DPM 10.0m

MPN
VDICP4X01001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VDICP4X01001?

This consolidation point link is a RJ45 plug, S-One DPM RJ45, cable and is white in color. Its communication network category follows the 6A 10GBASE-T type. Being made of LSZH (low smoke zero halogen), PE (polyethylene), solid bare copper material, this consolidation point link is reliable and resistant. This consolidation point link is SVHC (substances of very high concern) free. It well satisfied the standard of EIA/TIA-568-B, EIA/TIA-568-C.2, EN 50173 Ed.3, IEC 60603-7, IEC 61156-5, ISO/IEC 11801:2011 Ed.2.2. It has a length of 10 mm. This device is sold in 1 piece. Its connector type is RJ45. It is environment-friendly, with PEP (Energy depletion) reached.

Specifications

Specifications

RangeActassi
Product or component typeConsolidation point link
ColourCP link: white (RAL 9010)
Quantity per set1 piece
Device compositionCable S/FTP, RJ45 plug STP, S-One DPM RJ45 STP
Communication network category6A
Communication network type10GBASE-T
Transmission frequency550 MHz
Input impedance100 Ohm
Connector typeRJ45
Material: jacket, Solid bare copper: conductor, PE (polyethylene): wire insulation
Length10 m
Targeted regionEurope
StandardsISO/IEC 11801:2011 Ed.2.2, EN 50173 Ed.3, EIA/TIA-568-C.2, IEC 60603-7, EIA/TIA-568-B, IEC 61156-5
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-15…60 °C
Ambient air temperature for installation-5…40 °C
Temperature resistance60 °C
Environmental characteristic: cable S/FTP, : S-One DPM network socket

Packaging

Package 11 PCE, 34.000 cm × 34.000 cm × 6.000 cm (L × W × H), 448.000 g
Package 215 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.360 kg
