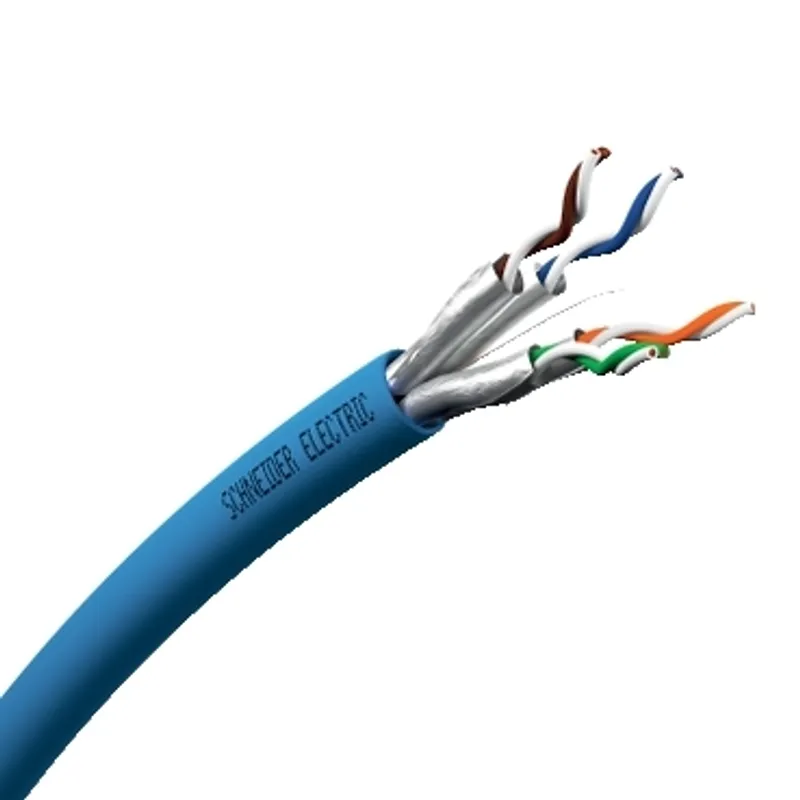

Copper LAN Cable, Actassi, U/FTP, 2x4P, Cat6A, Euroclass C, 550MHz, LSFRZH, 500m

Name: Schneider Electric VDICC62X228 – Copper LAN Cable, Actassi, U/FTP, 2x4P, Cat6A, Euroclass C, 550MHz, LSFRZH, 500m
Brand: Schneider Electric
SKU: VDICC62X228

MPN: VDICC62X228 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actassi for Europe
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1121 kg

Shipping & availability

When can VDICC62X228 be shipped?

VDICC62X228 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VDICC62X228 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VDICC62X228 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDICC62X228, subject to availability and destination.

Schneider Electric Copper LAN Cable, Actassi, U/FTP, 2x4P, Cat6A, Euroclass C, 550MHz, LSFRZH, 500m, manufacturer part number VDICC62X228. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	Actassi
Product or component type	Copper cable
Cable packaging	Drum of 500 m
Colour tint	Blue
Cable shielding type	U/FTP
Type of cable	2x4 twisted-pairs cable
Communication network category	6A
remote powering	PoE 15W (Power over Ethernet), PoE+ 30W (Power over Ethernet Plus), 4PPoE 100W (Power over Ethernet)
Communication network type	10GBASE-T
Minimum return loss	Guaranteed: 20.1 dB at 100 MHz typical: 24.2 dB, Guaranteed: 17.3 dB at 250 MHz typical: 22 dB, Guaranteed: 17.3 dB at 500 MHz typical: 20.3 dB
Attenuation	Guaranteed: 19.1 dB Typical: 17.5 dB @ 100 MHz, Guaranteed: 31.1 dB Typical: 28.4 dB @ 250 MHz, Guaranteed: 45.3 dB Typical: 41.4 dB @ 500 MHz
Power sum near-end crosstalk [PSNEXT]	Guaranteed: 62.3 dB Typical: 71.0 dB at 100 MHz, Guaranteed: 56.3 dB Typical: 64.2 dB at 250 MHz, Guaranteed: 51.8 dB Typical: 59.1 dB at 500 MHz
Attenuation to Crosstalk Ratio Far-end [ACRF]	Guaranteed: 38 dB Typical: 54.7 dB at 100 MHz, Guaranteed: 30 dB Typical: 46.6 dB at 250 MHz, Guaranteed: 24 dB Typical: 40.5 dB at 500 MHz
Power sum attenuation crosstalk ratio far-end [PSACRF]	35 dB at 100 MHz, 27 dB at 250 MHz, 21 dB at 500 MHz
Near end crosstalk [NEXT]	Guaranteed: 65.3 dB Typical: 85.5 dB at 100 MHz, Guaranteed: 59.3 dB Typical: 83.1 dB at 250 MHz, Guaranteed: 54.8 dB Typical: 60.1 dB at 500 MHz
Coupling attenuation	>= 55 dB from 30…100 MHz conforming to IEC 61156-5, ed. 2 type II, >= 55 - 20 x log10(f / 100) dB from 100…1000 MHz conforming to IEC 61156-5, ed. 2 type II
Transfer impedance	<= 50 mOhm/m at 1 MHz (grade 2), <= 1000 mOhm/m at 100 MHz (grade 2)
Input impedance	100 Ohm
Maximum loop resistance	152.2 Ohm per 1000 m
Segregation class	Class c conforming to EN 50174-2
Maximum resistance unbalance	2 %
Pulling force	240 N
Bending radius	Minimum bending radius during installation: 8 x overall diameter, Minimum bending radius after installation: 4 x overall diameter
Material	Solid bare copper: conductor, PE (polyethylene): wire insulation, Aluminium/polyester: foil, Tinned copper: drain wire, PE (polyethylene): sheath
Euroclass level	Cca s1 d1 a1
Nominal velocity propagation	76 %
linear conductor resistance	76.1 mΩ/m
AWG gauge	AWG 23
Calorific value	1228 MJ/km
Cable outer diameter	8.1 mm
Width	16.2 mm
Cable length	500 m
Cable weight	112 kg / 1 km
Ambient air temperature for installation	0…50 °C
Ambient air temperature for storage	-20…60 °C
Ambient air temperature for operation	-20…60 °C
Directives	2006/95/EC - low voltage directive, 305/2011/EU - construction product regulation
Flame retardance	LSFRZH
Standards	ISO/IEC 11801-ed. 3 performance, EN 50173-1 performance, EN 50174-1 performance, ANSI/TIA/EIA-568-C.2 performance, IEC 61156-5-ed. 2.1 performance, EN 50288-10-1 performance, ISO/IEC 14763-2 installation standards, EN 50174-2 installation standards, IEC 60332-1 flame propagation characteristics, IEC 60332-3C fire resistance, IEC 60754-1, IEC 60754-2 acidity of combustion gases, IEC 61034 smoke generation
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	33.000 cm
Package 1 Width	60.000 cm
Package 1 Length	60.000 cm
Package 1 Weight	57.000 kg
Unit Type of Package 2	P12
Number of Units in Package 2	4
Package 2 Height	106.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	228.000 kg
Warranty (in months)	18
