Schneider Electric VDIB502301U

Q: When can VDIB502301U be shipped?

VDIB502301U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up VDIB502301U in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for VDIB502301U and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDIB502301U, subject to availability and destination.

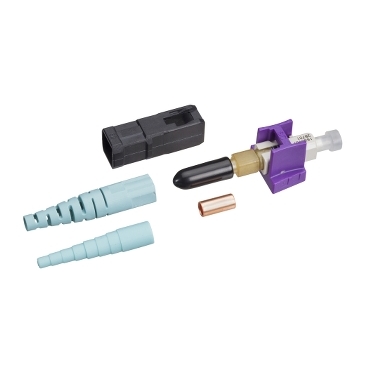

Actassi FL-C Fibre Optic Connector Unicam OM3/OM4 50/125 SC

MPN: VDIB502301U
Category: Actassi for Europe

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VDIB502301U?

This SC Unicam optic connector with multimode OM4 optical performance. It is suitable for quick and easy direct termination with tight buffered fibre optic cables inside optic patchpanels and/or at workstation. Installer uses less than 1 minute to connect a connector to a tight buffered fibre. It does not require polishing unlike other no epoxy connectors. Controlled endface processing is part of the factory process. It is zirconia ceramic material ferrules, beige colored housing and boots. The Unicam connector can best be described as a mini pigtail. It incorporates a factory installable fibre stub that is fully bonded into the ferrule. The other end of the fibre is precisely cleaved and placed into the patented alignment mechanism of our mechanical splice. Both the field fibre and fibre stub are fully protected from environmental factors.

Specifications

Range	Actassi
Product or component type	Unicam multimode fibre optic connector
Colour	Housing: black, Boot: aqua
Type of packing	Bag
Quantity per set	1
Product compatibility	For 50/125 µm optical fibre
Maximum insertion loss	<0.1 dB
Fibre performance	OM3, OM4
Connector type	SC
Material	Ceramic: ferrule, Composite: connector
Targeted region	Europe
Ambient air temperature for operation	-40…75 °C
Ambient air temperature for storage	-40…75 °C
Standards	SC connector: TIA/EIA-604-3, ISO/IEC 11801:2011 Ed.2.2, IEC 61754-4 Ed.2

Packaging

Package 1	1 PCE, 6 cm × 3 cm × 1 cm (L × W × H), 5 g
Package 2	100 S02, 40 cm × 30 cm × 15 cm (L × W × H), 863 g
