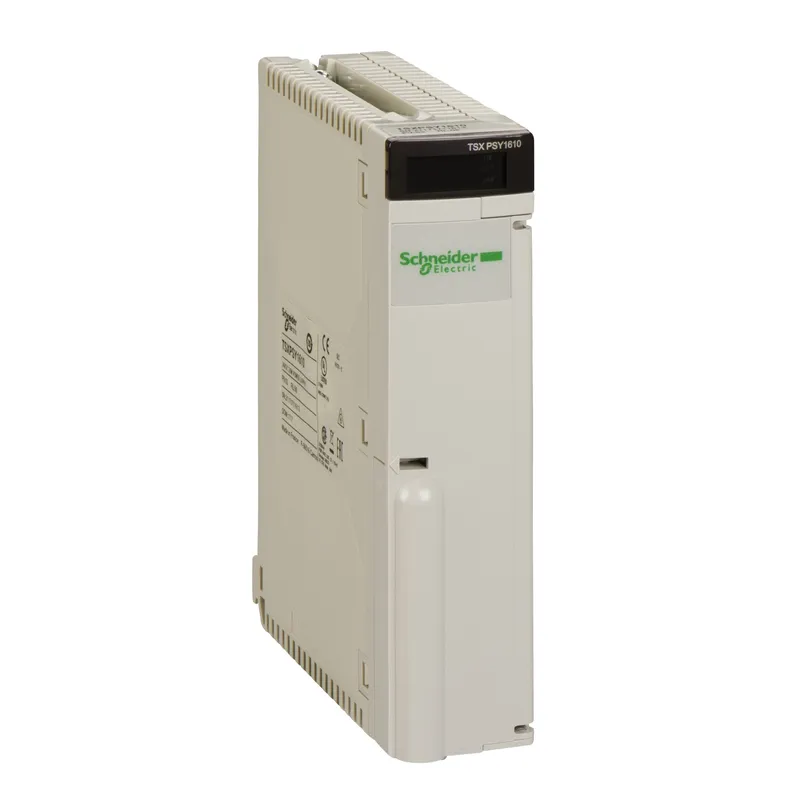

Schneider Electric TSXPSY1610M
Power supply module - 24 V DC - <= 1500 mA - IP20
- MPN
- TSXPSY1610M
- EAN
- 3389110725599
- Category
- Modicon Premium
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXPSY1610M (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXPSY1610M?
Schneider Electric TSXPSY1610M — power supply module - 24 V DC - <= 1500 mA - IP20 (Modicon Premium). Discontinued by Schneider Electric; the manufacturer's successor is BMXCPS2010. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Power supply module |
Complementary
| Primary voltage | 24 V DC 19.2...30 V |
| Input current | <= 1500 mA 24 V |
| Inrush current | 100 A 24 V |
| I²t on activation | 12.5 A².s |
| It on activation | 0.2 A.s |
| Protection type | Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit; Overload protection secondary circuit; Overvoltage protection secondary circuit; Short-circuit protection secondary circuit |
| Total useful secondary power | 30 W |
| Secondary power | 15 W 24 V DC; 15 W 5 V DC |
| Current at secondary voltage | 0.6 A 24 V DC relay power supply; 3 A 5 V DC |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of voltages (OK); 1 LED (red) for battery fault (BAT) |
| Module format | Standard |
| Net weight | 0.54 kg |
Environment
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 2000 V primary/earth; 2000 V primary/secondary |
| Standards | 93/68/EEC; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 142; CSA C22.2 No 213 Class I Division 2 Group C; IEC 61131-2; UL 508; CSA C22.2 No 213 Class I Division 2 Group A; 92/31/EEC; 73/23/EEC; CSA C22.2 No 213 Class I Division 2 Group D; 89/336/EEC |
| Product certifications | RMRS; LR; ABS; RINA; BV; GL; DNV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TSXPSY1610M: frequently asked questions
Can I still buy the TSXPSY1610M now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXPSY1610M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXCPS2010 as its successor — we can quote both.
When can TSXPSY1610M be shipped?
TSXPSY1610M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXPSY1610M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXPSY1610M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXPSY1610M, subject to availability and destination.
