Schneider Electric TSXPBY100C
Profibus DP V0 - module kit - for Premium PLC - coated
- MPN
- TSXPBY100C
- EAN
- 3595863967760
- Category
- Modicon Premium
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXPBY100C (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXPBY100C?
Schneider Electric TSXPBY100C — Profibus DP V0 - module kit - for Premium PLC - coated (Modicon Premium). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Profibus DP |
| Product or component type | Profibus DP V0 module kit |

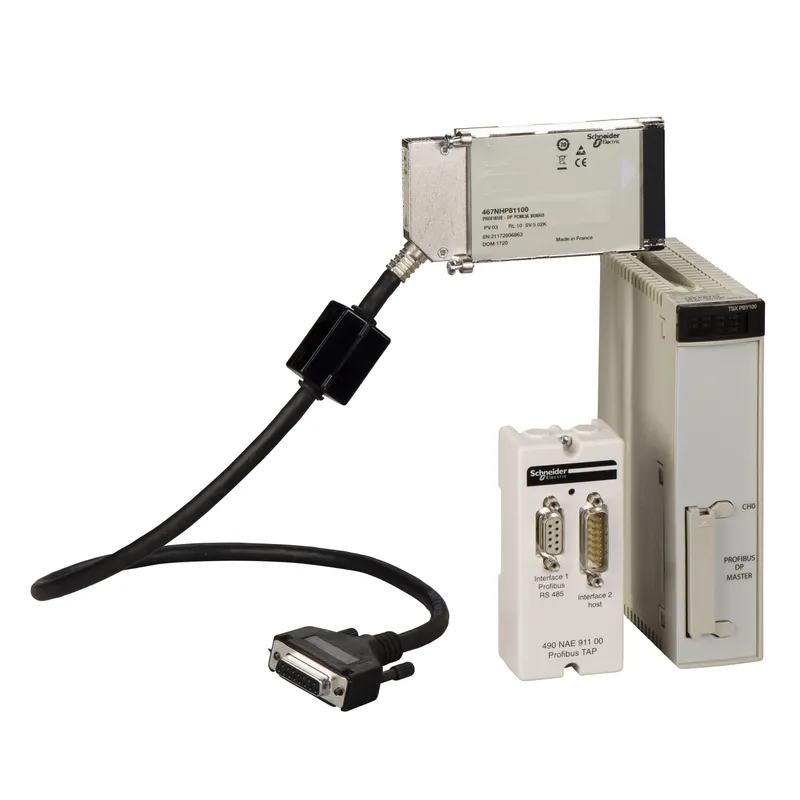

| Kit composition | Host module for the PCMCIA card; Profibus DP PCMIA card with its integrated connecting cable (0.6 m); T-junction box enabling the tap link of the main bus |
| Product compatibility | For Premium PLC; For Atrium slot-PLC |
| Structure type | Industrial bus |
Complementary
| Physical interface | RS485 |
| Method of access | Master class 1; Master class 2 |
| Mode of transmission | NRZ |
| Transmission support medium | twisted shielded pairs cable |
| Transmission rate | 12 Mbit/s, 100 m bus without repeater; 12 Mbit/s, 400 m bus with 3 repeaters; 9.6 kbit/s, 1200 m bus without repeater; 9.6 kbit/s, 4800 m bus with 3 repeaters |
| Number of server device(s) | 126 |
| Number of inputs | 3872 |
| Number of outputs | 3872 |
| Communication service | Check slave configuration (on power up) class 1 master; Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master; No master/master dialogue class 2 master; Profibus FMS message handling not supported class 1 master; Profibus FMS message handling not supported class 2 master; Read/write DP slave I/O data class 1 master; Set slave parameters (on power up) class 1 master; Transfer slave diagnostic data class 1 master |
| Current consumption | 400 mA at 5 V DC internal |
| Module format | Standard |
| Net weight | 0.87 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | <= 2000 m |
| Protective treatment | Conformal coating Humiseal 1A33 |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TSXPBY100C: frequently asked questions
Can I still buy the TSXPBY100C now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXPBY100C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXPBY100C be shipped?
TSXPBY100C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXPBY100C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXPBY100C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXPBY100C, subject to availability and destination.
