Schneider Electric TSXPBY100 – Profibus DP V0 - module kit - for Premium PLC

Name: Schneider Electric TSXPBY100 – Profibus DP V0 - module kit - for Premium PLC
Brand: Schneider Electric
SKU: TSXPBY100

MPN: TSXPBY100 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXPBY100 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3389110105438
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXPBY100 now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXPBY100, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TSXPBY100 be shipped?

TSXPBY100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXPBY100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXPBY100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXPBY100, subject to availability and destination.

Schneider Electric TSXPBY100 — Profibus DP V0 - module kit - for Premium PLC (Modicon Premium). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Profibus DP
Product or component type	Profibus DP V0 module kit

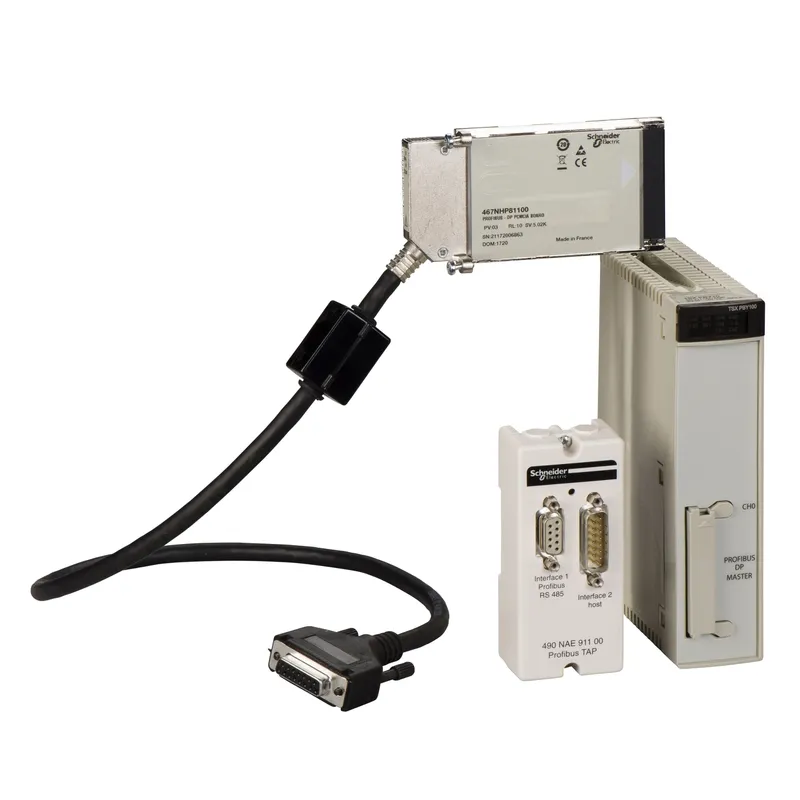

Kit composition	Host module for the PCMCIA card; T-junction box enabling the tap link of the main bus; Profibus DP PCMIA card with its integrated connecting cable (0.6 m)
Product compatibility	For Atrium slot-PLC; For Premium PLC
Structure type	Industrial bus

Complementary

Physical interface	RS485
Method of access	Master class 1; Master class 2
Mode of transmission	NRZ
Transmission support medium	twisted shielded pairs cable
Transmission rate	12 Mbit/s, 100 m bus without repeater; 12 Mbit/s, 400 m bus with 3 repeaters; 9.6 kbit/s, 1200 m bus without repeater; 9.6 kbit/s, 4800 m bus with 3 repeaters
Number of server device(s)	126
Number of inputs	3872
Number of outputs	3872
Communication service	Check slave configuration (on power up) class 1 master; Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master; No master/master dialogue class 2 master; Profibus FMS message handling not supported class 1 master; Profibus FMS message handling not supported class 2 master; Read/write DP slave I/O data class 1 master; Set slave parameters (on power up) class 1 master; Transfer slave diagnostic data class 1 master
Current consumption	400 mA at 5 V DC internal
Module format	Standard
Net weight	0.87 kg

Environment

Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	5…95 % without condensation
Operating altitude	<= 2000 m
