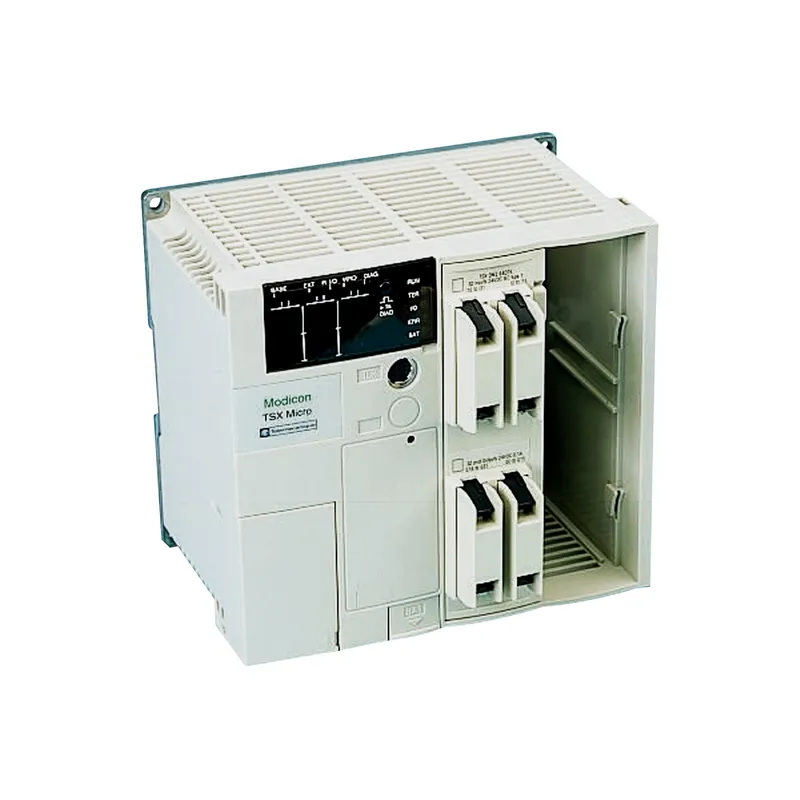

Schneider Electric TSX3710028AR1 – TSX Micro 37 10 PLC configurations

Name: Schneider Electric TSX3710028AR1 – TSX Micro 37 10 PLC configurations
Brand: Schneider Electric
SKU: TSX3710028AR1

MPN: TSX3710028AR1 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSX3710028AR1 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon TSX Micro
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389110766318
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSX3710028AR1 now that it is discontinued?

Yes. Schneider Electric has discontinued the TSX3710028AR1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TSX3710028AR1 be shipped?

TSX3710028AR1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSX3710028AR1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSX3710028AR1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSX3710028AR1, subject to availability and destination.

Schneider Electric TSX3710028AR1 — TSX Micro 37 10 PLC configurations (Modicon TSX Micro). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon TSX Micro automation platform
Product or component type	Modular base controller
Primary voltage	100...240 V 90…264 V AC
Input current	2 mA 60 A
Immunity to microbreaks	20 ms
Output current	0.5 A

Complementary

Number of slots	2
Module type	Screw terminal discrete I/O
Discrete input number	16 discrete input(s) at 115 V for AC
Discrete output number	12 for relay
Integrated connection type	1 serial link Uni-Telway 19.2 kbit/s; 1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock	With
Memory description	Internal RAM 14 Kwords data; Flash 15 Kwords data
Maximum size of object areas	256 %Mi; 1 %MWi internal words; 128 %KWi constant words
Execution time per instruction	0.25 µs Boolean without PCMCIA card; 4.81 µs arithmetic REAL floating without PCMCIA card
Execution time for 1 Kinstruction	3.03 100 % Boolean without PCMCIA card; 0.25 65 % Boolean and 35 % numerical without PCMCIA card
Application structure	8 event tasks; 1 master task; 1 fast task
System overhead	1.9 ms for master task
Protection type	Short-circuit; Overload protection
Network frequency	50...60 Hz
Total useful secondary power	24 W
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 1000-4-2 level 3; Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3; Resistance to fast transient conforming to IEC 1000-4-4 level 3; Immunity to impulse waves conforming to IEC 1000-4-5; Damped oscillatory wave conforming to IEC 1000-4-12; Immunity to electromagnetic interference conforming to IEC 61131-2

Environment

Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for operation
Operating altitude	0...2000 m
Width	282.7 mm
Height	151 mm
Depth	152 mm
Net weight	1.91 kg
