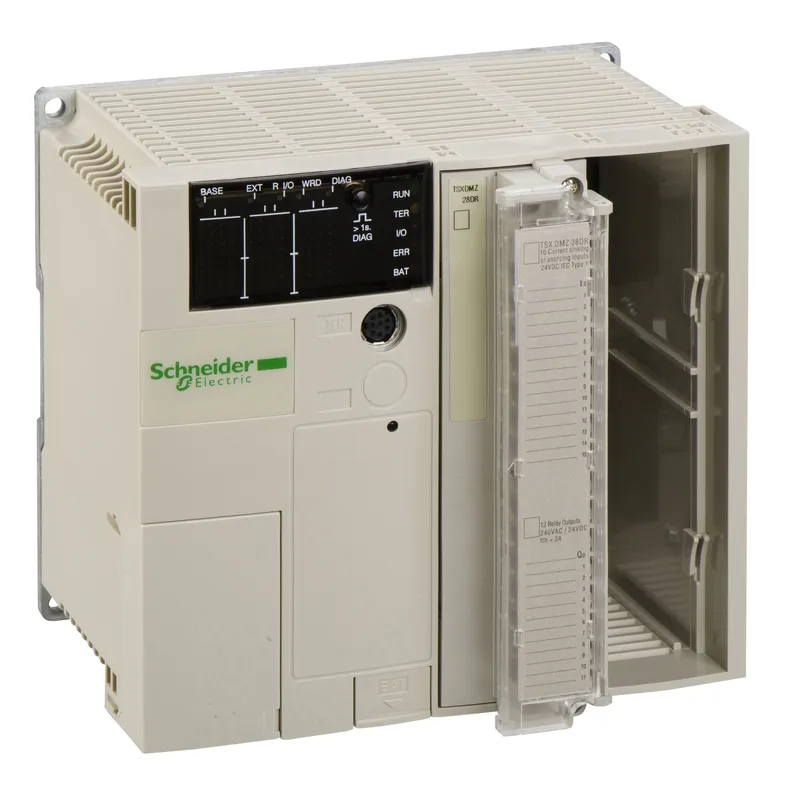

Schneider Electric TSX3708056DR1 – TSX Micro 37 05/08 PLC configurations
Discontinued by Schneider Electric — we can still source the original TSX3708056DR1 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TSX Micro |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110184495 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSX3708056DR1 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSX3708056DR1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSX3708056DR1 be shipped?
TSX3708056DR1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSX3708056DR1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSX3708056DR1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSX3708056DR1, subject to availability and destination.
This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This modular base controller has 3 slots, 32 discrete inputs and 24 relay outputs. It is a modular base controller with a primary voltage of 100V to 240V, 90V to 264V AC and 0.5A output current. Integrated connections are 1 serial link Uni-Telway 19.2kbps and 1 Modbus RTU 19.2kbps. Its dimensions are 244.9mm (width) x 152mm (depth) x 151mm (height) and weighs 2.72kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90…264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Output current | 0.5 A |
Complementary
| Number of slots | 3 |
| Module type | Screw terminal discrete I/O |
| Discrete input number | 32 discrete input(s) at 24 V for DC |
| Discrete output number | 24 for relay |
| Integrated connection type | 1 serial link Uni-Telway 19.2 kbit/s; 1 Modbus Modbus RTU 19.2 kbit/s |
| Memory description | Internal RAM 11 Kwords data; Flash 12 Kwords data |
| Maximum size of object areas | 256 %Mi; 128 %KWi constant words; 1 %MWi internal words |
| Execution time per instruction | 0.25 µs Boolean without PCMCIA card; 4.81 µs arithmetic REAL floating without PCMCIA card |
| Execution time for 1 Kinstruction | 3.03 100 % Boolean without PCMCIA card; 0.25 65 % Boolean and 35 % numerical without PCMCIA card |
| Application structure | 1 master task; 1 fast task; 8 event tasks |
| System overhead | 1.9 ms for master task |
| Protection type | Overload protection; Short-circuit |
| Network frequency | 50...60 Hz |
| Total useful secondary power | 24 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3; Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3; Resistance to fast transient conforming to IEC 1000-4-4 level 3; Immunity to impulse waves conforming to IEC 1000-4-5; Damped oscillatory wave conforming to IEC 1000-4-12; Immunity to electromagnetic interference conforming to IEC 61131-2 |
Environment
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for operation |
| Operating altitude | 0...2000 m |
| Width | 244.9 mm |
| Height | 151 mm |
| Depth | 152 mm |
| Net weight | 2.72 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSX3708056DR1 |
