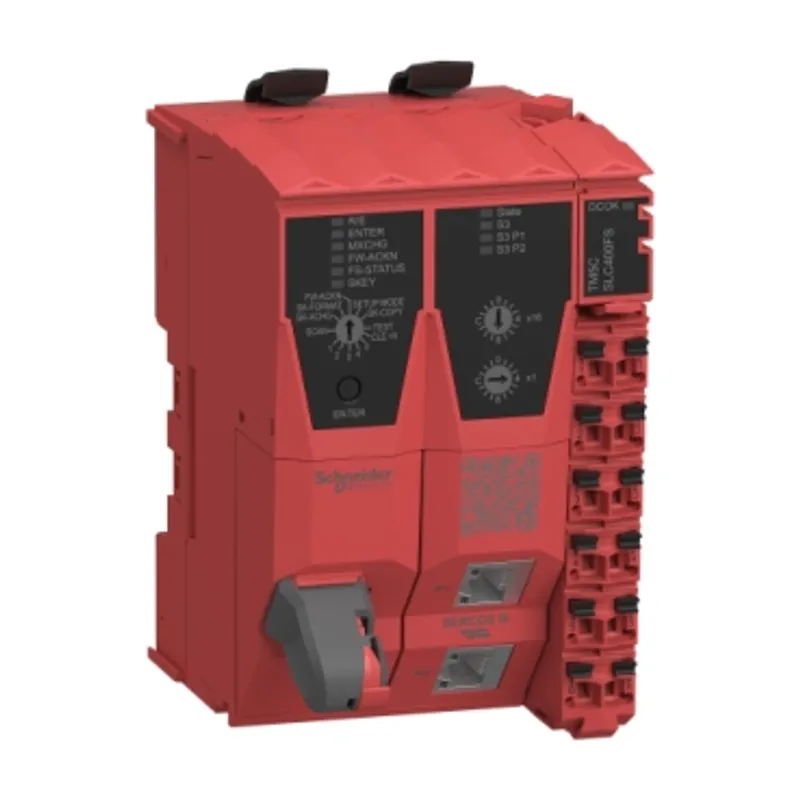

Schneider Electric TM5CSLC400FS
Controller system, Modicon TM5 Safety, Safe logic CPU, SERCOS III interface, 100 nodes
- MPN
- TM5CSLC400FS
- EAN
- 3606485823850
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TM5CSLC400FS?
This product is part of the Modicon TM5 range, an High-Performance and Safety-related IP20 Modular I/O System. This safe logic controller has reverse polarity protection, and a 24V DC power supply. This safety controller has integrated fuse (not interchangeable) input protection with fanless cooling. Its power consuption reaches 4.3W. It offers SERCOS III (Ethernet) communication network with 100Mbps data transmission rate for the full duplex bus length, with 2 integrated shielded RJ45 ports. It supports maximum 20 safety nodes in a network system. Its cycle time can be configured 1, 2 and 4ms. It reaches Category 4 of safety performance level conforming to EN ISO 13849, and SIL 3 safety integrity level according to IEC 62061. It is an IP20 rated product. Its power consuption reaches 4.3W. The housing colour is red. Its dimensions are 62.5mm (width) x 75mm (depth) x 99mm (height). It weighs 0.208kg. It is an IP20 rated product. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by EN 62061, EN ISO 13849-1, IEC 61508 standards, CSA, Class I, Div. 2, cULus, and marked CE and UKCA. This safety logic controller is compatible with Modicon M262 and PacDrive 3 LMC motion controllers, communicating on SERCOS III bus, and a dedicated memory key. This safety plc is installed by mounting on a 35mm DIN rail. TM5 modular IO system provides a flexible and scalable configuration of remote or distributed safety-related IO islands by connection with Modicon and PacDrive 3 motion controllers. Modicon TM5 IP20 modular safety-related IO system, distributed digital, analog, counter and safety-related power supply.
Specifications
Specifications
| Range of product | Modicon TM5 |
| Product or component type | Controller system |
| Device application | Safety logic controller |
| Reverse polarity protection | Yes |
| Communication network type | SERCOS III (Ethernet) |
| Transmission rate | 100 Mbit/s for full duplex |
| Cycle time | 1 ms |
| Realtime clock | With non-volatile memory |
| Number of devices | 2 shielded RJ45, 1 memory key slot |
| Function available | Support max 100 safety nodes |
| Maximum cable distance between devices | 100 m between station |
| Rated voltage | 24 V -15...20 % |
| Input protection type | Integrated fuse (not interchangeable) |
| Power consumption in W | 4.3 W |
| Type of cooling | Fanless |
| Marking | CE |
| Safety level | SIL 3 conforming to IEC 61508, SIL 3 conforming to IEC 62061, PL = e conforming to ISO 13849-1 category 4 |
| Safety reliability data | PFD < 1E-5, PFH < 1E-9, MTTFd > 100 years |
| Local signalling | 1 LED (green or orange) for application run or machine expert - safety debug mode, 1 LED (green) for authorization status, 1 LED (orange) for configuration status (Ready), 1 LED (orange) for firmware status, 1 LED (red) for boot status / FS status, 1 LED (orange) for memory key status |
| Colour | Red |
| Width | 62.5 mm |
| Height | 99 mm |
| Depth | 75 mm |
| Net weight | 0.208 kg |
| Ambient air temperature for operation | 0…45 °C (vertical installation), 0…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 |
| Operating altitude | 0...2000 m |
| Standards | EN 13849-1, IEC 61131-2, IEC 61508, IEC 61511, IEC 62061 |
| Product certifications | cULus |
Packaging
| Package 1 | 1 PCE, 17.200 cm × 12.000 cm × 10.800 cm (L × W × H), 309.000 g |
| Package 2 | 9 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.392 kg |
