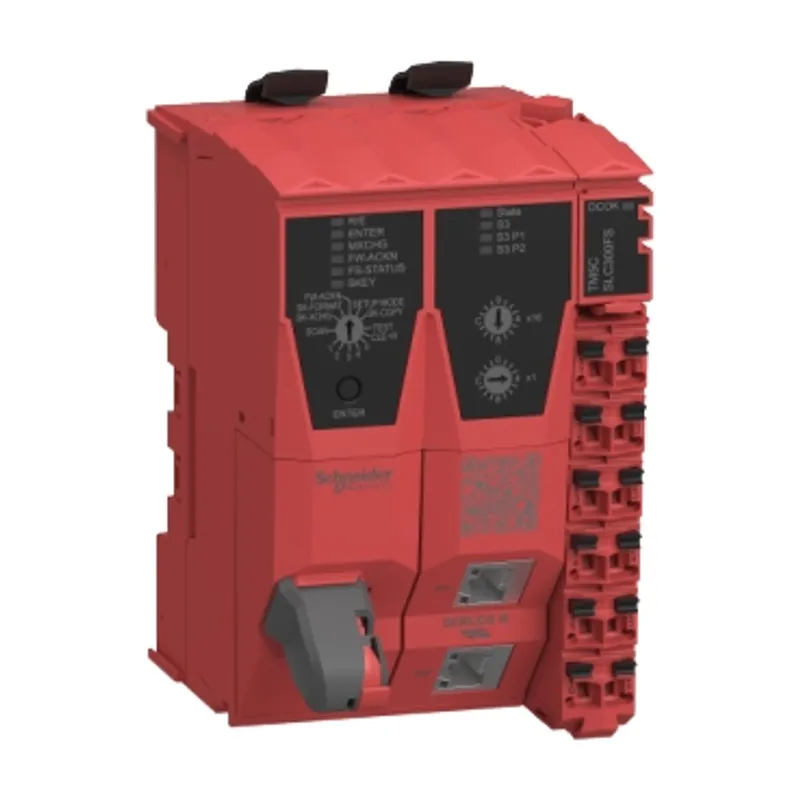

Schneider Electric TM5CSLC300FS

Controller system, Modicon TM5 Safety, Safe logic CPU, SERCOS III interface, 20 nodes

MPN: TM5CSLC300FS
EAN: 3606485823843
Category: Modicon TM5 IP20 modular I/O system

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM5CSLC300FS?

This product is part of the Modicon TM5 range, an High-Performance and Safety-related IP20 Modular I/O System. This safe logic controller has reverse polarity protection, and a 24V DC power supply. This safety controller has integrated fuse (not interchangeable) input protection with fanless cooling. Its power consuption reaches 4.3W. It offers SERCOS III (Ethernet) communication network with 100Mbps data transmission rate for the full duplex bus length, with 2 integrated shielded RJ45 ports. It supports maximum 20 safety nodes in a network system. Its cycle time can be configured 1, 2 and 4ms. It reaches Category 4 of safety performance level conforming to EN ISO 13849, and SIL 3 safety integrity level according to IEC 62061. It is an IP20 rated product. Its power consuption reaches 4.3W. The housing colour is red. Its dimensions are 62.5mm (width) x 75mm (depth) x 99mm (height). It weighs 0.208kg. It is an IP20 rated product. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by EN 62061, EN ISO 13849-1, IEC 61508 standards, CSA, Class I, Div. 2, cULus, and marked CE and UKCA. This safety logic controller is compatible with Modicon M262 and PacDrive 3 LMC motion controllers, communicating on SERCOS III bus, and a dedicated memory key. This safety plc is installed by mounting on a 35mm DIN rail. TM5 modular IO system provides a flexible and scalable configuration of remote or distributed safety-related IO islands by connection with Modicon and PacDrive 3 motion controllers. Modicon TM5 IP20 modular safety-related IO system, distributed digital, analog, counter and safety-related power supply.

Specifications

Range of product	Modicon TM5
Product or component type	Controller system
Device application	Safety logic controller
Reverse polarity protection	Yes
Communication network type	SERCOS III (Ethernet)
Transmission rate	100 Mbit/s for full duplex
Cycle time	1 ms
Realtime clock	With non-volatile memory
Number of devices	2 shielded RJ45, 1 memory key slot
Function available	Support max 20 safety nodes
Maximum cable distance between devices	100 m between station
Rated voltage	24 V -15...20 %
Input protection type	Integrated fuse (not interchangeable)
Power consumption in W	4.3 W
Type of cooling	Fanless
Marking	CE
Safety level	SIL 3 conforming to IEC 61508, SIL 3 conforming to IEC 62061, PL = e conforming to ISO 13849-1 category 4
Safety reliability data	PFD < 1E-5, PFH < 1E-9, MTTFd > 100 years
Local signalling	1 LED (green or orange) for application run or machine expert - safety debug mode, 1 LED (green) for authorization status, 1 LED (orange) for configuration status (Ready), 1 LED (orange) for firmware status, 1 LED (red) for boot status / FS status, 1 LED (orange) for memory key status
Colour	Red
Width	62.5 mm
Height	99 mm
Depth	75 mm
Net weight	0.208 kg
Ambient air temperature for operation	0…45 °C (vertical installation), 0…55 °C (horizontal installation)
Ambient air temperature for storage	-25…70 °C
Relative humidity	5…95 % without condensation
IP degree of protection	IP20
Operating altitude	0...2000 m
Standards	EN 13849-1, IEC 61131-2, IEC 61508, IEC 61511, IEC 62061
Product certifications	cULus

Packaging

Package 1	1 PCE, 17.000 cm × 11.500 cm × 10.500 cm (L × W × H), 310.000 g
Package 2	9 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.347 kg
