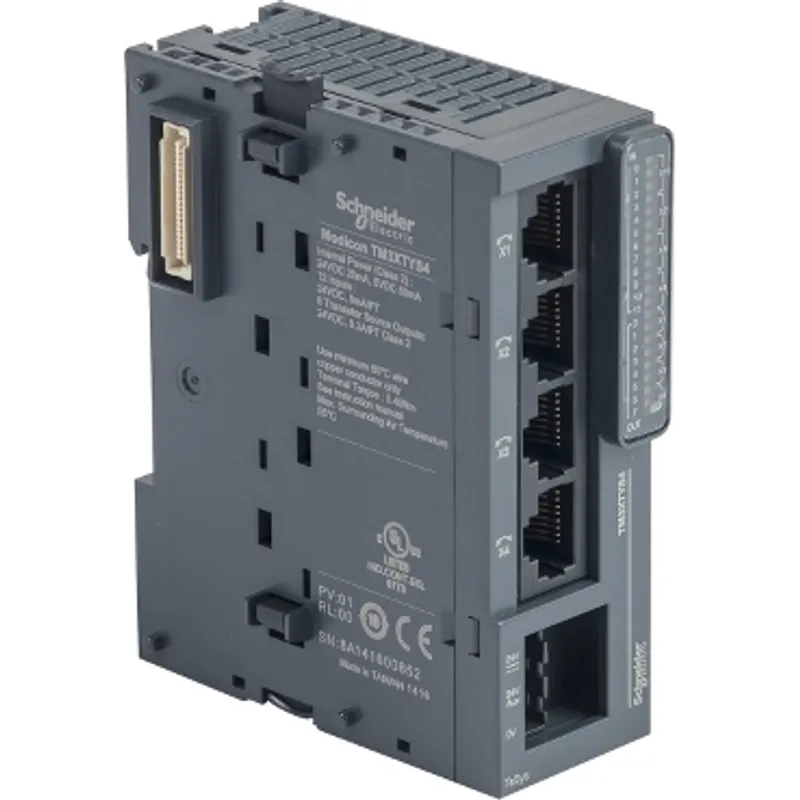

parallel interface module, Modicon TM3, 4 Tesys motors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TM3 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.12 kg |
Shipping & availability
When can TM3XTYS4 be shipped?
TM3XTYS4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM3XTYS4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM3XTYS4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM3XTYS4, subject to availability and destination.
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The parallel interface module provides 12 input channels, 8 transistor output channels. It is an interface module with a rated supply voltage of 24V DC, a current consumption of 1200A and an output voltage of 24V DC. There is an insulation between the RJ45 connectors and internal logic at 500V AC and non-insulated between RJ45 connectors. It is furnished with four RJ45 connector for connecting the motor starters and removable screw terminal for electrical connection. It is an IP20 rated product. Its dimensions are 30mm (Width) x 85mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Specifications
Specifications
| Range of product | Modicon TM3 |
| Product or component type | Parallel interface module |
| Product specific application | TeSys U |
| [Us] rated supply voltage | 24 V DC by external supply (- 15...20 %) |
| Number of input channels | 12 |
| Number of output channels | 8 |
| Range compatibility | Modicon M221, Modicon M251, Modicon M241, Modicon M262 |
| Current consumption | 5 mA at 5 V DC via bus connector at state on, 35 mA at 5 V DC via bus connector at state off, 0 mA at 24 V DC via bus connector at state on, 10 mA at 24 V DC via bus connector at state off, 1200 mA at 24 V DC external power supply at state on |
| Input voltage limits | 19.2...28.8 V per input |
| Input current limits | 5 mA per input |
| Response time | < 10 ms turn-on for input, < 10 ms turn-off for input |
| Output voltage | 24 V DC for transistor output |
| Maximum load current | 800 mA per channel in starting mode during 100 ms, 300 mA per channel in normal mode |
| Insulation | Between the RJ45 connectors and internal logic at 500 V AC, Non-insulated between RJ45 connectors |
| Output protection type | Against overload, protection technology: current limiter |
| Reset | Automatic reset |
| Local signalling | 3 LEDs green for input status per channel, 2 LEDs green for output status per channel |
| Electrical connection | 3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply, 4 RJ45 connectors for connecting the motor starters |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 85 mm |
| Width | 30 mm |
| Net weight | 0.115 kg |
| DC supply voltage | 24 V |
| Product certifications | CE, cULus, UKCA, RCM, EAC |
| Marking | CE |
| Resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients | 1 kV for input conforming to EN/IEC 61000-4-4, 1 kV for output conforming to EN/IEC 61000-4-4 |
| Surge withstand | 1 kV input common mode conforming to EN/IEC 61000-4-5, 1 kV output common mode conforming to EN/IEC 61000-4-5 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011, Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
| Ambient air temperature for operation | -10…35 °C vertical installation, -10…55 °C horizontal installation |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail, 3 gn at 8.4…150 Hz on DIN rail, 3.5 mm at 5…8.4 Hz on panel, 3 gn at 8.4…150 Hz on panel |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 215.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.000 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 80.000 cm |
| Package 3 Width | 105.000 cm |
| Package 3 Length | 125.000 cm |
| Package 3 Weight | 62.296 kg |
| Warranty (in months) | 18 |
