Modicon TM3 Parts

Schneider Electric

TM3RDM32R

Discrete I/O module, Modicon TM3, 32 IO (16 digital inputs, 16 digital outputs, screw)

Schneider Electric

TM3AI2H

Modicon TM3 - 2 analog inputs high resolution (screw) 24Vdc

Schneider Electric

TM3RDM16R

Discrete I/O module, Modicon TM3, 16 IO (8 digital inputs, 8 digital outputs, screw)

Schneider Electric

TM3TI4DG

Analog input module, Modicon TM3, 4 temperature differential inputs, spring, 24V DC

Schneider Electric

TM3TI4D

Analog input module, Modicon TM3, 4 temperature differential inputs, screw, 24V DC

Schneider Electric

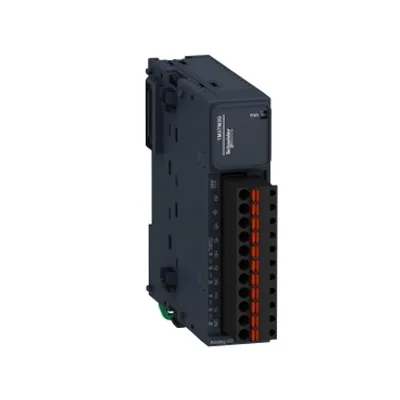

TM3TM3G

Analog IO module, Modicon TM3, 2 analog or temperature inputs, 1 analog output, spring, 24V DC

Schneider Electric

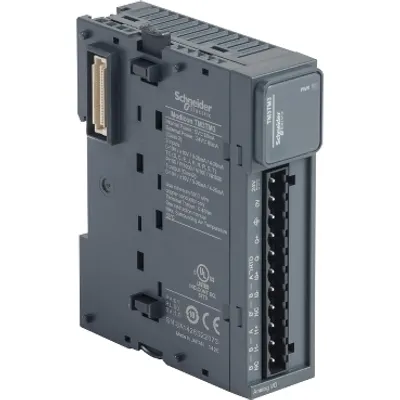

TM3TM3

Analog IO module, Modicon TM3, 2 analog or temperature inputs, 1 analog output, screw, 24V DC

Schneider Electric

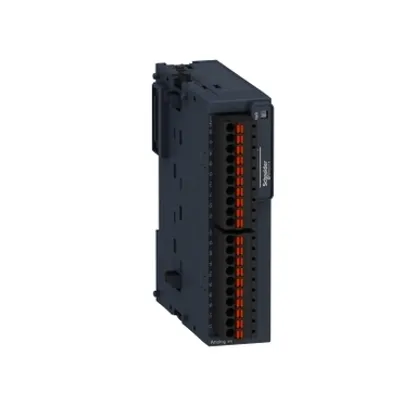

TM3TI8TG

Analog input module, Modicon TM3, 8 temperature inputs, spring, 24V DC

Schneider Electric

TM3TI8T

Analog input module, Modicon TM3, 8 temperature inputs, screw, 24V DC

Schneider Electric

TM3TI4G

Analog input module, Modicon TM3, 4 temperature inputs, spring, 24V DC

Schneider Electric

TM3TI4

Analog input module, Modicon TM3, 4 temperature inputs, screw, 24V DC

Schneider Electric

TM3AQ4G

Analog output module, Modicon TM3, 4 outputs, spring, 24V DC

Schneider Electric

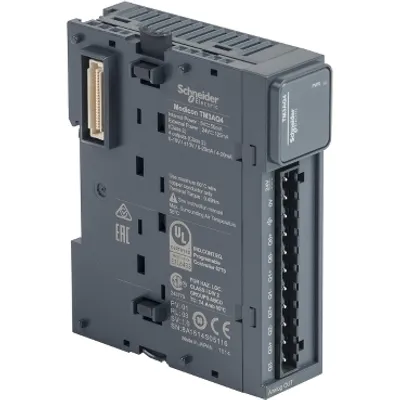

TM3AQ4

Analog output module, Modicon TM3, 4 outputs, screw, 24V DC

Schneider Electric

TM3AQ2G

Analog output module, Modicon TM3, 2 outputs, spring, 24V DC

Schneider Electric

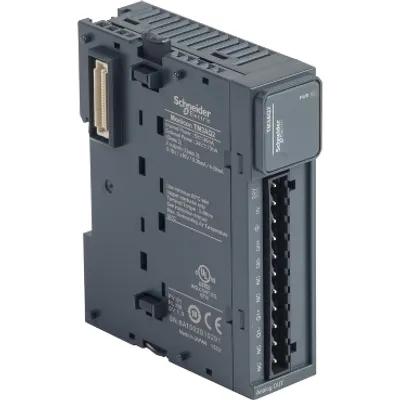

TM3AQ2

Analog output module, Modicon TM3, 2 outputs, screw, 24V DC

Schneider Electric

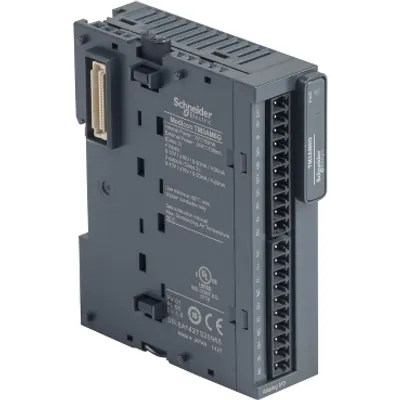

TM3AM6G

IO analog module; Modicon TM3; 4 inputs; 2 output; spring; 24V DC

Schneider Electric

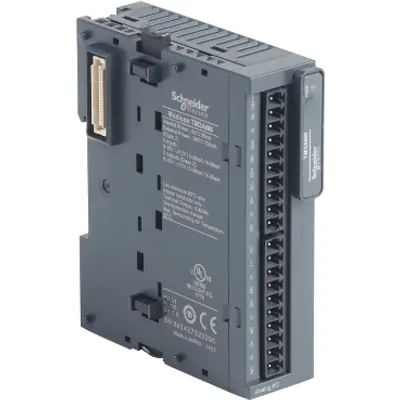

TM3AM6

IO analog module, Modicon TM3, 4 inputs, 2 output, screw, 24V DC

Schneider Electric

TM3AI8G

Analog input module, Modicon TM3, 8 inputs, spring, 24V DC

Schneider Electric

TM3AI8

Analog input module, Modicon TM3, 8 inputs, screw, 24V DC

Schneider Electric

TM3AI4G

Analog input module, Modicon TM3, 4 inputs, spring, 24V DC

Schneider Electric

TM3AI4

Analog input module, Modicon TM3, 4 inputs, screw, 24V DC

Schneider Electric

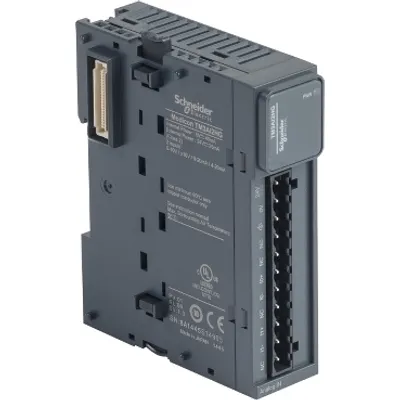

TM3AI2HG

Analog input module, Modicon TM3, 2 inputs high resolution, spring, 24V DC

Schneider Electric

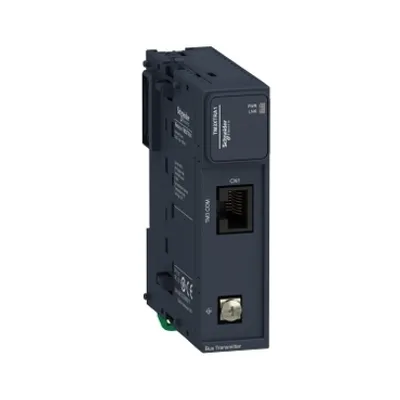

TM3XTRA1

Remote transmitter module; Modicon TM3

Schneider Electric

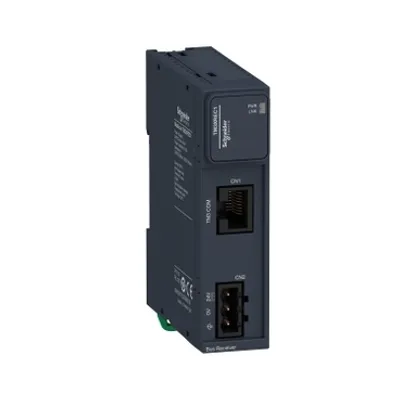

TM3XREC1

Remote receiver module; Modicon TM3

Compare Modicon TM3

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product or component type	Input impedance	Width	Depth	Net weight
TM3RDM32R	Discrete I/O module	4.7 kOhm	51 mm	84.6 mm	0.208 kg
TM3AI2H	Analog input module	<= 50 Ohm; >= 1 MOhm	23.6 mm	70 mm	0.115 kg
TM3RDM16R	Discrete I/O module	4.7 kOhm	27.4 mm	84.6 mm	0.118 kg
TM3TI4DG	Analog input module	—	23.6 mm	70 mm	0.11 kg
TM3TI4D	Analog input module	—	23.6 mm	70 mm	0.11 kg
TM3TM3G	Input/output analog module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.1 kg
TM3TM3	Input/output analog module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.115 kg
TM3TI8TG	Analog input module	>= 1 MOhm	23.6 mm	70 mm	0.1 kg
TM3TI8T	Analog input module	>= 1 MOhm	23.6 mm	70 mm	0.11 kg
TM3TI4G	Analog input module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.1 kg
TM3TI4	Analog input module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.11 kg
TM3AQ4G	Analog output module	—	23.6 mm	70 mm	0.1 kg
TM3AQ4	Analog output module	—	23.6 mm	70 mm	0.115 kg
TM3AQ2G	Analog output module	—	23.6 mm	70 mm	0.1 kg
TM3AQ2	Analog output module	—	23.6 mm	70 mm	0.115 kg
TM3AM6G	Input/output analog module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.1 kg
TM3AM6	Input/output analog module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.11 kg
TM3AI8G	Analog input module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.1 kg
TM3AI8	Analog input module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.11 kg
TM3AI4G	Analog input module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.1 kg
TM3AI4	Analog input module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.11 kg
TM3AI2HG	Analog input module	<= 50 Ohm, >= 1 MOhm	23.6 mm	70 mm	0.1 kg
TM3XTRA1	Remote transmitter module	—	23.65 mm	73.3 mm	0.065 kg
TM3XREC1	Remote receiver module	—	23.65 mm	73.3 mm	0.075 kg

Common to all listed parts

Range of product	Modicon TM3
Height	90 mm
Marking	CE
Pollution degree	2
