Schneider Electric TM172PBG18R – Modicon M172 Performance Blind 18 I/Os, Ethernet, Modbus

Name: Schneider Electric TM172PBG18R – Modicon M172 Performance Blind 18 I/Os, Ethernet, Modbus
Brand: Schneider Electric
SKU: TM172PBG18R

MPN: TM172PBG18R · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M171/M172/M173
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	IT
UPC / EAN	3606481390066
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can TM172PBG18R be shipped?

TM172PBG18R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM172PBG18R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM172PBG18R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM172PBG18R, subject to availability and destination.

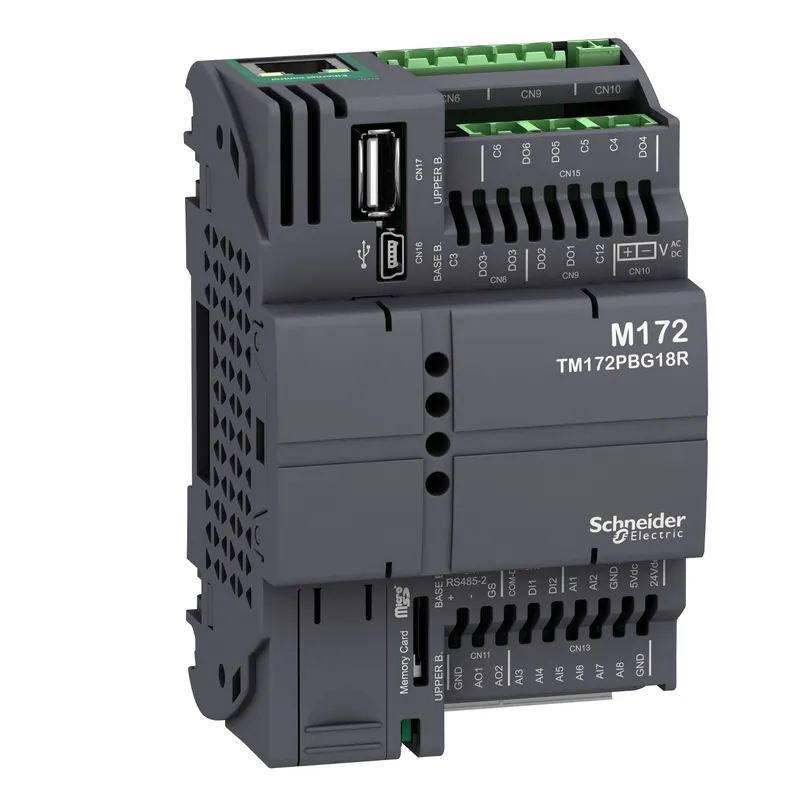

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.2kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172
Product or component type	Programmable controllers
Product specific application	HVAC
Variant	Programmable
Total inputs/outputs	18
Discrete input number	2
Discrete output number	1 for relay outputs SPDT with independent common; 2 for relay outputs SPST with same common; 3 for relay outputs SPST with independent common
Discrete output current	3 A for relay SPST; 3 A for relay SPDT
Analogue input number	8 configurable by pair
Analogue output number	2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz)

Complementary

Number of port	1 CAN port - screw terminal block; 1 USB type A - USB type A female; 1 USB type mini B - USB device port Mini-B; 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP); 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver)
Input/output number	2 analog output(s); 6 digital output(s); 8 analog input(s); 2 digital input(s)
Discrete input logic	Sink or source (positive/negative) up to 2 kHz
Discrete input voltage	24 V AC/DC
Discrete input current	5 mA AC/DC
Input impedance	10 kOhm
Analogue input type	NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C); NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C); voltage 0...10 V - resolution: 1 digit at > 10 kOhm; voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric); impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm; impedance 0...300 daOhm - resolution: 1 daOhm at 1500 Ohm; PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 1500 Ohm; Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 1500 Ohm; current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm; direct input at 10 kOhm (Dry contact)
Measurement accuracy	0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit; 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit; 4...20 mA +/- 1 % of full scale +/- 1 digit; 0...10 V +/- 1 % of full scale +/- 1 digit; 0...5 V +/- 1 % of full scale +/- 1 digit; DaOhm 0...300 daOhm +/- 2.5 daOhm; NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C; NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C; NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C; PTC - 55...155 °C +/- 1.1 °C; Pt 1000 - 200...-100 °C +/- 10 °C; Pt 1000 - 100...-50 °C +/- 2.5 °C; Pt 1000 - 50...100 °C +/- 1.5 °C; Pt 1000 100…400 °C +/- 2.4 °C; Pt 1000 400...850 °C +/- 10 °C; HOhm 0...750 hOhm +/- 8.5 hOhm; HOhm 750 hOhm...1500 hOhm +/- 24 hOhm
Sensor power supply	5 V DC at 40 mA supplied by the controller; 24 V DC at 100 mA supplied by the controller
[Us] rated supply voltage	24 V +/- 10 % AC; 20...38 V DC
Power consumption in W	11 W at 24 V AC/DC
Realtime clock	Built-in clock, clock drift <= 30 s/month at -20…60 °C
Display type	Without display
Overvoltage category	II
Local signalling	1 LED (red) for programmable; 1 LED (yellow) for programmable; 1 LED (green) for programmable; 1 LED (green) for power
Mounting support	Panel mounting with accessory; DIN rail
Width	72 mm
Height	110 mm
Depth	60.5 mm
Net weight	0.2 kg

Environment

Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
Standards	IEC 61000-4-5; IEC 61000-4-3; IEC 61000-4-2; EN 60068-2-27; EN 60730-1; EN 60068-2-6 Fc; UL 60730-1; UL 60730-2-9; IEC 61000-4-4; CAN/CSA-E60730-1; IEC 61000-4-11; IEC 61000-4-6; CSA E60730-2-9; EN 60730-2-9; UL94 (material V0)
Product certifications	CSA; EAC; RCM; CE; cURus
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-30…70 °C
Relative humidity	5…95 % non-condensing
IP degree of protection	IP20
Pollution degree	2
Operating altitude	0...2000 m
