Schneider Electric TM172ODM28R – Modicon M172 Optimized Display 28 I/Os

Name: Schneider Electric TM172ODM28R – Modicon M172 Optimized Display 28 I/Os
Brand: Schneider Electric
SKU: TM172ODM28R

MPN: TM172ODM28R · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M171/M172/M173
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	IT
UPC / EAN	3606481390110
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can TM172ODM28R be shipped?

TM172ODM28R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM172ODM28R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM172ODM28R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM172ODM28R, subject to availability and destination.

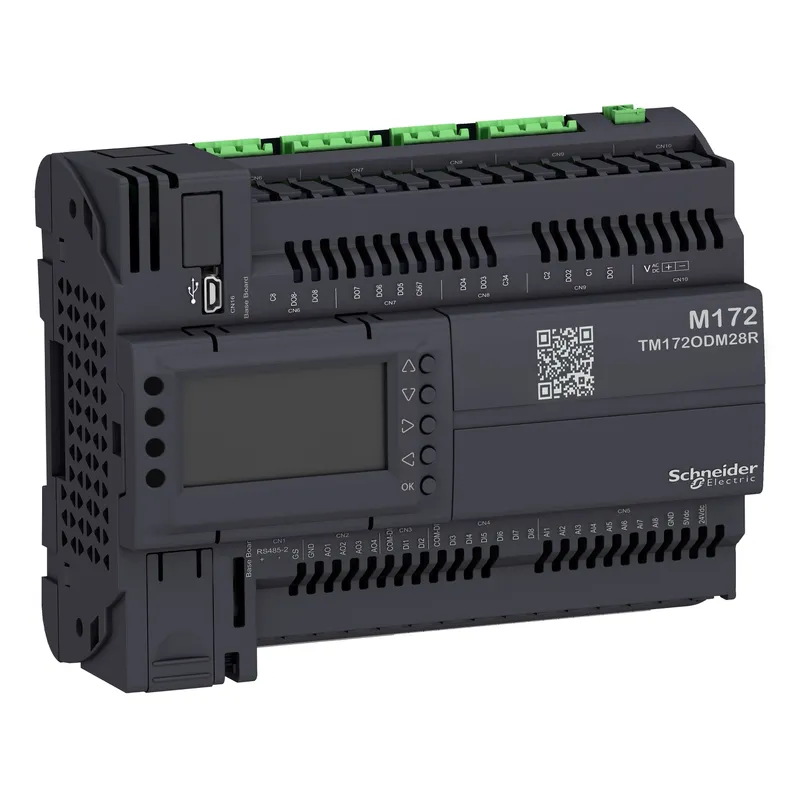

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 8 digital inputs, 8 analog inputs, 8 digital outputs, 4 analog outputs, and a display. This controller embeds one CAN expansion bus port, two RS485 ports, one USB-B port, and one Communication module port. It is a programmable logic controller for HVAC and Pumping applications. Dis are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm. DOs are SPDT relays, or SPST 3A with the same or independent common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc). It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.300kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172
Product or component type	Programmable controllers
Product specific application	HVAC control
Variant	Programmable
Total inputs/outputs	28
Discrete input number	8
Discrete output number	1 for relay outputs SPDT with independent common; 3 for relay outputs SPST with same common; 2 for relay outputs SPST with same common; 2 for relay outputs SPST with independent common
Discrete output current	3 A for relay SPDT; 3 A for relay SPST
Analogue input number	8 configurable by pair
Analogue output number	2 voltage, range: 0...10 V; 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz)

Complementary

Number of port	1 CAN port - screw terminal block; 1 USB type mini B - USB device port Mini-B; 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP)
Input/output number	8 digital input(s); 8 analog input(s); 4 analog output(s); 8 digital output(s)
Discrete input logic	Sink or source (positive/negative)
Discrete input voltage	24 V AC/DC
Discrete input current	2.5 mA
Input impedance	10 kOhm
Analogue input type	impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm; impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm; NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm; voltage 0...10 V - resolution: 1 digit at > 10 kOhm; NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (extended); current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm; PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 2 kOhm; voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric); Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm; direct input at > 10 kOhm
Measurement accuracy	NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C; NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C; NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C; PTC - 55...155 °C +/- 1.1 °C; Pt 1000 - 200...-100 °C +/- 10 °C; Pt 1000 - 100...-50 °C +/- 2.5 °C; Pt 1000 - 50...100 °C +/- 1.5 °C; Pt 1000 100…400 °C +/- 2.4 °C; Pt 1000 400...850 °C +/- 10 °C; 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit; 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit; 4...20 mA +/- 1 % of full scale +/- 1 digit; 0...10 V +/- 1 % of full scale +/- 1 digit; 0...5 V +/- 1 % of full scale +/- 1 digit; HOhm 0...1500 hOhm +/- 8.5 hOhm; DaOhm 0...300 daOhm +/- 2.5 daOhm
Sensor power supply	5 V DC at 50 mA supplied by the controller; 24 V DC at 150 mA supplied by the controller
[Us] rated supply voltage	24 V +/- 10 % AC; 20...38 V DC
Power consumption in W	12 W at 24 V AC/DC
Realtime clock	Built-in clock, clock drift <= 30 s/month at -20…65 °C
Display type	Backlit LCD - 128 x 64 pixels
Overvoltage category	II
Local signalling	1 LED (red) for programmable; 1 LED (yellow) for programmable; 1 LED (green) for programmable; 1 LED (green) for power
Mounting support	Panel mounting with accessory; DIN rail
Width	144 mm
Height	110 mm
Depth	60.5 mm
Net weight	0.3 kg

Environment

Directives	2014/30/EU - electromagnetic compatibility; 2014/35/EU - low voltage directive
Standards	CAN/CSA-E60730-1; CSA E60730-2-9; EN 60068-2-27; EN 60068-2-6 Fc; EN 60730-1; EN 60730-2-9; UL 60730-1; UL 60730-2-9; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-11; UL94 (material V0)
Product certifications	EAC; CE; cURus; CSA; RCM
Ambient air temperature for operation	-20…65 °C conforming to UL 60730-1; -20…60 °C horizontal conforming to UL 60730-1
Ambient air temperature for storage	-30…70 °C
Relative humidity	5…95 % non-condensing
IP degree of protection	IP20
Pollution degree	2
Operating altitude	0...2000 m
