Schneider Electric SYCF48KH

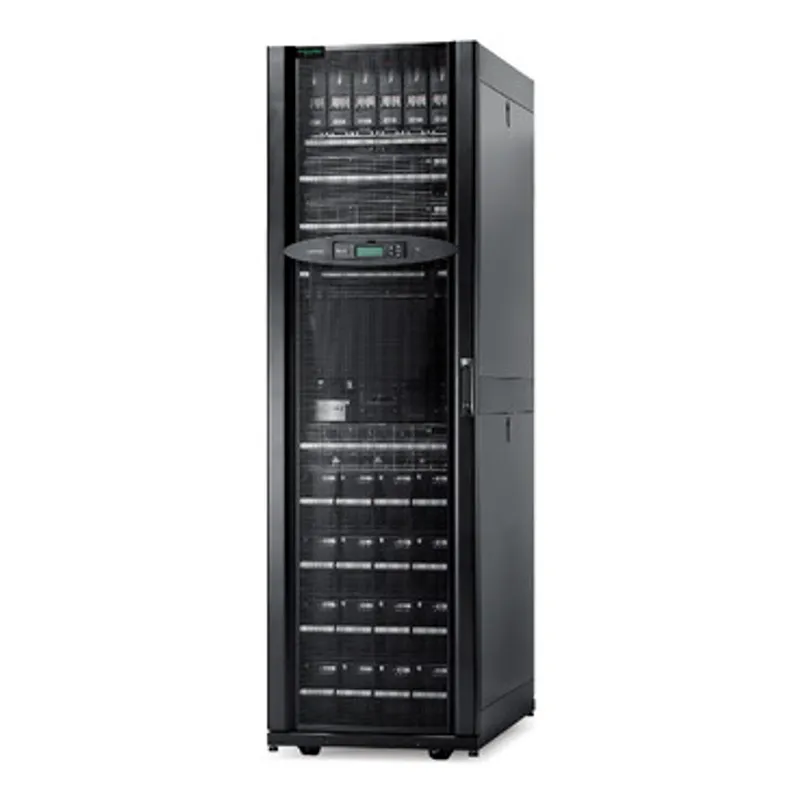

APC Symmetra PX 48kW All-In-One Frame, 400V

MPN: SYCF48KH
Category: Symmetra PX Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SYCF48KH?

Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160 kW/160 kVA. Suitable for small, medium & large data centers applications.

Specifications

Presentation	Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications.
Max. Capacity Used
Main Input Voltage	400 V 3 phases
Input voltage	380 V, 400 V, 415 V
Max short time withstand current	30 kA
Input harmonic distortion	Less than 5 % for full load
Input protection type	GL fuse
Cos phi	0.99
Switching current capacity	100 A
Input voltage limits	340...477 V
Number of input connectors	1 hard wire 5-wire (3P + N + E)
Network frequency	40...70 Hz
Output voltage	380 V, 400 V, 415 V
Rated power in W	48000 W
rated power in VA	48000 VA
Output connector type	Hard wire 5-wire (3P + N + E) for 1 zone(s)
Bypass type	Built-in static bypass
Crest factor	Unlimited
Harmonic distortion	Less than 2 %
Maximum configurable power in VA	48000 VA
Maximum configurable power in W	48000 W
Output overload operation	10 minutes at 125% and 60 seconds at 150%
Output voltage tolerance	+/- 1% static and +/- 5% at 100% load step
UPS type	Double conversion online
Wave type	Sine wave
Efficiency	95 % (full load), 95 % (half load)
Output frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Required output current protection	100 A
Additional information	Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Control panel	Multifunction LCD status and control console
Emergency power off	Yes
Free slots	2
Height	199.1 cm
Width	60 cm
Depth	107 cm
Net weight	307 kg
USB compatible	No
Provided equipment	Installation guide
Bypass voltage tolerance	+/- 10 % settable from +/- 4/6/8 and 10 %
Bypass wiring configuration	5 wire (3P + N + E)
Max bypass input current	80 A
Bypass current protection	80 A
Number of power module filled slots	0
Number of power module free slots	10
Redundant	Yes
Standards	EN 50091-1, EN/IEC 62040-3, EN/IEC 62040-1-1, FCC part 15 class A, VFI-SS-111
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…40 °C
Storage altitude	0…4572 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
NEMA degree of protection	NEMA 1
Operating altitude	0...3333 ft

Packaging

Package 1

1 PCE, 84.8 cm × 121 cm × 214 cm (L × W × H), 331 kg
