Schneider Electric SYCF160KH

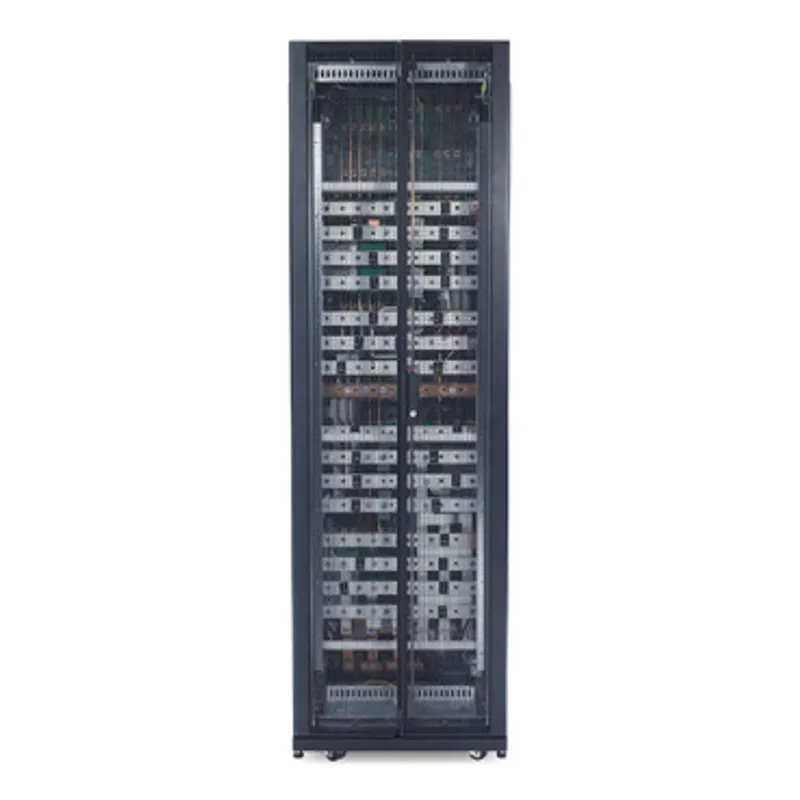

Symmetra PX Frame 160kW 400V
- MPN
- SYCF160KH
- Category
- Symmetra PX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SYCF160KH?
Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160 kW/160 kVA. Suitable for small, medium & large data centers applications.
Specifications
Specifications
| Presentation | Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications. |
| Main Input Voltage | 400 V 3 phases |
| Maximum input current | 295 A |
| Max short time withstand current | 30000 kA |
| Switching current capacity | 315 A |
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Output voltage | 230 V, 400 V 3 phases |
| Rated power in W | 160000 W |
| rated power in VA | 160000 VA |
| Output connector type | Hard wire 5-wire (3P + N + E) for 1 zone(s) |
| Maximum configurable power in VA | 160000 VA |
| Maximum configurable power in W | 160000 W |
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 2 |
| Height | 199.1 cm |
| Width | 60 cm |
| Depth | 107 cm |
| Net weight | 325.45 kg |
| USB compatible | No |
| Provided equipment | Installation guide |
| Bypass voltage tolerance | +/- 10 % settable from +/- 4/6/8 and 10 % |
| Bypass wiring configuration | 5 wire (3P + N + E) |
| Max bypass input current | 250 A |
| Bypass current protection | 250 A |
| Number of power module filled slots | 0 |
| Number of power module free slots | 10 |
| Redundant | Yes |
| Standards | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, VFI-SS-111 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…4572 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| NEMA degree of protection | NEMA 1 |
| Operating altitude | 0...3333 ft |
Packaging
| Package 1 | 1 PCE, 84.8 cm × 121 cm × 214 cm (L × W × H), 358 kg |
