Schneider Electric SYA8K8RMI

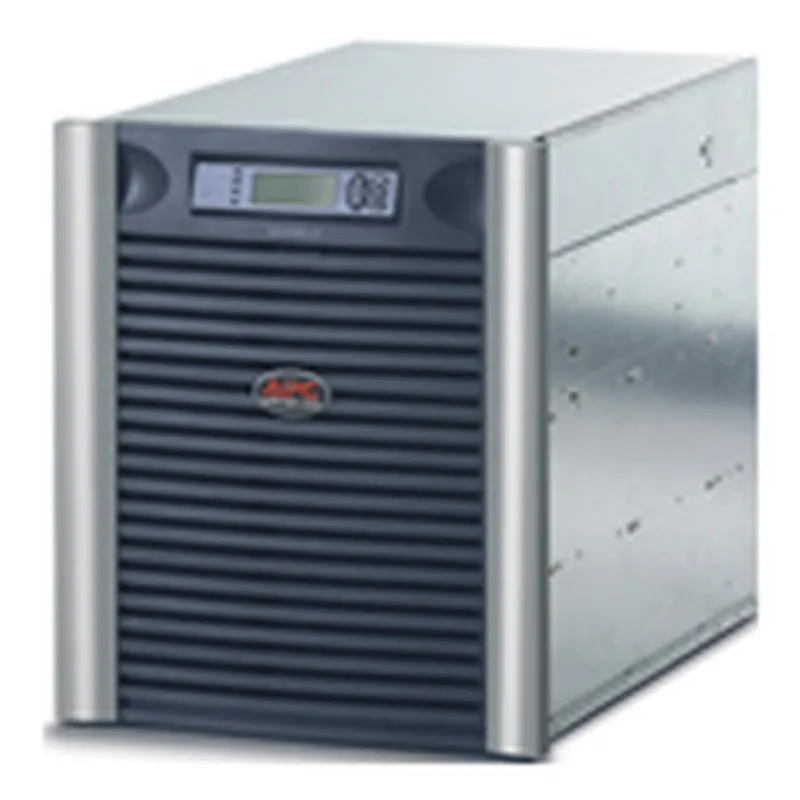

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

MPN: SYA8K8RMI
EAN: 3606485318691
Category: APC Symmetra

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SYA8K8RMI?

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Specifications

Presentation	High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Max. Capacity Used
Main Input Voltage	220 V AC 1 phase, 400 V AC 3 phases, 230 V AC 1 phase, 240 V AC 1 phase, 380 V AC 3 phases, 415 V AC 3 phases
Input voltage	220 V, 240 V, 380 V, 415 V
Input harmonic distortion	Less than 7 % for full load
Cos phi	0.98
Input voltage limits	155...276 V, 290...480 V 3:1
Number of input connectors	1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)
Network frequency	45...65 Hz auto-sensing
Output voltage	220 V, 240 V
Rated power in W	5600 W
rated power in VA	8000 VA
Output connection type	8 IEC 60320 C13, 6 IEC 60320 C19
Output connector type	Hard wire 3-wire (H N + E) for 1 zone(s)
Bypass type	Internal bypass (automatic and manual)
Crest factor	Up to 5 : 1
Harmonic distortion	Less than 5 % at full load
Maximum configurable power in VA	8000 VA
Maximum configurable power in W	5600 W
Maximum output current	36 A
UPS type	On-Line
Wave type	Sine wave
Efficiency	90 % (full load)
Output frequency	47...63 Hz sync to mains, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Battery type	Lead-acid battery
Control panel	Multifunction LCD status and control console
Emergency power off	Yes
Free slots	1
Preinstalled device	Network management card 2 with environmental monitoring
Alarm	Audible and visible alarms : prioritized by severity
UPS connectivity	Serial port, Available expansion slot, Pre-installed network management card 3
Number of rack unit	13U
Colour	Black, Silver
Height	572 mm
Width	472 mm
Depth	688 mm
Net weight	178.18 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted with included kit
Two post mountable	0
USB compatible	No
Provided equipment	CD with software, Documentation CD, Installation guide, User manual, Web/SNMP management card
Number of power module filled slots	2
Number of power module free slots	1
Additional specification	4kVA power increments
Redundant	Yes
Range of product	Symmetra LX
Product or component type	Uninterruptible power supply (UPS)
Performance multiplier	1
Value multiplier	1
Size UPS version	Internetworking, Server, Telecom
Curve equation	Efficiency
Curve load maximum	100 %
Curve X-axis maximum	100 %
Curve X-axis minimum	0 %
Curve X-axis title	Load
Curve X-axis units	Percentage
Curve Y-axis maximum	100 %
Curve Y-axis minimum	50 %
Curve Y-axis title	Efficiency
Curve Y-axis units	Percentage
Graph display	1
Show note OP temperature	No
UPS size	L
Product certifications	C-Tick, CE, GOST, VDE
Standards	EN 50091-1, EN 50091-2, EN 55022 class A, EN 55024, EN 60950, IEC 60950
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…4572 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	62 dBA
Heat dissipation	2762 Btu/h
Operating altitude	0...10000 ft
Run Time	View Runtime Graph
Extended runtime	1
Number of battery filled slots	2
Number of battery free slots	0
Battery recharge time	3 h
Battery life	3…5 year(s)
Battery charger power	574 W rated
Number of tare power	200 W

Packaging

Package 1

1 PCE, 99.7 cm × 59.9 cm × 78.7 cm (L × W × H), 216.82 kg
