Schneider Electric SYA8K16P

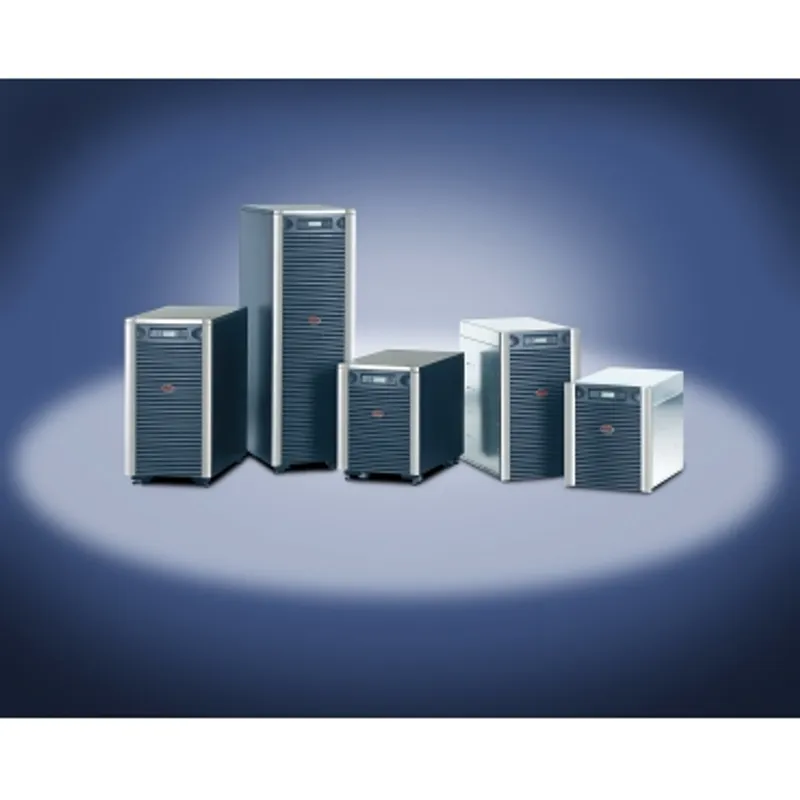

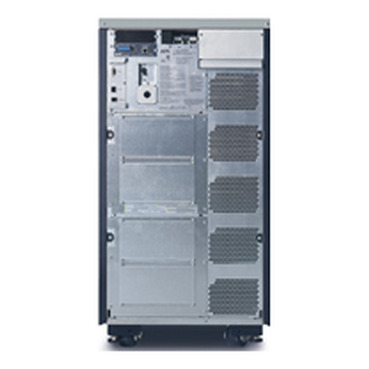

APC Symmetra LX 8kVA Scalable to 16kVA N+1, Tower 208/240V
- MPN
- SYA8K16P
- Category
- APC Symmetra
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric SYA8K16P?
Schneider Electric APC Symmetra LX 8kVA Scalable to 16kVA N+1, Tower 208/240V, manufacturer part number SYA8K16P. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Max. Capacity Used | |
| Main Input Voltage | 208 V AC 1 phase, 120 V AC 1 phase, 240 V AC 1 phase |
| Input voltage | 240 V |
| Input harmonic distortion | Less than 7 % for full load |
| Cos phi | 0.98 |
| Input voltage limits | 96...138 V line to neutral |
| Number of input connectors | 1 hard wire 4-wire (2P + N + E) |
| Network frequency | 45...65 Hz auto-sensing |
| Output voltage | 240 V |
| Rated power in W | 6400 W |
| rated power in VA | 8000 VA |
| Output connector type | Hard wire 4-wire (2P + N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | Up to 5 : 1 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 16000 VA |
| Maximum configurable power in W | 12800 W |
| Maximum output current | 37 A |
| UPS type | On-Line |
| Wave type | Sine wave |
| Output frequency | 47...63 Hz sync to mains, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| Additional information | Configurable for 120/208 or 120/240 output voltage |
| Battery type | Lead-acid battery |

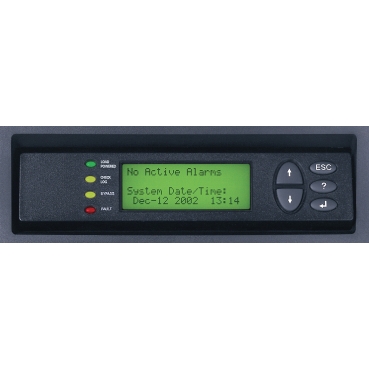

| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 1 |

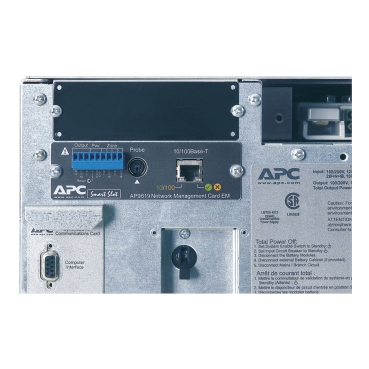

| Preinstalled device | Network management card 2 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port, Pre-installed network management card 3, Available expansion slot |
| Colour | Black, Silver |
| Height | 937 mm |
| Width | 483 mm |
| Depth | 726 mm |
| Net weight | 219.55 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Tower |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software, Installation guide, User manual, Web/SNMP management card |
| Number of power module filled slots | 2 |
| Number of power module free slots | 3 |
| Additional specification | 4kVA power increments |
| Redundant | Yes |
| Range of product | Symmetra LX |
| Product or component type | Uninterruptible power supply (UPS) |
| Performance multiplier | 1 |
| Value multiplier | 1 |
| Size UPS version | Internetworking, Server, Telecom |
| Curve equation | Efficiency |
| Curve fixed loss | 0.0305 |
| Curve load maximum | 100 % |
| Curve load minimum | 4 % |
| Curve proportional loss | 0.0622 |
| Curve square loss | 0.0196 |
| Curve test cond ID | Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output. |
| Curve X-axis maximum | 100 % |
| Curve X-axis minimum | 0 % |
| Curve X-axis title | Load |
| Curve X-axis units | Percentage |
| Curve Y-axis maximum | 100 % |
| Curve Y-axis minimum | 50 % |
| Curve Y-axis title | Efficiency |
| Curve Y-axis units | Percentage |
| Graph display | 1 |
| Show note OP temperature | No |
| UPS size | L |
| Product certifications | CSA |
| Standards | FCC part 15 class A, UL 1778 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…4572 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 62 dBA |
| Heat dissipation | 4995 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Extended runtime | 1 |
| Number of battery filled slots | 2 |
| Number of battery free slots | 2 |
| Battery recharge time | 3 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 574 W rated |
| Number of tare power | 200 W |
Packaging
| Package 1 | 1 PCE, 59.9 cm × 99.7 cm × 118.1 cm (L × W × H), 236.82 kg |
