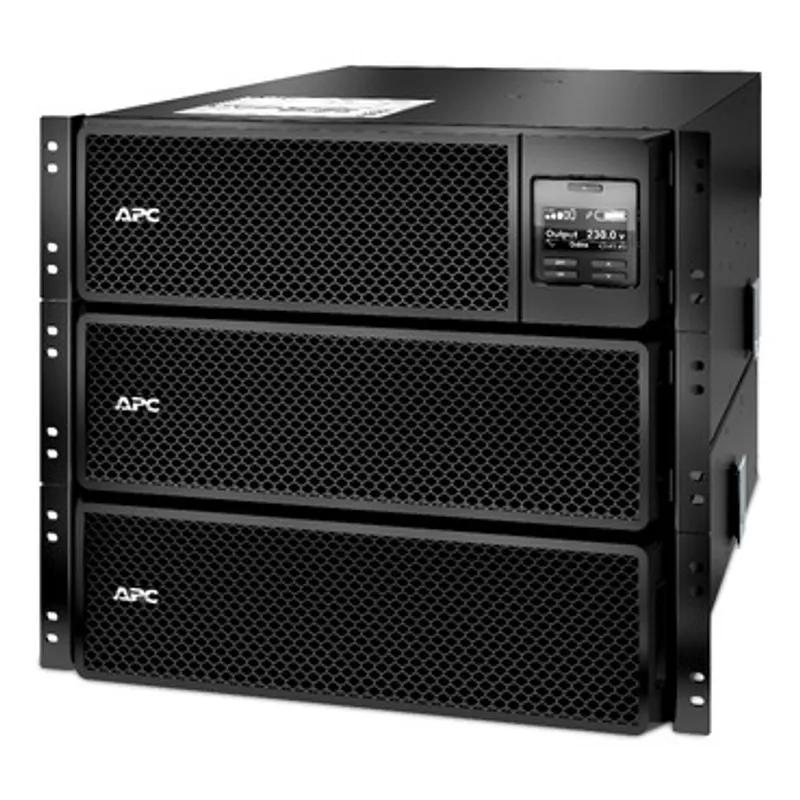

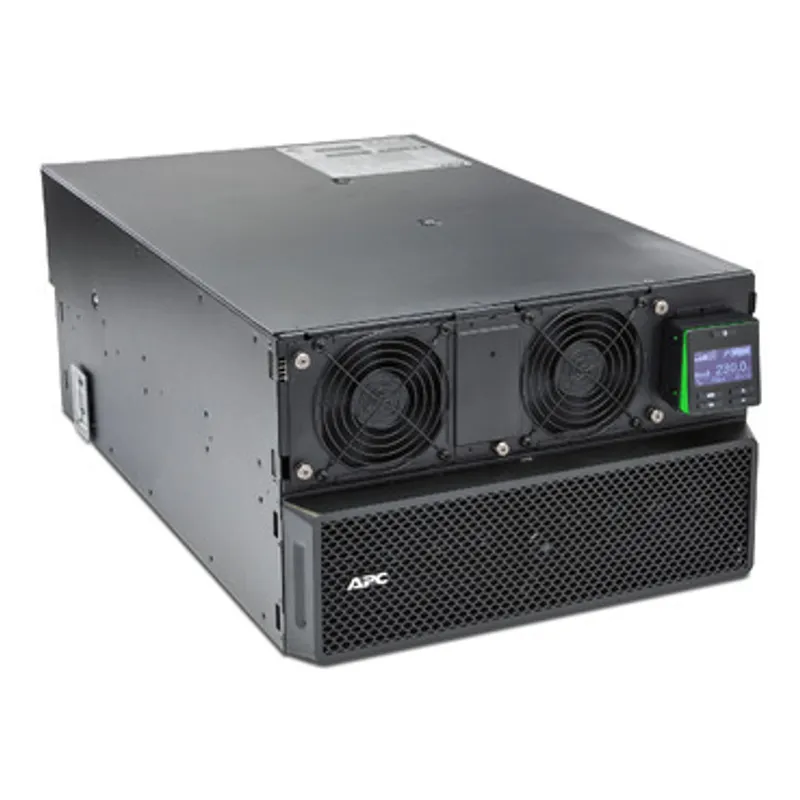

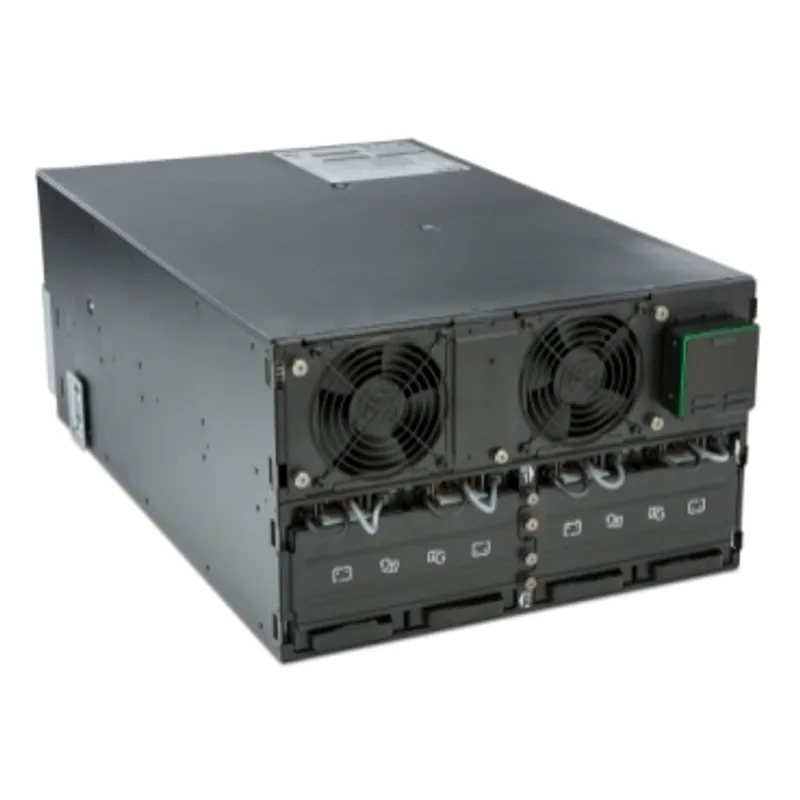

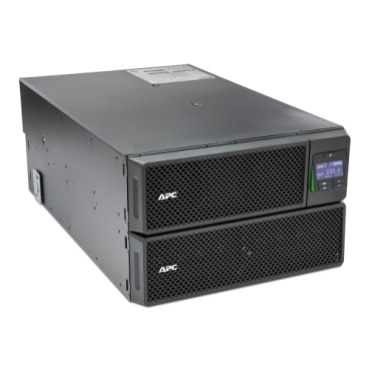

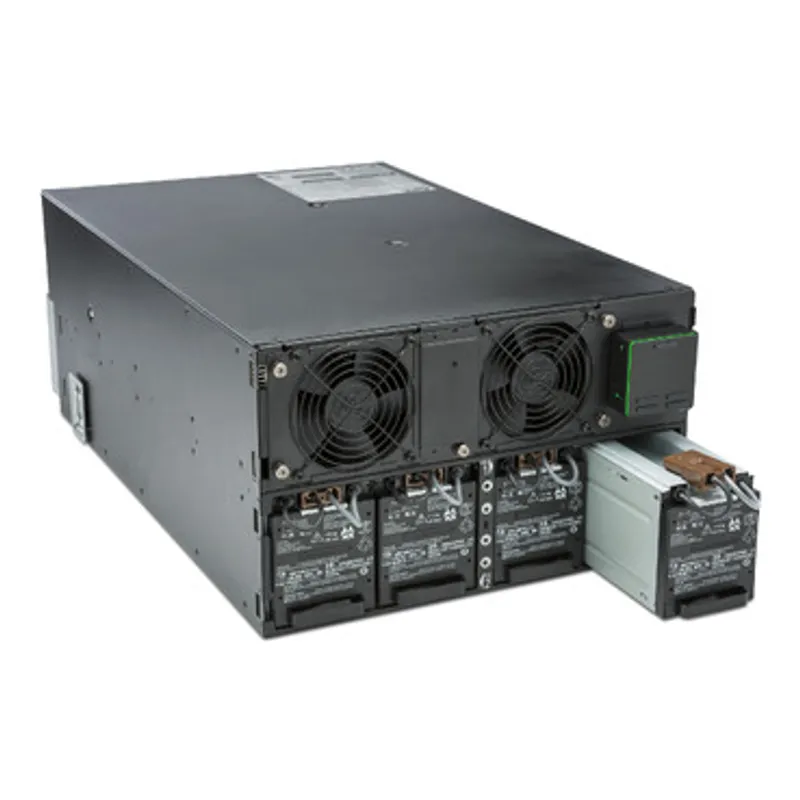

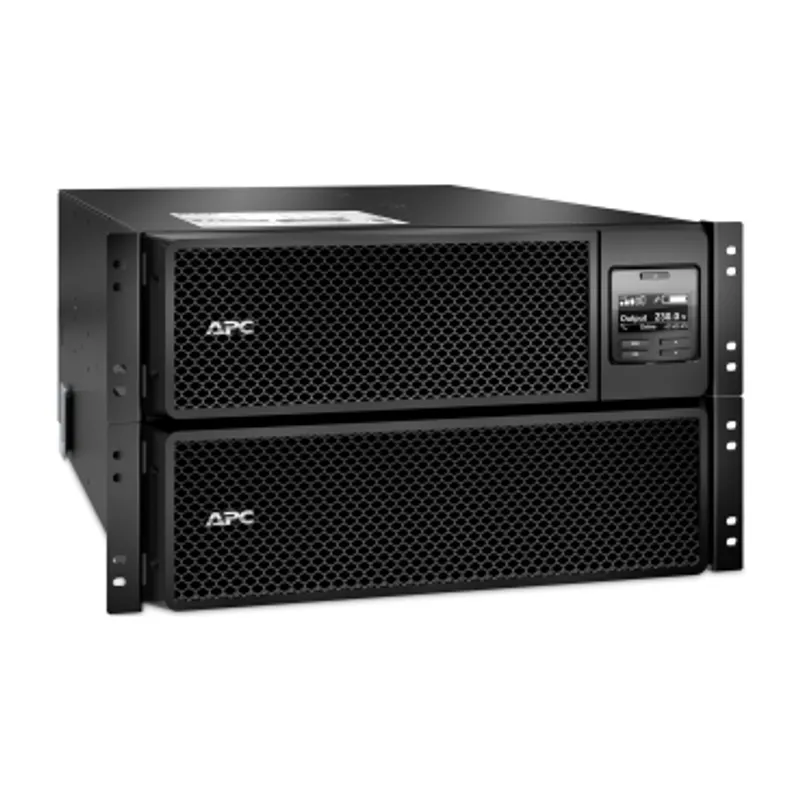

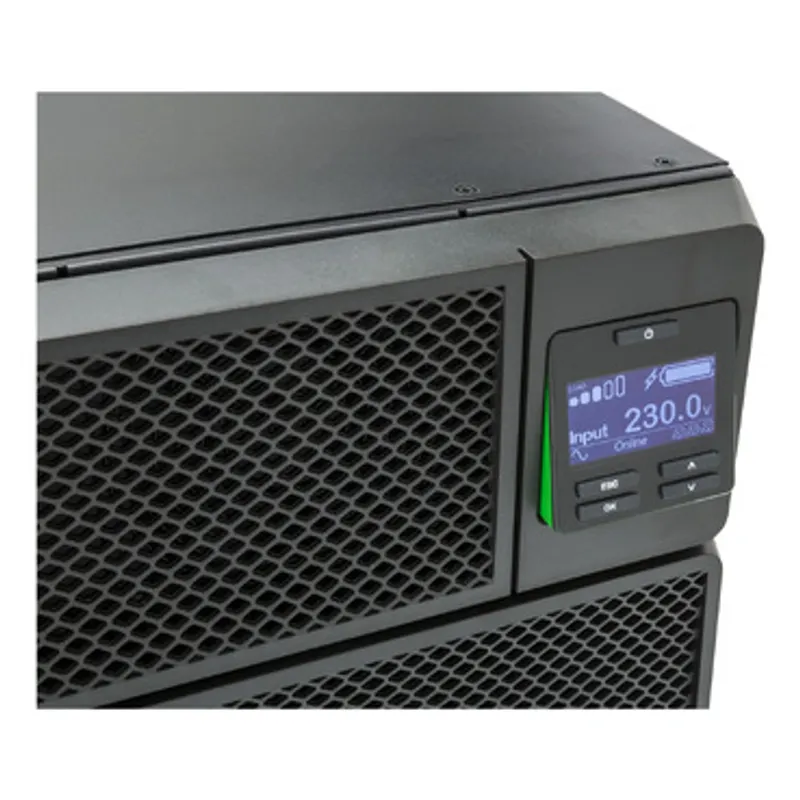

Schneider Electric SRT8KRMXLI
APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
- MPN
- SRT8KRMXLI
- EAN
- 0731304304296
- Category
- APC Smart-UPS On-Line
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SRT8KRMXLI?

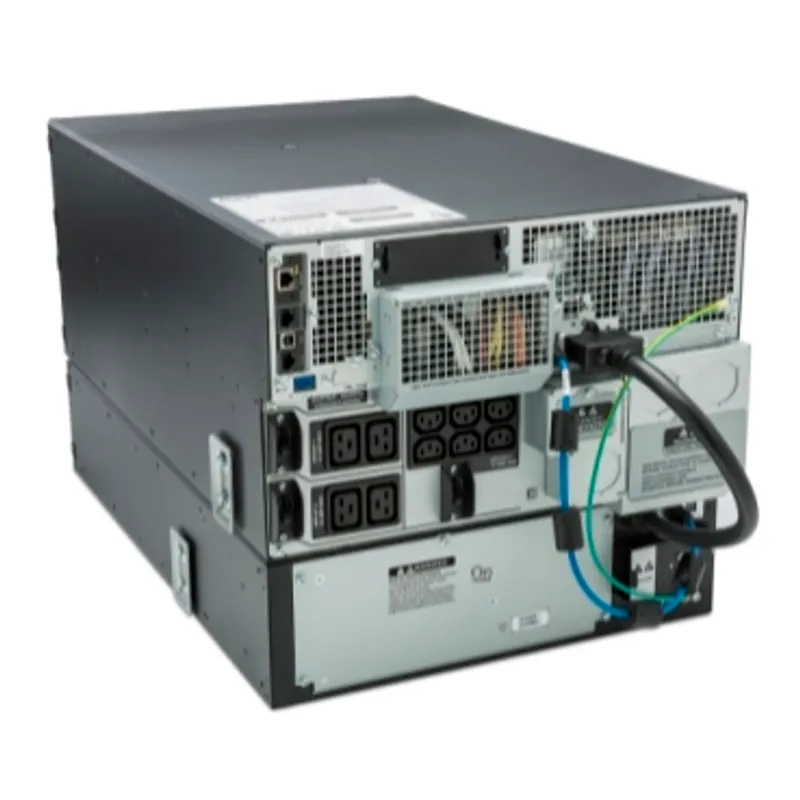

This APC Smart-UPS SRT8KRMXLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specifications
Specifications
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Max. Capacity Used | |
| Main Input Voltage | 220 V AC 1 phase, 230 V AC 1 phase, 240 V AC 1 phase, 380 V AC 3 phases, 400 V AC 3 phases, 415 V AC 3 phases |
| Input voltage | 220 V, 240 V, 380 V, 415 V |
| Input voltage limits | 100...275 V adjustable (half load), 173...476 V adjustable (half load) |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 40...70 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 8000 W |
| rated power in VA | 8000 VA |

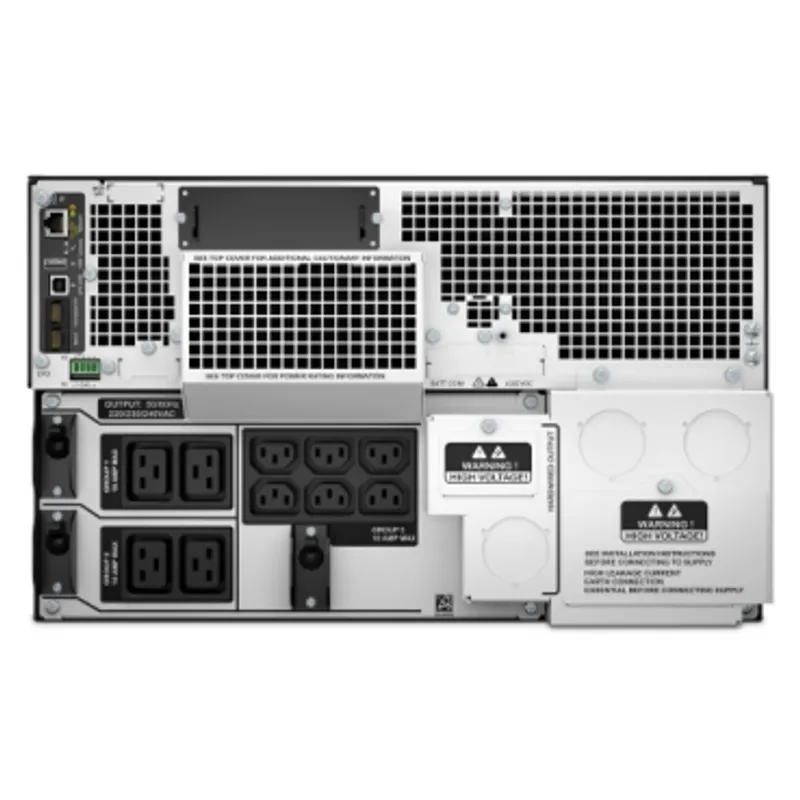

| Output connection type | 6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19 |
| Output connector type | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 8000 VA |
| Maximum configurable power in W | 8000 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Lead-acid battery |
| Emergency power off | Yes |
| Free slots | 1 |
| Preinstalled device | Network management card 3 with environmental monitoring |

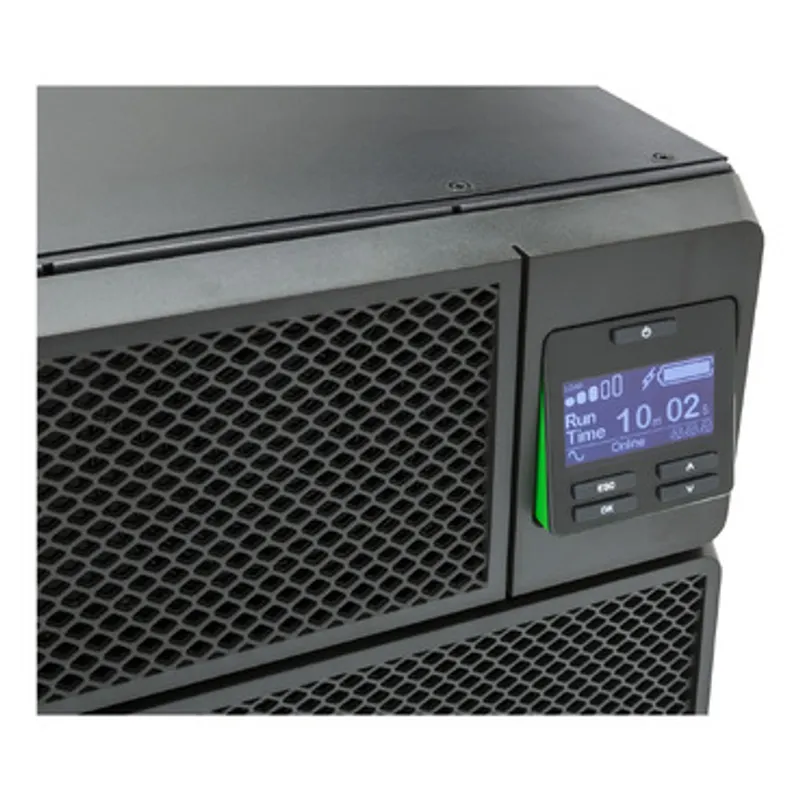

| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port, USB port, Embedded network management card 3, Available expansion slot |
| Surge energy rate | 480 J |
| Number of rack unit | 6U |
| Colour | Black |
| Height | 263 mm |
| Width | 432 mm |
| Depth | 715 mm |
| Net weight | 111.82 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with included kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Provided equipment | CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | High density |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, EAC, IRAM, RCM, VDE |
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 1497 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery voltage | +/- 192 V (split battery referenced to neutral) |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Battery recharge time | 1.5 h |
| Number of battery replacement quantity | 2 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC140 |
| Battery charger power | 876 W rated |
Packaging
| Package 1 | 1 PCE, 100 cm × 60 cm × 46.1 cm (L × W × H), 130 kg |
