SRT6KRMXLI-6WAPC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit, 6-year warranty
Schneider Electric SRT6RMM

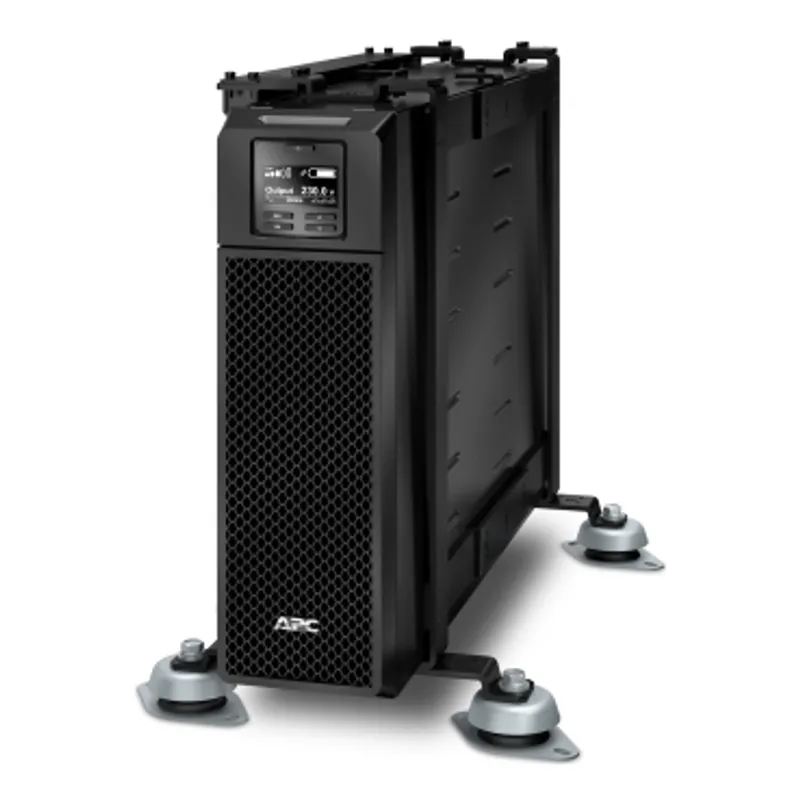

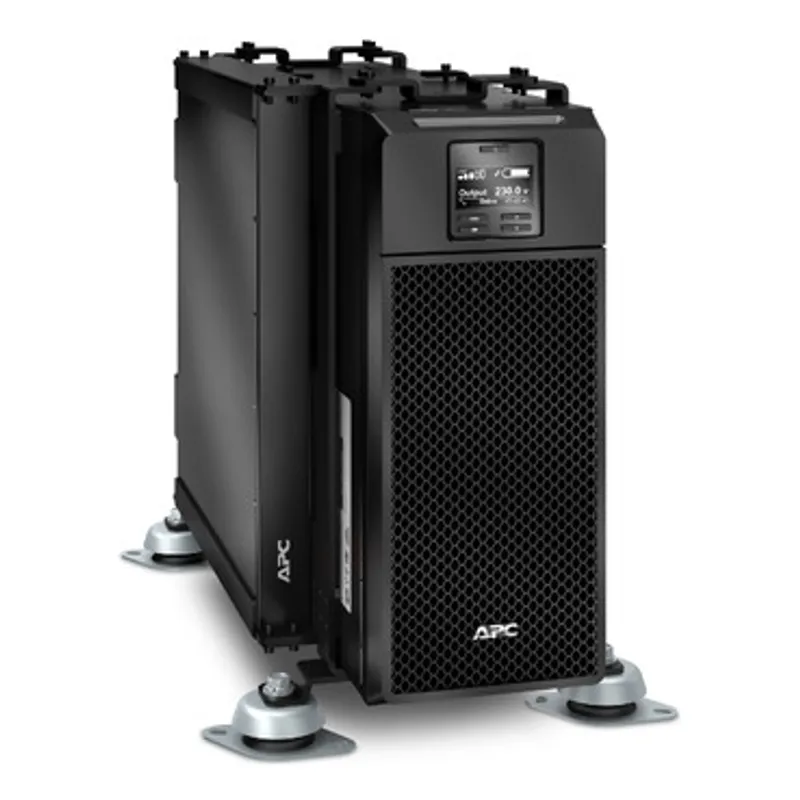

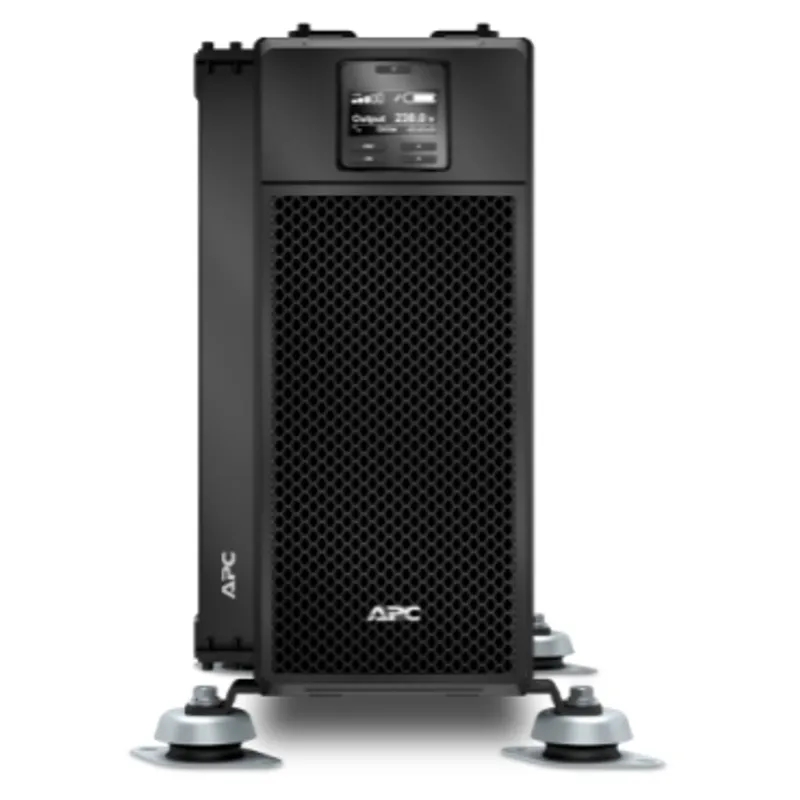

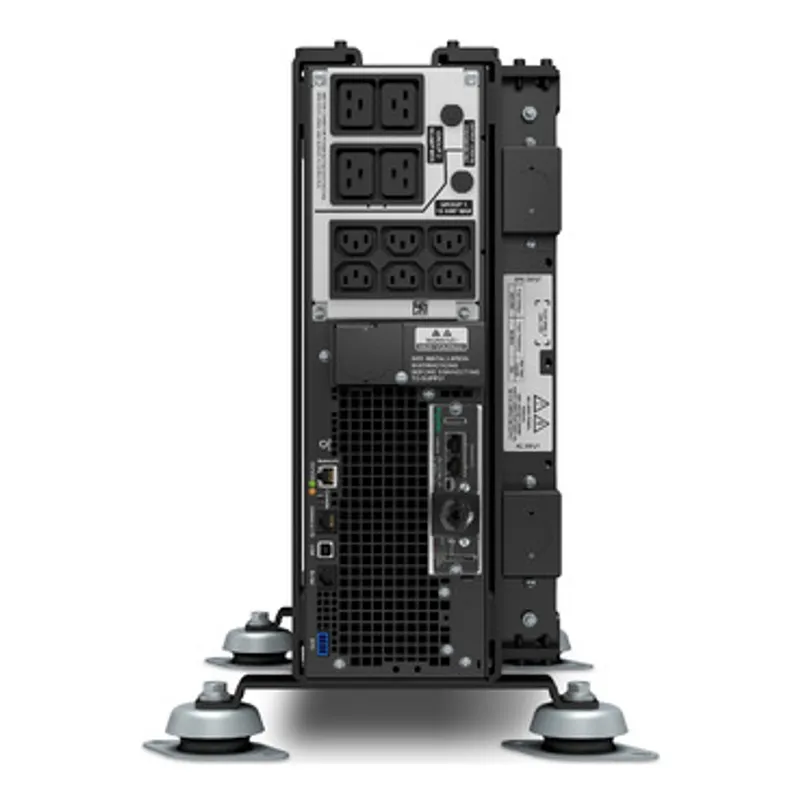

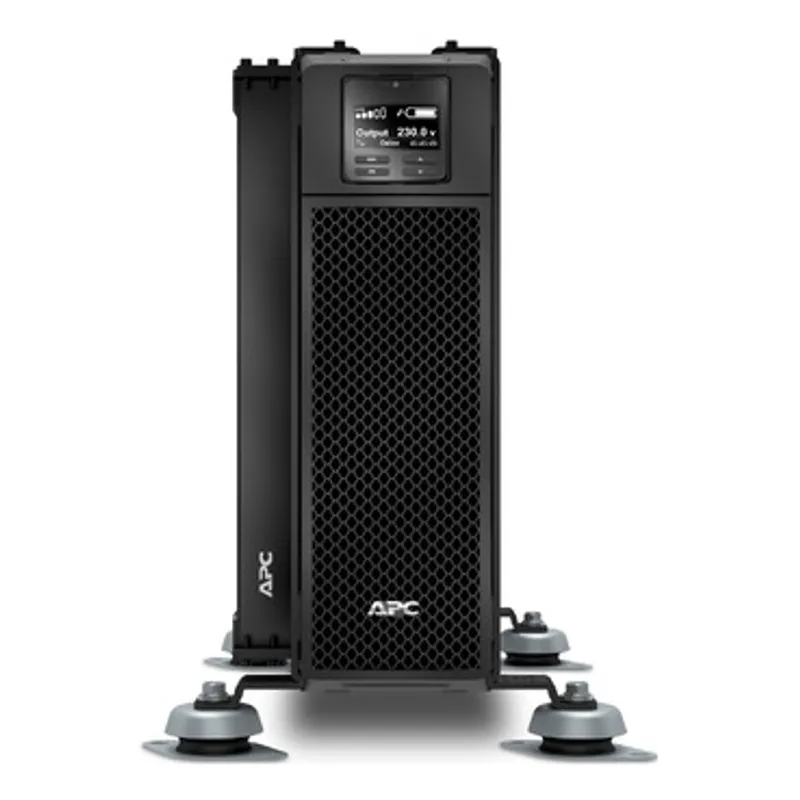

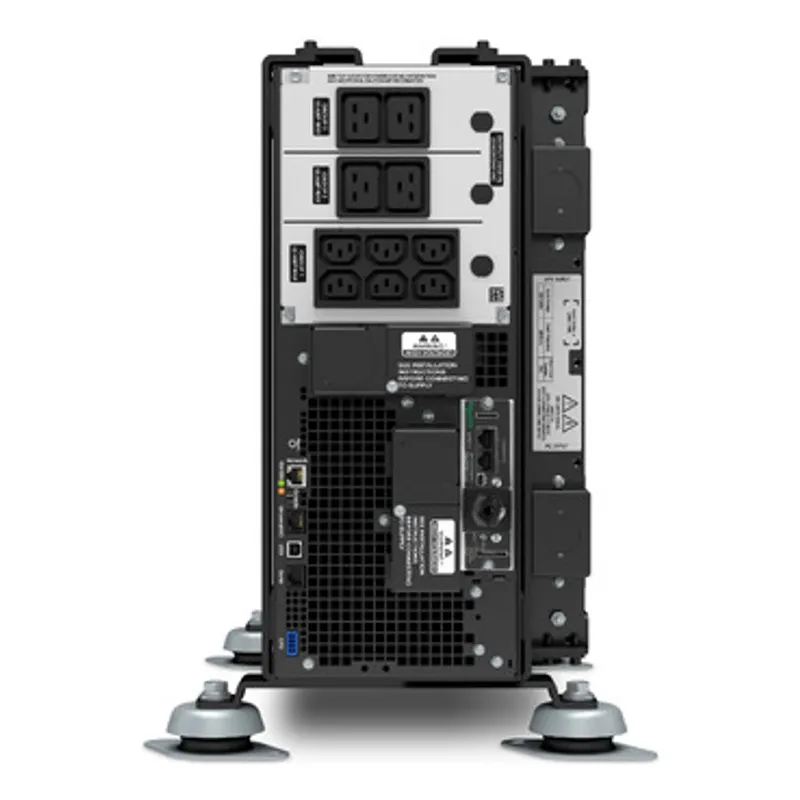

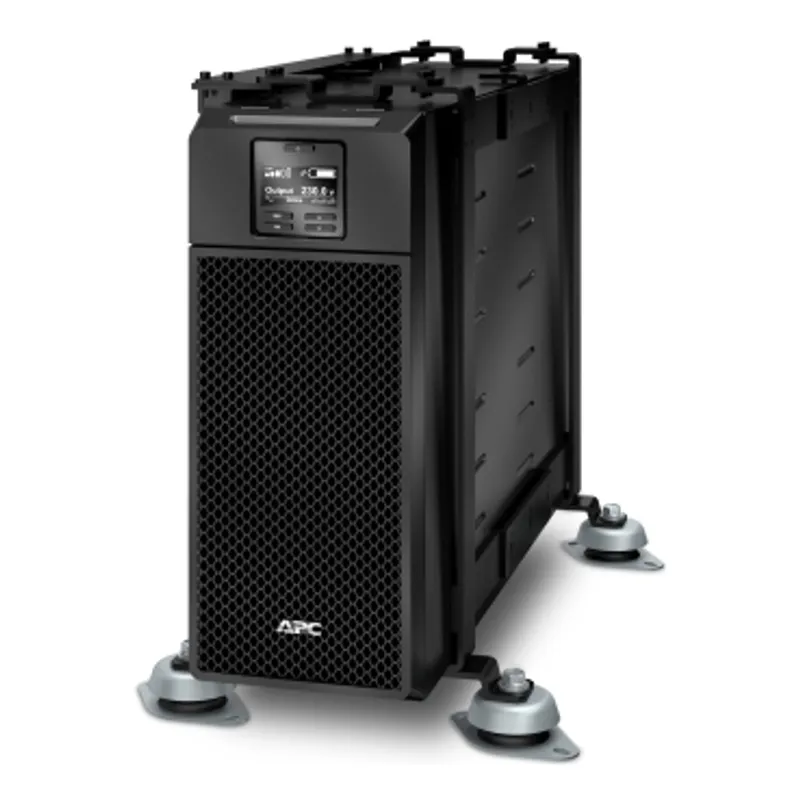

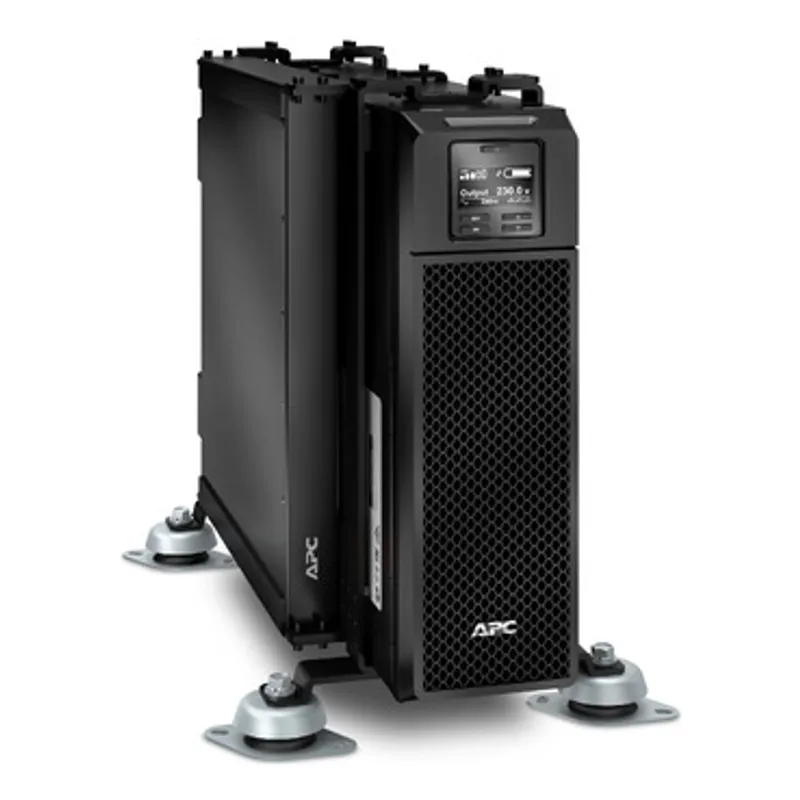

APC 5kVA and 6kVA Marine Filter Rack-Mount
- MPN
- SRT6RMM
- EAN
- 0731304324843
- Category
- Marine
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SRT6RMM?
High availability, ruggedized power protection for shipboard and other transportation applications.
Specifications
Specifications
| Presentation | High availability, ruggedized power protection for shipboard and other transportation applications. |
| Main Input Voltage | 200 V, 208 V, 220 V, 230 V, 240 V |
| Product or component type | Filter |
| Main Output Voltage | 200 V, 208 V, 220 V, 230 V, 240 V |
| Other Output Voltage | 208 V, 220 V, 230 V, 240 V |
| Output connector type | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Connections - terminals | 2 screw terminal |
| Number of rack unit | 1U |
| Provided equipment | Installation guide, Mounting hardware, Rack mounting brackets, User manual |
| Ambient air temperature for operation | 0…55 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…75 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Colour | Black |
| Height | 44 mm |
| Width | 483 mm |
| Depth | 330 mm |
| Net weight | 6.73 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Mounting position | Horizontal |
| Network frequency | 45...65 Hz |
| [In] rated current | 50 A |
| Number of input connectors | 1 hard wire 3-wire |
| permissible voltage | 100…240 V |
| Max line current | 50 A |
| Input current limits | 50 A |
| Load capacity | 6000 VA |
| Max current draw | 50 A |
| Product certifications | DNV |
Packaging
| Package 1 | 1 PCE, 55.9 cm × 40.6 cm × 7.6 cm (L × W × H), 8.27 kg |
