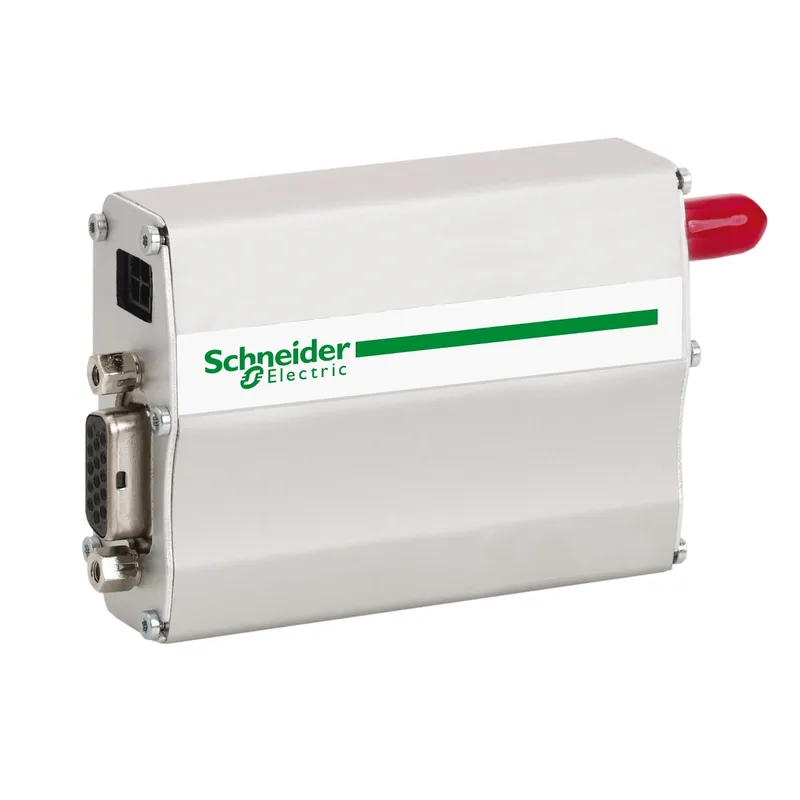

Schneider Electric SR2MOD02
Modem interface - GSM - for communication interface SR2COM01
- MPN
- SR2MOD02
- EAN
- 3389119203999
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original SR2MOD02 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SR2MOD02?
This Zelio Logic SR2 modem interface brings GSM connectivity to your Zelio Logic relay. It provides wireless communications available directly through GSM network, a simple SIM card is enough to get. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Zelio Logic |
| Product or component type | GSM modem |
| Type of modem | Type quad band 900/1800 MHz, 850/1900 MHz |
| Data backed up | Flash memory |
Complementary
| Kit composition | GSM modem; Fixing on DIN rail (assembled with the GSM modem); 1 supply cable; 1 antenna with cable; 2 lugs for plate mounting |
| Function available | Send alarm/receive instruction; Send alarm to e-mail address; Transfer program; Update firmware monitoring |
| Number of messages | 28 |
| Electrical data recording | Telephone/e-mail; Discrete and digital value; Date and time |
| [Us] rated supply voltage | 12...24 V DC |
| Supply voltage limits | 5.5…32 V |
| Maximum supply current | 165 mA at 12 V; 87 A at 24 V; 2100 mA at 5.5 V |
| Power dissipation in W | 2.1 W |
| Associated fuse rating | 2.5 A |
| Electrical connection | 1 cable Com-M Com-M specific to Zelio RS232 serial, specific Zelio communication protocol for link with the modem, AT commands; 1 antenna with cable; 1 cable; 1 cable Com-Z Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1); Supply cable |
| Cable length | 1.5 m supply cable; 2.5 m antenna with cable |
| Insulation | 1780 V optocoupler, connector type: Com-Z specific to Zelio; By the cable SR2 CBL07, connector type: Com-M specific to Zelio |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) semi-solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) solid; Screw terminals, 2 x 0.25...2 x 1.5 mm² (23 AWG...16 AWG) solid |
| Tightening torque | 0.5 N.m |
| Net weight | 0.335 kg |
Environment
| Product certifications | UL; PTCRB; GOST; CSA; IC; FCC part 15 standard; C-Tick |
| Standards | EN/IEC 60068-2-6 Fc; EN/IEC 60068-2-32 |
| Electromagnetic compatibility | Conducted and radiated emissions class B group 1 conforming to EN 55022-11 |
| IP degree of protection | IP31 conforming to IEC 60529 |
| Environmental characteristic | Low voltage directive conforming to EN/IEC 60950-1; R and TTE directive conforming to ETSI EN 301419-1; R and TTE directive conforming to ETSI EN 301 489-7; R and TTE directive conforming to ETSI EN 301 511; EMC directive conforming to ETSI EN 301 489-1 |
| Pollution degree | 2 conforming to EN/IEC 61131-2 |
| Ambient air temperature for operation | -20…55 °C conforming to IEC 60068-2-2; -20…55 °C conforming to IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 0…95 % at 55 °C without condensation; 0…95 % without condensation, during storage |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SR2MOD02: frequently asked questions
Can I still buy the SR2MOD02 now that it is discontinued?
Yes. Schneider Electric has discontinued the SR2MOD02, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can SR2MOD02 be shipped?
SR2MOD02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SR2MOD02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SR2MOD02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR2MOD02, subject to availability and destination.
