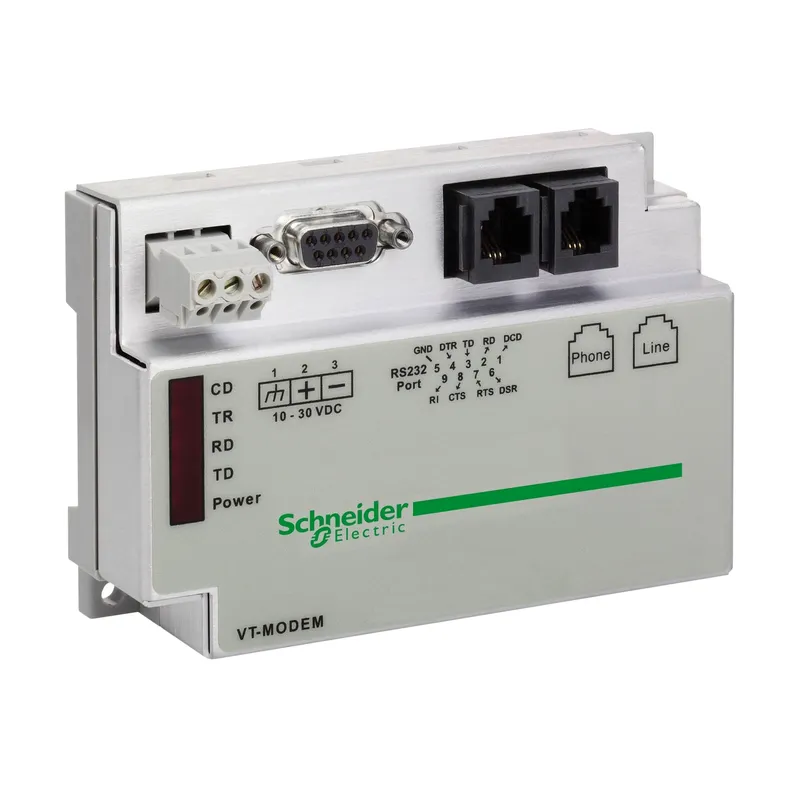

Schneider Electric SR2MOD01
Modem interface - analog PSTN - for communication interface SR2COM01
- MPN
- SR2MOD01
- EAN
- 3389119203982
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original SR2MOD01 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SR2MOD01?
This modem interface is proposed as an accessory of Zelio Logic smart relays range. It comprises one analogue PSTN modem and one telephone cable. Its functions are: transfer program, send alarm/receive instruction, update firmware monitoring. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M251; Modicon M221; Zelio Logic; Modicon M241 |
| Product or component type | Analogue PSTN modem |
| Type of modem | SIXNET VT-MODEM-5-WW |
| Data backed up | Flash memory |
Complementary
| Kit composition | Analogue PSTN modem; 1 telephone cable |
| Function available | Transfer program; Update firmware monitoring; Send alarm/receive instruction; Send alarm to e-mail address |
| Number of messages | 28 |
| Electrical data recording | Telephone/e-mail; Discrete and digital value; Date and time |
| [Us] rated supply voltage | 12...24 V DC |
| Supply voltage limits | 10…30 V |
| Maximum supply current | 140 mA at 12 V; 70 mA at 24 V; 9600 mA |
| Power dissipation in W | 1.7 W |
| Electrical connection | 1 cable Com-M specific to Zelio RS232 serial, specific Zelio communication protocol for link with the modem, AT commands; 1 cable Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1); Telephone cable |
| Cable length | 2 m |
| Insulation | 1780 V optocoupler, connector type: Com-Z specific to Zelio; By the cable SR2 CBL07, connector type: Com-M specific to Zelio |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) semi-solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) solid; Screw terminals, 2 x 0.25...2 x 1.5 mm² (23 AWG...16 AWG) solid |
| Tightening torque | 0.5 N.m |
| Net weight | 0.265 kg |
Environment
| Product certifications | FCC part 15 standard; C-Tick; ACA TS; CTR21; GOST; UL; AS/NZS; CSA |
| Standards | IEC 60068-2-27 Ea; IEC 61000-4-5; IEC 60068-2-6 Fc |
| Electromagnetic compatibility | Conducted and radiated emissions class B group 1 conforming to IEC 55022-11 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2; EMC directive conforming to IEC 61000-6-3; EMC directive conforming to IEC 61000-6-4; EMC directive conforming to IEC 61131-2 zone B; Low voltage directive conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -30…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 5…95 % without condensation |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SR2MOD01: frequently asked questions
Can I still buy the SR2MOD01 now that it is discontinued?
Yes. Schneider Electric has discontinued the SR2MOD01, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can SR2MOD01 be shipped?
SR2MOD01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SR2MOD01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SR2MOD01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR2MOD01, subject to availability and destination.
