Schneider Electric SMX1000I
APC Smart-UPS X, Line Interactive, 1000VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime
- MPN
- SMX1000I
- EAN
- 0731304268635
- Category
- APC Smart-UPS
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SMX1000I?

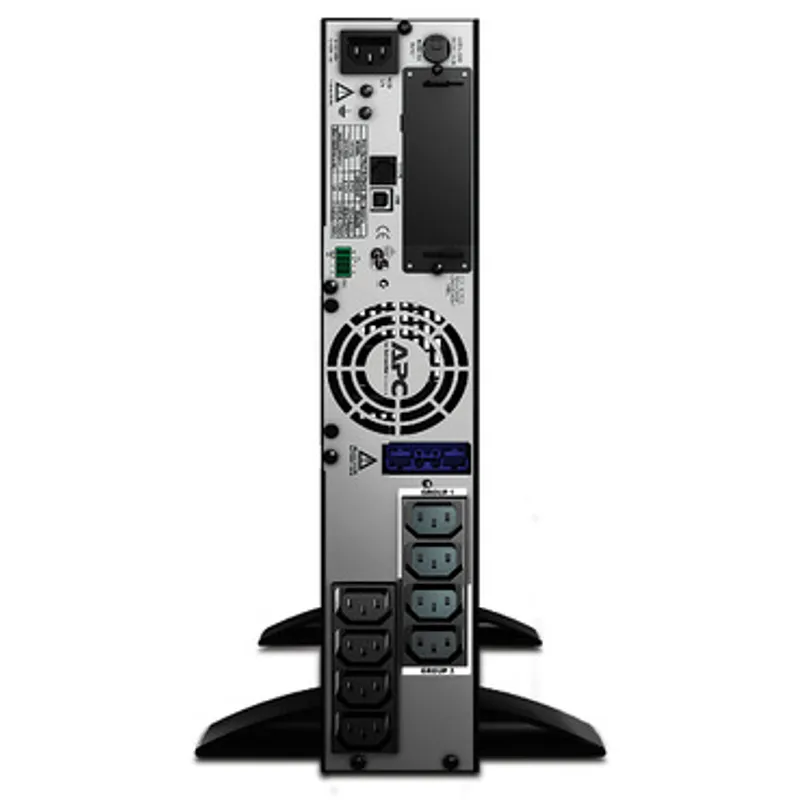

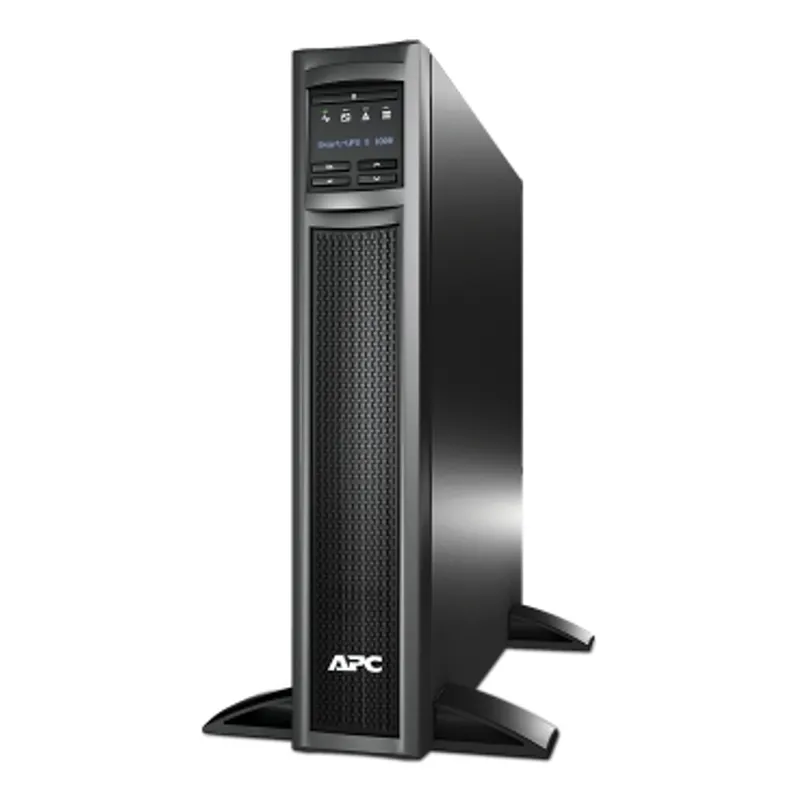

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Specifications
Specifications
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 320 C14 |
| Input voltage limits | 151...302 V adjustable, 160...286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 800 W |
| rated power in VA | 1000 VA |
| Output connection type | 8 IEC 320 C13, 2 IEC Jumpers |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 800 W |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Lead-acid battery |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port, USB port, Available expansion slot |
| Surge energy rate | 600 J |
| Noise suppression | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 89 mm |
| Width | 432 mm |
| Depth | 490 mm |
| Net weight | 22.86 kg |
| Mounting preference | Lower |
| Mounting mode | Tower |
| Two post mountable | 1 |
| USB compatible | No |
| Provided equipment | CD with software, Documentation CD, Installation guide, Rack mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable, USB cable |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Extended run |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, CSA, EAC, RCM, UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…45 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 40 dBA |
| Heat dissipation | 82 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Overcurrent protection | 60 A |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC116 |
| Battery charger power | 99 W rated |
Packaging
| Package 1 | 1 PCE, 63.000 cm × 59.000 cm × 26.000 cm (L × W × H), 25.094 kg |
| Package 2 | 2 P12, 120.000 cm × 80.000 cm × 90.000 cm (L × W × H), 62.188 kg |
