SMTL2USFAPC Smart-UPS SMTL Tower Mounting Stabilizing Feet for Smart-UPS SMTL 750VA/1000VA
Schneider Electric SMTL750RMI2UC

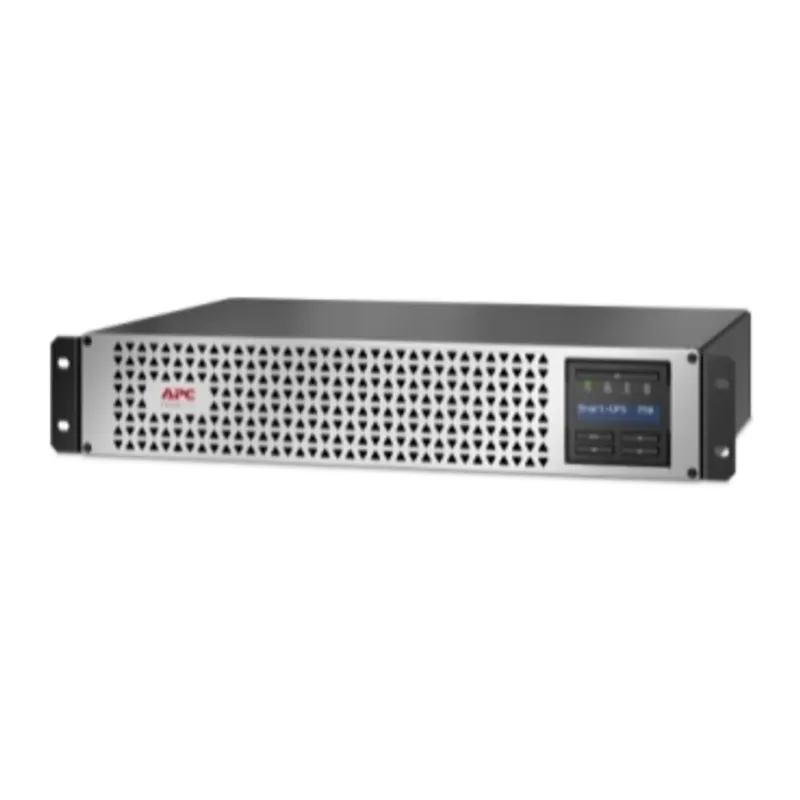

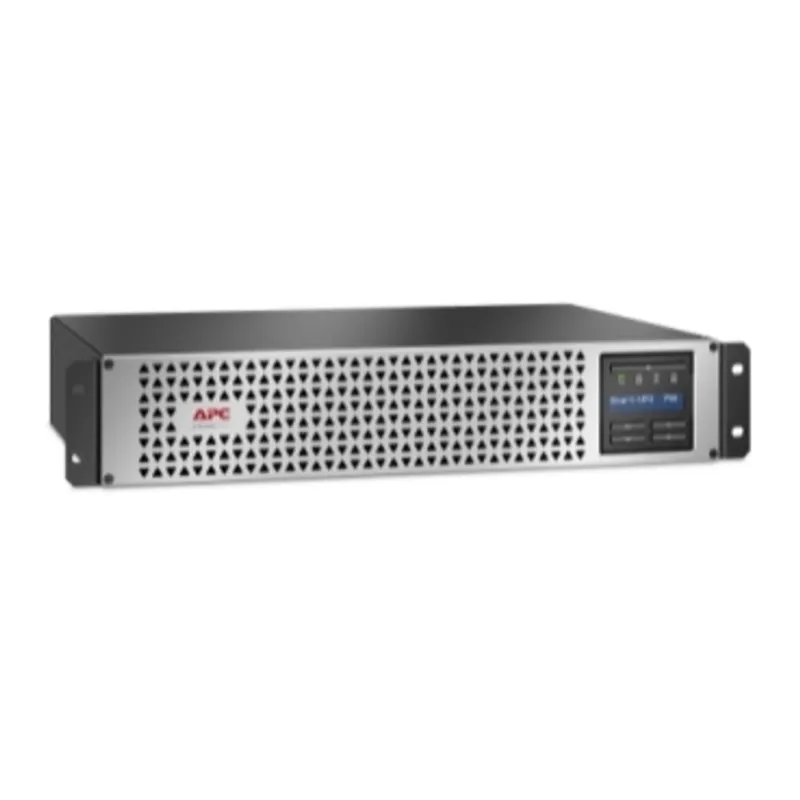

APC Smart-UPS, Line Interactive, 750VA, Lithium-ion, Rack/Tower, 2U, 230V, 6x IEC C13 outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD
- MPN
- SMTL750RMI2UC
- EAN
- 0731304407966
- Category
- APC Smart-UPS
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SMTL750RMI2UC?
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 6 IEC 320 C13 outlets and 2 jumper cables. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Specifications
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V, 240 V |
| Input Connection Type | IEC 60320 C14 |
| Input protection type | Circuit breaker |
| Input voltage limits | 151...302 V adjustable, 160...286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 600 W |
| rated power in VA | 750 VA |
| Output connection type | 6 IEC 60320 C13, 2 IEC Jumpers |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 750 VA |
| Maximum configurable power in W | 600 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Li-Ion (Lithium-Ion) |
| Control panel | Multifunction LCD status and control console |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm |
| UPS connectivity | Serial port, USB port, SmartConnect port, Available expansion slot |
| Surge energy rate | 645 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Colour | Black with silver front bezel |
| Height | 86 mm |
| Width | 438 mm |
| Depth | 318 mm |
| Net weight | 15.4 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with included kit |
| USB compatible | Yes |
| Provided equipment | USB cable, Ethernet patch cable, Rack mounting brackets, Screw, Washer, Rack mounting support rails |
| Additional specification | Cloud-enabled monitoring |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | C-Tick, CE, EAC, UK PSTI |
| Standards | EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…7620 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 41 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery graph comments | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extended runtime | 0 |
| Battery recharge time | 3 h |
| Battery design life | 8…10 year(s) |
| Battery charger power | 50 W rated |
Packaging
| Package 1 | 1 PCE, 58.4 cm × 47.2 cm × 22.9 cm (L × W × H), 18.6 kg |
