Schneider Electric RPZF3
Socket, Harmony Electromechanical Relays, for RPM3 power relays, 16A screw clamp terminals, mixed contact
- MPN
- RPZF3
- EAN
- 3389119402309
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RPZF3?
"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RPM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RPZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RPM with 3 C/O contact |
| Contacts type and composition | 3 C/O |
| [Ith] conventional free air thermal current | 16 A |
| [Ue] rated operational voltage | < 250 V |
| Shape of pin | Flat |
| Contact terminal arrangement | Mixed |
| Tightening torque | < 1 N.m for M3.5 screw(s) |
| Fixing mode | By screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

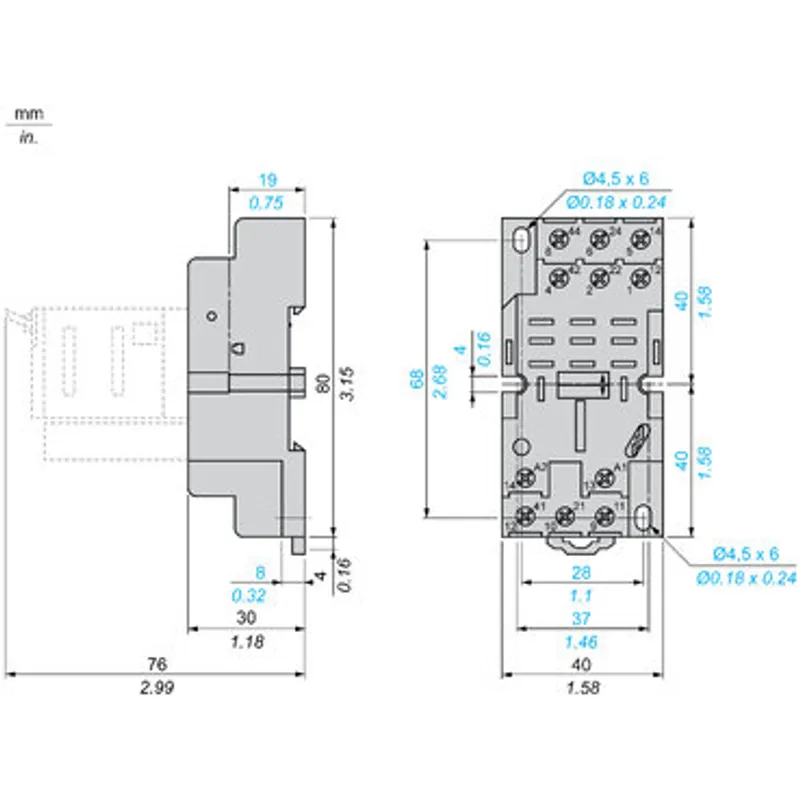

| Width | 40 mm |
| Net weight | 0.072 kg |
| Connections - terminals | - screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | CSA, UL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 8.5 cm × 4.0 cm × 3.0 cm (L × W × H), 77.0 g |
| Package 2 | 10 BB1, 20.2 cm × 12 cm × 6.3 cm (L × W × H), 770 g |
| Package 3 | 150 S03, 40 cm × 30 cm × 30 cm (L × W × H), 12.45 kg |
