Schneider Electric RPZF1

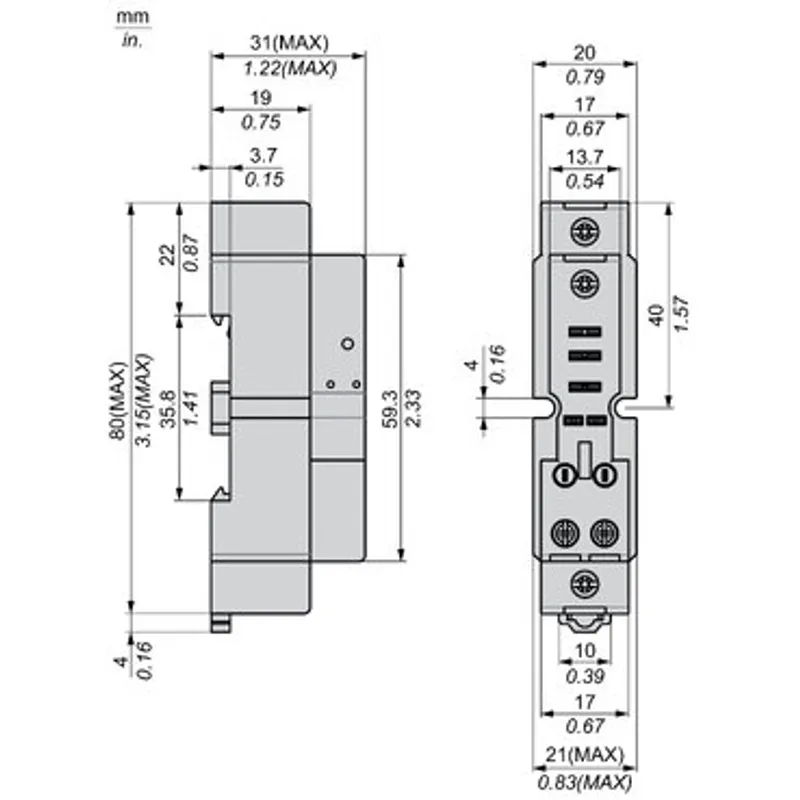

Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays
- MPN
- RPZF1
- EAN
- 3389119402286
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RPZF1?
"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RPM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RPZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RPM with 1 C/O contact |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 16 A |
| [Ue] rated operational voltage | 250 V |
| Contact terminal arrangement | Mixed |
| Tightening torque | < 1 N.m for M3.5 screw(s), < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Net weight | 0.031 kg |
| Connections - terminals | Contact terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12, Contact terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12, Contact terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14, Contact terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14, Coil terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14, Coil terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14, Coil terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16, Coil terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984, CSA C22.2 No 14, UL 508 |
| Product certifications | CSA, UL, EAC, CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 8.5 cm × 2.1 cm × 3 cm (L × W × H), 30 g |
| Package 2 | 10 BB1, 10.7 cm × 9 cm × 6.5 cm (L × W × H), 335 g |
| Package 3 | 240 S03, 40 cm × 30 cm × 30 cm (L × W × H), 8.593 kg |
