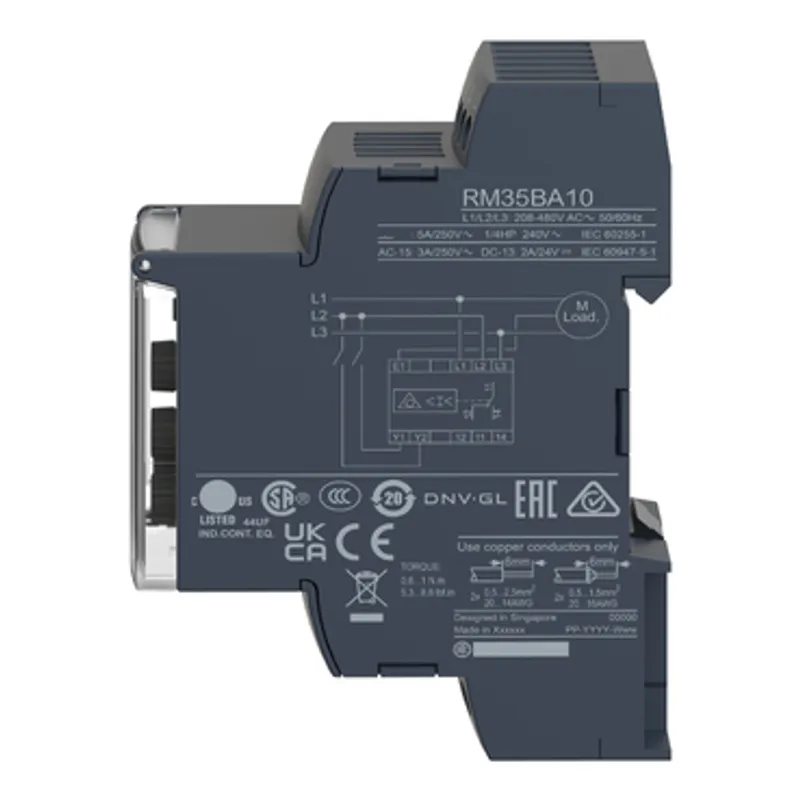

Schneider Electric RM35BA10
Pump control relay, Harmony Control Relays, 5A, 1CO, 208...480V AC
- MPN
- RM35BA10
- EAN
- 3389119405195
- Category
- Harmony Control Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RM35BA10?
This Harmony RM35-BA control relay allows monitoring of pump control. This modular pump control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
Specifications
Specifications
| Range of product | Harmony Control Relays |
| Relay type | Pump control relays |
| Product or component type | Pump control relay |
| Product specific application | For 3-phase and single-phase pump |
| Relay name | RM35BA |
| Relay monitored parameters | Overcurrent and undercurrent control, Phase sequence on 3-phase supply, Phase failure on 3-phase supply |
| Time delay type | Adjustable 1...60 s, +/- 10 % Ti- inhibition time delay upon startup, Adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC/DC |
| Maximum power consumption in VA | 5 VA AC |
| Measurement range | 1...10 A, 208...480 V AC |
| Utilisation category | AC-12 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1 |
| reset time | 2000 ms |
| Maximum switching voltage | 250 V AC/DC |
| [Un] rated nominal voltage | 208...480 V AC 50/60 Hz, non self-powered, 230 V AC 50/60 Hz, non self-powered |
| Supply voltage limits | 183…528 V AC |
| operating voltage tolerance | - 15 % + 10 % Un |
| Resistance across terminals | 0.01 Ohm at E1-L2 terminals |

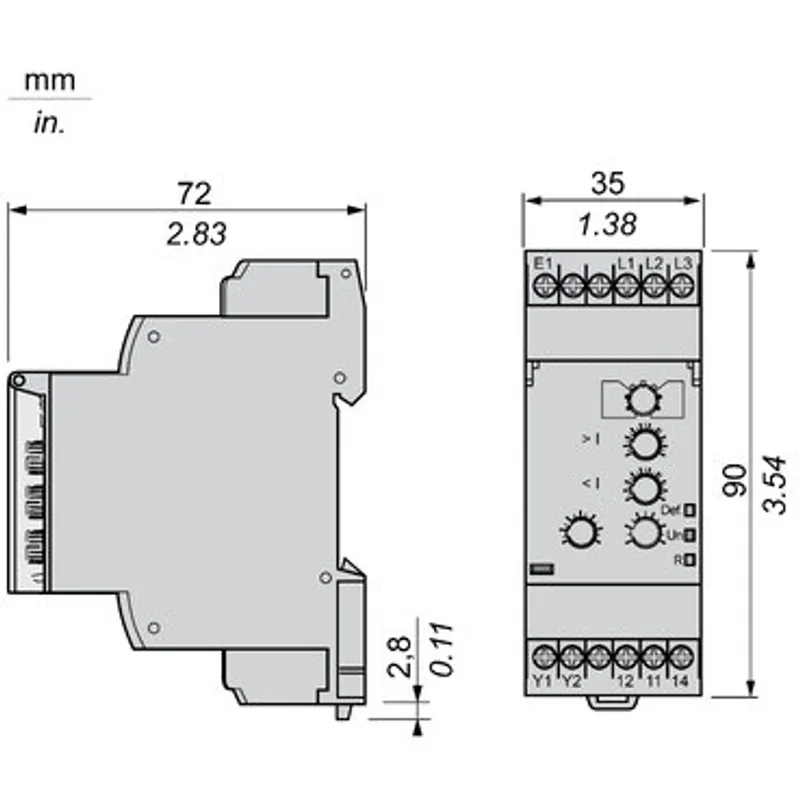

| Width | 35 mm |
| Output contacts | 1 C/O |
| nominal output current | 5 A |
| Maximum measuring cycle | 140 ms as true rms value |
| delay at power up | 0.5 s |
| Hysteresis | 5 % of threshold |
| Measurement accuracy | +/- 10 % of the full scale value |
| Repeat accuracy | +/- 1 % for input and measurement circuit, +/- 1 % for time delay |
| Measurement error | 1 % by volt over the whole range, +/- 0.05 %/°C |
| Response time | < 300 ms (in the event of a fault) |
| overload input current | 11 A permanent at 25 °C E1-L2 terminals, 50 A non repetitive < 1 s at 25 °C E1-L2 terminals |
| Marking | CE : EMC 89/336/EEC, CE : 73/23/EEC |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to 60255-5, > 1 MOhm at 500 V DC between supply and measurement conforming to 60664-1 |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
| Supply frequency | 50/60 Hz +/- 10 % |
| Operating position | Any position |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Status LED | 1 LED green for power ON, 1 LED yellow for fault, 1 LED yellow for relay ON |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Control type | Without test button |
| Immunity to microbreaks | 500 ms |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Standards | IEC 60255-6 |
| Product certifications | C-Tick, CSA, GOST, UL, GL |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1, 1 gn (f= 57.6…150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric strength | 2 kV AC 50 Hz (shock wave 4 kV) |
Packaging
| Package 1 | 1 PCE, 9.7 cm × 4.6 cm × 8.0 cm (L × W × H), 123.0 g |
| Package 2 | 48 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 6.526 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RM35BA10: frequently asked questions
When can RM35BA10 be shipped?
RM35BA10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RM35BA10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RM35BA10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RM35BA10, subject to availability and destination.
