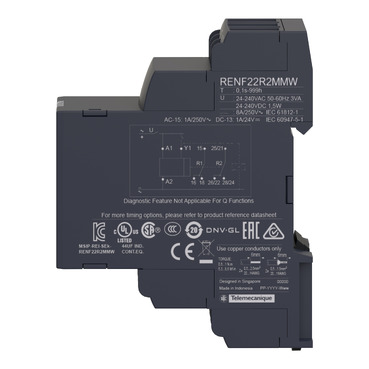

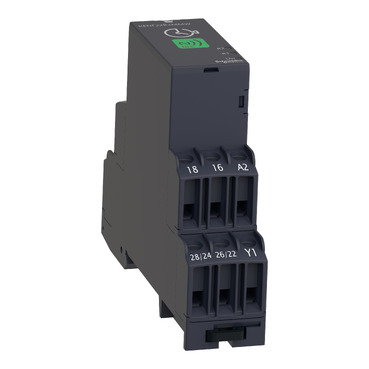

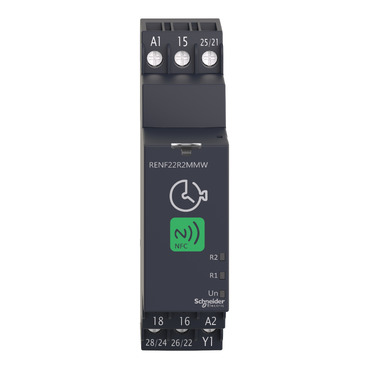

Schneider Electric RENF22R2MMW
Multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC
- MPN
- RENF22R2MMW
- EAN
- 3606480936203
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

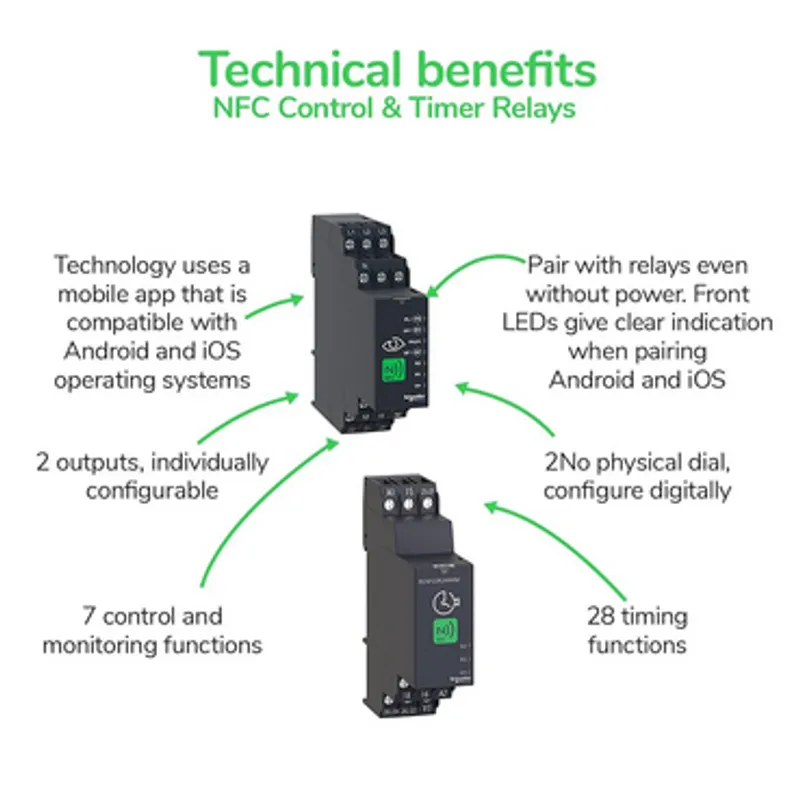

What is the Schneider Electric RENF22R2MMW?
This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.
Specifications
Specifications
| Range of product | Harmony Timer Relays |
| Product or component type | NFC timer relay |
| Device short name | RENF22 |
| App for product | Ecostruxure Industrial Device (downloadable from Google Play store or Apple Store) |
| Discrete output type | Relay |
| nominal output current | 8 A |
| Contacts type and composition | 2 C/O timed contact, cadmium free, 1 C/O timed and instantaneous contact, cadmium free |
| Time delay type | Power on-delay - A- Power on-delay relay, On-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal, Pulse delay - Ad- Pulse delayed relay w/ control signal, Pulse delay - Ah- Pulse delayed relay (single cycle) w/ control signal, On-delay and off-delay - Ak- Asymmetrical on-delay and off -delay relay w/ control signal, Power on-delay - At- Power on-delay relay w/ pause/summation (Y1), Interval - B- Single interval relay w/ control signal, Interval - Bw- Double interval relay w/ control signal, Off-delay - C- Off-delay relay w/ control signal, Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off), Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on), Symmetrical flashing - Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1), Symmetrical flashing - Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1), Interval - H- Interval relay, Interval - Ht- Interval relay w/ pause/summation (Y1), Asymmetrical flashing - Li- Asymmetrical flashing relay (starting pulse-on), Asymmetrical flashing - Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1), Asymmetrical flashing - Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1), Safe-guard - N- Safe-guard relay, Safe-guard - O- Delayed Safe-guard relay, Pulse delay - P- Pulse delayed relay w/ fixed pulse length, Pulse delay - Pt- Pulse delayed relay w/ fixed pulse length and pause/summation, Star-delta - Qt- Star-delta relay (2 CO outputs w/ split common), Star-delta - Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1), Bistable - TI- Bistable relay w/ control signal on, Bistable - Tt- Retriggerable bistable relay w/ control signal on, Interval - W- Interval relay w/ control signal off, Asymmetrical flashing - L- Asymmetrical flashing relay (starting pulse-off) |
| Time delay range | 0.05 s...999 h |
| Product compatibility | NFC enabled mobile device |
| Control type | Without test button |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Release input voltage | <= 2.4 V |
| Voltage range | 0.85...1.1 Un |
| Maximum RF power transmitted | 0.0002 mW |
| NFC operating frequency | 13.56 MHz |
| Supply frequency | 50...60 Hz +/- 5 % |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1, 0.6…1.0 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.2 % for 10 s...999 h time delay range, +/- 0.5 % for 100 ms...10 s time delay range, +/- 0.7 % for 50...100 ms time delay range |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 1 % for 1...999 h time delay range at 25 °C, +/- 2 % for 1...3600 s time delay range at 25 °C, +/- 20 ms for 100 ms...10 s time delay range at 25 °C, +/- 30 ms for 50...100 ms time delay range at 25 °C |
| Control signal pulse width | 100 ms with load in parallel, 60 ms no-load |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Power consumption in VA | 3 VA at 240 V AC |
| Power consumption in W | 1.5 W at 240 V DC, 0.6 W at 24 V DC |
| Switching capacity in VA | 2000 VA |
| Minimum switching current | 10 mA at 5 V |
| Maximum switching current | 8 A |
| Maximum switching voltage | 250 V |
| Electrical durability | 100000 cycles for resistive load, 8 A at 250 V, AC |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV 1.2/50 µs conforming to IEC 60664-1 |
| power on delay | 100 ms |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Safety reliability data | MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C |
| Mounting position | Any position |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| status LED | LED Un: (steady), green for power ON, LED R1: (steady), amber for relay energised, LED R2: (steady), amber for relay energised, LED pairing: (steady), green for communication status, LED Un: (fast blinking), green for diagnosis mode, LED R1: (blinking), amber for timing in progress, LED R2: (blinking), amber for timing in progress |
| Maximum communication distance | 10 mm |
| Function available | A- Power on-delay relay-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, Ad- Pulse delayed relay w/ control signal-2 C/O, Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O, Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, B- Single interval relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, C- Off-delay relay w/ control signal-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O, Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, N- Safe-guard relay-2 C/O, O- Delayed Safe-guard relay-2 C/O, P- Pulse delayed relay w/ fixed pulse length-2 C/O, Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O, Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O, Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O, TI- Bistable relay w/ control signal on-2 C/O, Tt- Retriggerable bistable relay w/ control signal on-2 C/O, W- Interval relay w/ control signal off-2 C/O, L- Asymmetrical flashing relay (starting pulse-off)-2 C/O |
| Operating system | Androidversion >= V7.0, IOSversion >= V14.5 |
| Width | 22.5 mm |
| Net weight | 0.0904 kg |
| Number of functions | 28 |
| Immunity to microbreaks | 10 ms |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz with between relay output and power supply with basic insulation, with basic insulation |
| Standards | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-4, EN 61812-1, IEC 61000-6-3 |
| Directives | 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, CSA, KC, UL, CCC, EAC, DNV-GL |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP40 housing: conforming to IEC 60529, IP40 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn not operating for 11 ms conforming to IEC 60068-2-27, 5 gn in operation for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 95 % at 25…55 °C |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, Fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, Electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, Radiated emission class B conforming to EN 55022, Conducted emission class A conforming to EN 55022, Electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, Electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3 |
Packaging
| Package 1 | 1 PCE, 9.45 cm × 8.05 cm × 2.4 cm (L × W × H), 103.635 g |
| Package 2 | 40 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 4.616 kg |
| Package 3 | 640 P06, 80.0 cm × 60.0 cm × 70.0 cm (L × W × H), 84.13 kg |
