Schneider Electric
RE17RMXMUSHarmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, multifunction, spring terminals, 24 V DC / 24...240 V AC/DC
Harmony Timer Relays Parts
Schneider Electric
RE17RMMUSHarmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, multifunction, spring terminals, 24 V DC / 24...240 V AC/DC
Schneider Electric
RE17RMEMUSHarmony, Modular timing relay, 8 A, 1 CO, 0.1 s..10 h, multifunction, spring terminals, 24 V DC / 24...240 V AC/DC
Schneider Electric

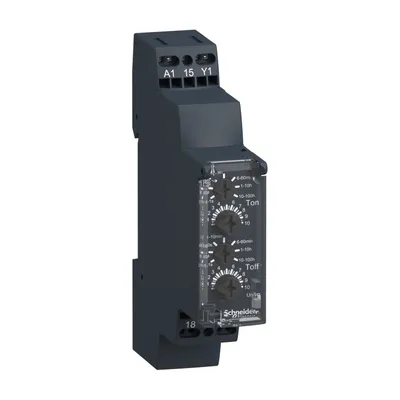

RE17RLMUSHarmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, asymmetrical flashing, spring terminals, 24 V DC / 24...240 V AC/DC
Schneider Electric
RE17RAMUSHarmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, spring terminals, 24 V DC / 24...240 V AC/DC
Schneider Electric
RE17RHMUSHarmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, spring terminals, 24 V DC / 24...240 V AC/DC
Schneider Electric
RE17RCMUSHarmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, off delay, spring terminals, 24 V DC / 24...240 V AC/DC
Schneider Electric
RE17LLBMSHarmony, Modular timing relay, 0.7 A, 1 s..100 h, asymmetrical flashing, solid state output, spring terminals, 24...240 V AC
Schneider Electric

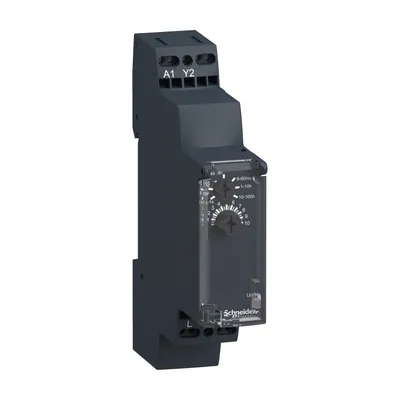

RE17LCBMSHarmony, Modular timing relay, 0.7 A, 1 s..100 h, off delay, solid state output, spring terminals, 24...240 V AC
Schneider Electric
RE17LAMWSHarmony, Modular timing relay, 0.7 A, 1 CO, 1 s..100 h, on delay, solid state output, spring terminals, 24..240 V AC/DC
Schneider Electric
REXL4TMP7Single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 230V AC
Schneider Electric
REXL4TMF7Single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 120V AC
Schneider Electric
REXL4TMBDSingle function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 24V DC
Schneider Electric
REXL4TMB7Single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 24V AC
Schneider Electric
REXL2TMP7Single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Schneider Electric

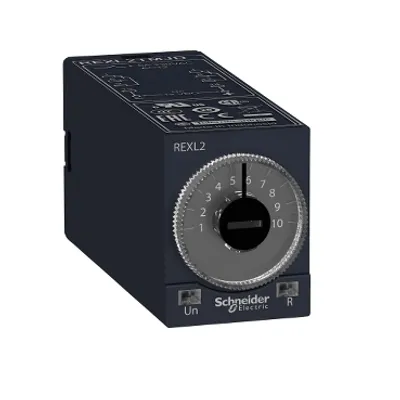

REXL2TMJDSingle function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 12V DC
Schneider Electric
REXL2TMF7Single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 120V AC
Schneider Electric
REXL2TMBDSingle function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 24V DC
Schneider Electric
REXL2TMB7Single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 24V AC
Schneider Electric

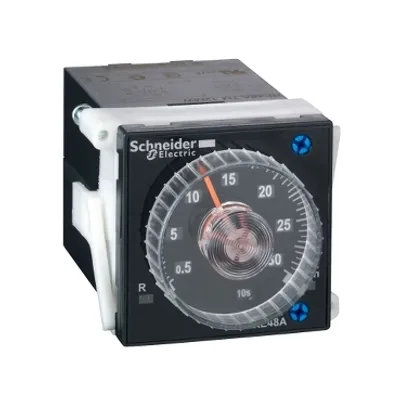

RE48ATM12MWMultifunction relay, Harmony Timer Relays, 5A, 2CO, 0.02s...300h, on delay, 24...240V AC DC
Schneider Electric

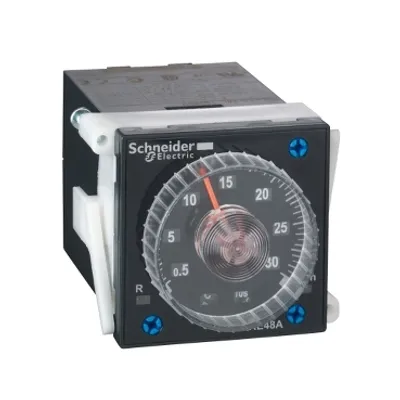

RE48AML12MWMultifunction relay, Harmony Timer Relays, 5A, 2CO, 0.02s...300h, time delay, 24...240V AC DC
Schneider Electric
RE48AMH13MWMultifunction relay, Harmony Timer Relays, 5A, 1CO+1CO timed, 0.02s...300h, time delay, 24...240V AC DC
Schneider Electric

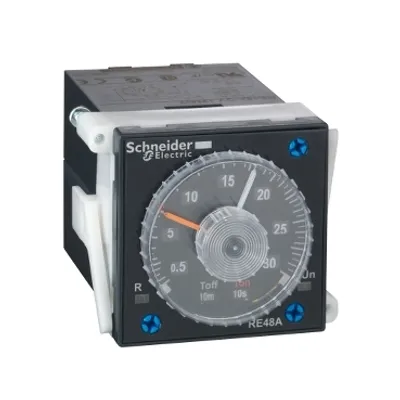

RE48ACV12MWDual function relay, Harmony Timer Relays, 5A, 2CO, 0.02s...300h, asymmetrical flashing, 24...240V AC DC
Schneider Electric

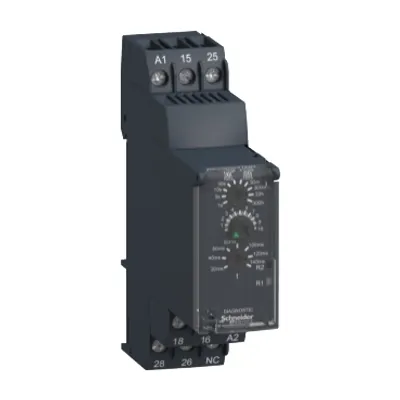

RE22R2QTMRSingle function relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, star delta, screw connectors, 24...240V AC DC
Compare Harmony Timer Relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Width | [Us] rated supply voltage | Number of functions | Product certifications |
|---|---|---|---|---|---|
| RE17RMXMUS | Modular timing relay | 17.5 mm | 24...240 V AC 50/60 Hz; 24 V DC | 9 | CSA; cULus; DNV-GL; EAC; CCC |
| RE17RMMUS | Modular timing relay | 17.5 mm | 24...240 V AC 50/60 Hz; 24 V DC | 10 | CSA; cULus; DNV-GL; EAC; CCC |
| RE17RMEMUS | Modular timing relay | 17.5 mm | 24...240 V AC 50/60 Hz; 24 V DC | 8 | CSA; cULus; DNV-GL; EAC; CCC |
| RE17RLMUS | Modular timing relay | 17.5 mm | 24...240 V AC 50/60 Hz; 24 V DC | 2 | CSA; cULus; DNV-GL; EAC; CCC |
| RE17RAMUS | Modular timing relay | 17.5 mm | 24...240 V AC 50/60 Hz; 24 V DC | 2 | CSA; cULus; DNV-GL; EAC; CCC |
| RE17RHMUS | Modular timing relay | 17.5 mm | 24...240 V AC 50/60 Hz; 24 V DC | 2 | CSA; cULus; DNV-GL; EAC; CCC |
| RE17RCMUS | Modular timing relay | 17.5 mm | 24...240 V AC 50/60 Hz; 24 V DC | 1 | CSA; cULus; DNV-GL; EAC; CCC |
| RE17LLBMS | Dual function relay | 17.5 mm | 24...240 V AC 50/60 Hz | 2 | CSA; cULus; DNV-GL; EAC |
| RE17LCBMS | Single function relay | 17.5 mm | 24...240 V AC 50/60 Hz | 1 | CSA; cULus; DNV-GL; EAC |
| RE17LAMWS | Single function relay | 17.5 mm | 24...240 V AC/DC 50/60 Hz | 1 | CSA; cULus; DNV-GL; EAC |
| REXL4TMP7 | Miniature timing relay | 21 mm | 230 V AC 50/60 Hz | 1 | cUL, UL |
| REXL4TMF7 | Miniature timing relay | 21 mm | 120 V AC 50/60 Hz | 1 | cUL, UL |
| REXL4TMBD | Miniature timing relay | 21 mm | 24 V DC | 1 | UL, cUL |
| REXL4TMB7 | Miniature timing relay | 21 mm | 24 V AC 50/60 Hz | 1 | UL, cUL |
| REXL2TMP7 | Miniature timing relay | 21 mm | 230 V AC 50/60 Hz | 1 | UL, cUL |
| REXL2TMJD | Miniature timing relay | 21 mm | 12 V DC | 1 | UL, cUL |
| REXL2TMF7 | Miniature timing relay | 21 mm | 120 V AC 50/60 Hz | 1 | cUL, UL |
| REXL2TMBD | Miniature timing relay | 21 mm | 24 V DC | 1 | cUL, UL |
| REXL2TMB7 | Miniature timing relay | 21 mm | 24 V AC 50/60 Hz | 1 | UL, cUL |
| RE48ATM12MW | Panel-mounted/plug-in timer relay | 48 mm | 24...240 V AC/DC 50/60 Hz | 1 | UL, cULus, C-Tick, CSA |
| RE48AML12MW | Panel-mounted/plug-in timer relay | 48 mm | 24...240 V AC/DC 50/60 Hz | 4 | UL, cULus, CSA, C-Tick |
| RE48AMH13MW | Panel-mounted/plug-in timer relay | 48 mm | 24...240 V AC/DC 50/60 Hz | 4 | cULus, UL, CSA, C-Tick |
| RE48ACV12MW | Panel-mounted/plug-in timer relay | 48 mm | 24...240 V AC/DC 50/60 Hz | 2 | UL, C-Tick, cULus, CSA |
| RE22R2QTMR | Modular timing relay | 22.5 mm | 24...240 V AC/DC 50/60 Hz | 1 | CCC, GL, UL, EAC, RCM, CSA, CE |
Common to all listed parts
| Range of product | Harmony Timer Relays |
