Schneider Electric RE22R2MYMR
Multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC
- MPN
- RE22R2MYMR
- EAN
- 3606480792533
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

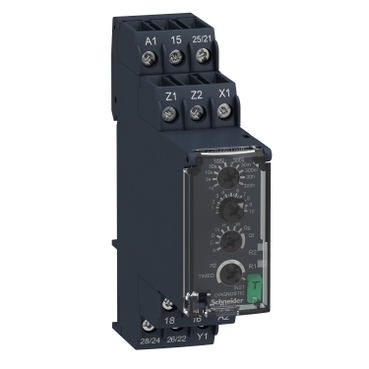

What is the Schneider Electric RE22R2MYMR?
This Harmony RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8A, is 22.5mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists.
Specifications
Specifications
| Range of product | Harmony Timer Relays |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Device short name | RE22 |
| nominal output current | 8 A |
| Contacts type and composition | 1 C/O timed or instantaneous contact, cadmium free, 2 C/O timed contact, cadmium free |
| Time delay type | Power on-delay - A- Power on-delay relay, Power on-delay - At- Power on-delay relay w/ pause/summation (X1), Power on-delay - Aw- Power on-delay relay w/ retrigger/restart, Off-delay - C- Off-delay relay w/ control signal, Off-delay - Ct- Off-delay relay w/ control signal and pause/summation, Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off), Symmetrical flashing - Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1), Symmetrical flashing - Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart, Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on), Symmetrical flashing - Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1), Symmetrical flashing - Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart, Interval - H- Interval relay, Interval - Ht- Interval relay w/ pause/summation (X1), Interval - Hw- Interval relay w/ retrigger/restart, Star-delta - Qg- Star-delta relay (2 CO outputs w/ same common), Star-delta - Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation, Star-delta - Qt- Star-delta relay (2 CO outputs w/ split common), Star-delta - Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1), Interval - W- Interval relay w/ control signal off, Interval - Wt- Interval relay w/ control signal off and pause/summation |
| Time delay range | 3...30 min, 30...300 min, 0.3...3 s, 3...30 h, 10...100 s, 1...10 s, 0.05...1 s, 30...300 s, 30...300 h, 3...30 s |
| Control type | With test button |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Release input voltage | <= 2.4 V |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Control signal pulse width | 100 ms with load in parallel, 30 ms |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 3 VA at 240 V AC |
| Power consumption in W | 1.5 W at 240 V DC |
| Switching capacity in VA | 2000 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A |
| Maximum switching voltage | 250 V AC |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1 |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV for 1.2…50 µs conforming to IEC 60664-1 |
| Power on delay | 100 ms |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Safety reliability data | B10d = 160000, MTTFd = 171.2 years |
| Mounting position | Any position |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED backlight green (steady) for dial pointer indication, LED yellow (steady) for output relay energised, LED yellow (fast flashing) for timing in progress and output relay de-energised, LED yellow (slow flashing) for timing in progress and output relay energised |
| Function available | A- Power on-delay relay-2 C/O, At- Power on-delay relay w/ pause/summation (X1)-2 C/O, Aw- Power on-delay relay w/ retrigger/restart-2 C/O, C- Off-delay relay w/ control signal-2 C/O, Ct- Off-delay relay w/ control signal and pause/summation-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-2 C/O, Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-2 C/O, Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (X1)-2 C/O, Hw- Interval relay w/ retrigger/restart-2 C/O, Qg- Star-delta relay (2 CO outputs w/ same common)-2 C/O, Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation-2 C/O, Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O, Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1)-2 C/O, W- Interval relay w/ control signal off-2 C/O, Wt- Interval relay w/ control signal off and pause/summation-2 C/O |
| Width | 22.5 mm |
| Net weight | 0.105 kg |
| Number of functions | 22 |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1 |
| Standards | UL 508, IEC 61812-1 |
| Directives | 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive |
| Product certifications | RCM, CE, EAC, CSA, CCC, UL, GL |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP40 housing: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529, IP50 front panel: conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn not operating for 11 ms conforming to IEC 60068-2-27, 5 gn in operation for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 95 % at 25…55 °C |
| Electromagnetic compatibility | Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 |
Packaging
| Package 1 | 1 PCE, 9.5 cm × 8.2 cm × 2.6 cm (L × W × H), 116.0 g |
| Package 2 | 40 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 5.153 kg |
| Package 3 | 640 P06, 80.0 cm × 60.0 cm × 75.0 cm (L × W × H), 74.24 kg |
