Schneider Electric RE22R2MJU
Single function relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, multifunction, 12V AC DC
- MPN
- RE22R2MJU
- EAN
- 3606480676598
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RE22R2MJU?
This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
Specifications
Specifications
| Range of product | Harmony Timer Relays |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Device short name | RE22 |
| nominal output current | 8 A |
| Contacts type and composition | 1 C/O timed contact, 1 C/O timed or instantaneous contact |
| Time delay type | Power on-delay - A- Power on-delay relay, On-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal, Power on-delay - At- Power on-delay relay w/ pause/summation (Y1), Interval - B- Single interval relay w/ control signal, Interval - Bw- Double interval relay w/ control signal, Off-delay - C- Off-delay relay w/ control signal, Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off), Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on), Interval - H- Interval relay, Interval - Ht- Interval relay w/ pause/summation (Y1) |
| Time delay range | 1...10 min, 6...60 min, 0.1...1 s, 6...60 s, 1...10 s, 1...10 h, 10...100 h |
| Control type | With test button |
| [Us] rated supply voltage | 12 V AC/DC |
| Voltage range | 0.9...1.2 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| Connections - terminals | Screw terminals, 2 x 1.5 mm² with cable end, Screw terminals, 2 x 2.5 mm² without cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Control signal pulse width | 30 ms, 100 ms under load |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 1.2 VA at 12 V AC |
| Power consumption in W | 0.5 W at 12 V DC |
| breaking capacity | 2000 VA |
| Minimum switching current | 10 mA at 5 V |
| Maximum switching current | 8 mA |
| Maximum switching voltage | 250 V |
| Electrical durability | 100000 cycles for resistive load, 8 A at 250 V, AC |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV for 1.2…50 µs conforming to IEC 60664-1, 5 kV conforming to IEC 61812-1 |
| Power on delay | 100 ms |
| Safety reliability data | B10d = 190000, MTTFd = 205.4 years |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED green (flashing) for timing in progress, LED green (steady) for power ON, LED yellow for relay energised |
| Function available | A- Power on-delay relay-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, B- Single interval relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, C- Off-delay relay w/ control signal-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O |

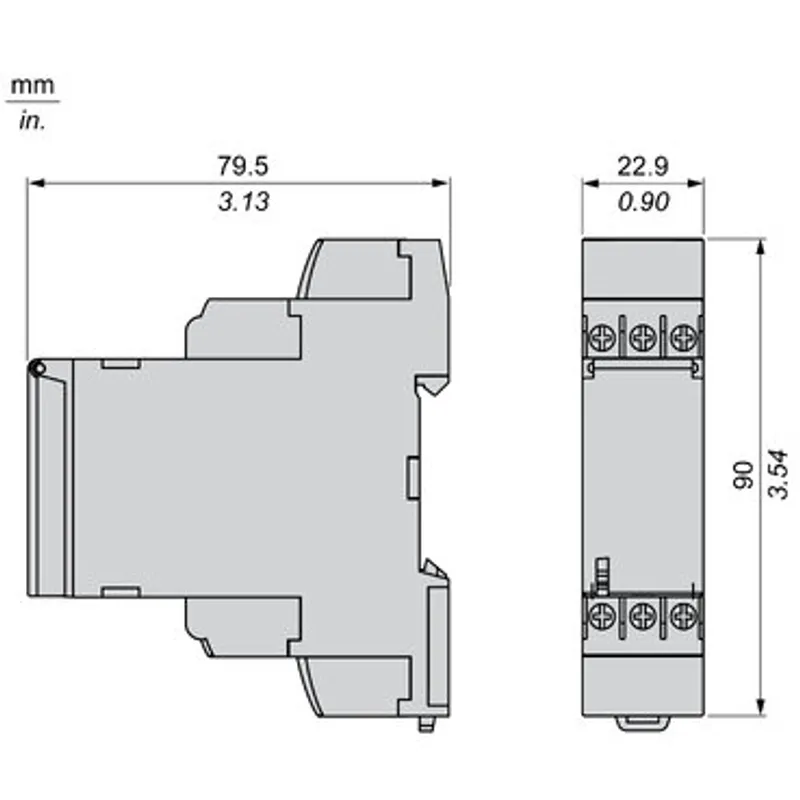

| Width | 22.5 mm |
| Net weight | 0.09 kg |
| Number of functions | 10 |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1 |
| Standards | IEC 61000-6-1, IEC 61812-1, IEC 61000-6-4, IEC 61000-6-3, IEC 61000-6-2 |
| Directives | 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility |
| Product certifications | CSA, cULus, CE, EAC, GL, CCC, RCM |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -30…60 °C |
| IP degree of protection | IP40 housing: conforming to IEC 60529, IP20 terminal block: conforming to IEC 60529, IP40 front face: conforming to IEC 60529 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 93 %, without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, Fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, Electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, Conducted and radiated emissions class B conforming to EN 55022 |
Packaging
| Package 1 | 1 PCE, 9.700 cm × 8.400 cm × 2.700 cm (L × W × H), 103.000 g |
| Package 2 | 40 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.638 kg |
