RE17LCBMSingle function relay, Harmony Timer Relays, 0.7A, 1s..100h, off delay, solid state output, 24 to 240V AC
Schneider Electric RE17LLBMS
Harmony, Modular timing relay, 0.7 A, 1 s..100 h, asymmetrical flashing, solid state output, spring terminals, 24...240 V AC
- MPN
- RE17LLBMS
- EAN
- 3606489861551
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original RE17LLBMS (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric RE17LLBMS?

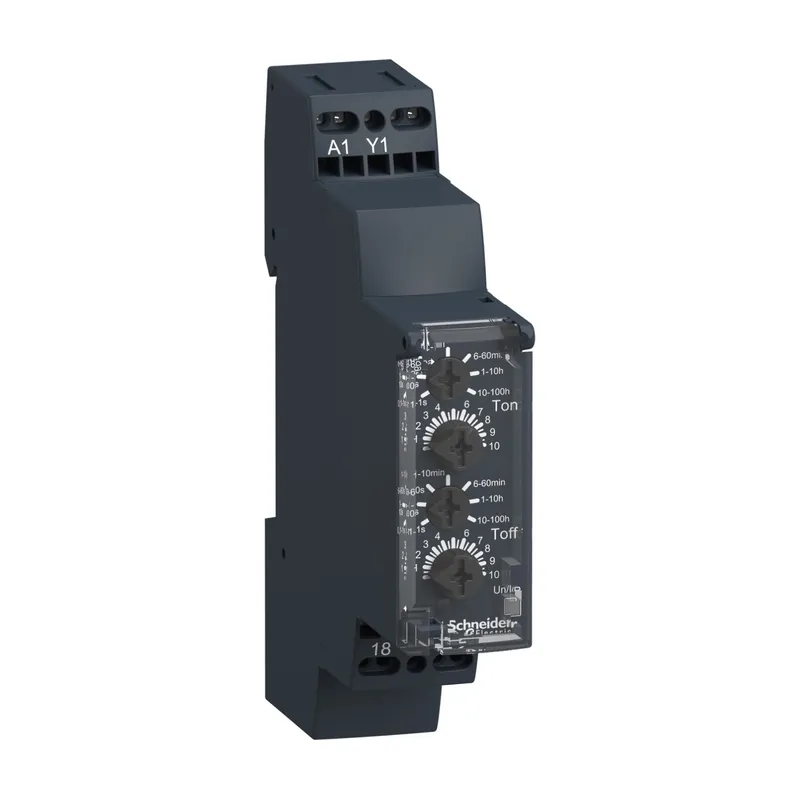

This modular timing relay belongs to the Schneider Electric Harmony Timer relays range. This is an asymmetrical flashing relay with dual function and is activated when the power is removed from the control input Y1. This is a 17.5mm slim relay with input of 24Vac to 240Vac and solid state output of 0.7A. It has one of slimmest form-factors, allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. This is a spring terminal type relay with a sealable cover and rotary trimmers for simple and precise settings. It has 7 selectable timing ranges of 1s, 10s, 1min, 10min, 1h, 10h, and 100h and 4 dials for adjusting. It weighs 0.050Kg. The product conforms to IEC 61812-1 and EN 61812-1 standards, and UL, CSA, GL, RCM, EAC, CCC, and China ROHS certifications. The spring terminals timing relays bring you easy, time-saving and secured wiring during installation and maintenance. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Harmony Timer Relays |
| Discrete output type | Solid state |
| Product or component type | Dual function relay |
| Width | 17.5 mm |
| Component name | RE17L |
| Time delay range | 6...60 s; 6...60 min; 1...10 min; 0.1...1 s; 1...10 h; 10...100 h; 1...10 s |
| nominal output current | 0.7 A |
Complementary
| Height | 90 mm |
| Depth | 72 mm |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| release of input voltage | 7 V |
| control signal pulse width | 0.05 s typical |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs |
| power on delay | 100 ms |
| Connections - terminals | Spring terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid without cable end; Spring terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible without cable end |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Time delay type | Asymmetrical flashing - L- Asymmetrical flashing relay (starting pulse-off); Asymmetrical flashing - Li- Asymmetrical flashing relay (starting pulse-on) |
| Reset time | 350 ms on de-energisation typical |
| On-load factor | 100 % |
| Power consumption in VA | 0…3 VA at 240 V AC |
| Breaking capacity | 0.5 A AC conforming to UL; 0.7 A AC at 20 °C |
| operating frequency | 10 Hz |
| Maximum output current | 20 A |
| minimum switching current | 10 mA |
| Maximum leakage current | 5 mA |
| Maximum switching voltage | 250 V AC |
| Maximum voltage drop | <4 V 3-wire; <8 V 2-wire |
| Electrical durability | 100000000 cycles |
| Marking | CE |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Safety reliability data | B10d = 320000; MTTFd = 353.8 years |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Function available | L- Asymmetrical flashing relay (starting pulse-off)-1 solid state output; Li- Asymmetrical flashing relay (starting pulse-on)-1 solid state output |
| Control type | Without test button |
| Net weight | 0.05 kg |
| Time delay type | L, Li |
| Functionality | Asymmetrical flashing timer |
| Number of functions | 2 |
| Compatibility code | RE17 |
Environment
| Immunity to microbreaks | 20 ms |
| Derating factor | 5 mA/°C |
| Standards | IEC 61000-6-2; IEC 61000-6-4; IEC 61812-1; IEC 61000-6-1; IEC 61000-6-3; 2006/95/EC; 2004/108/EC |
| Product certifications | CSA; cULus; DNV-GL; EAC |
| Ambient air temperature for storage | -30…60 °C |
| Ambient air temperature for operation | -20…60 °C |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529; IP40 (housing) conforming to IEC 60529; IP50 (front panel) conforming to IEC 60529 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 93 % without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility | Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2; Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5; Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6; Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11; Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11; Conducted and radiated emissions: , class B, conforming to EN 55022 |
