Schneider Electric PCSPCTFCL15001R

Q: When can PCSPCTFCL15001R be shipped?

PCSPCTFCL15001R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up PCSPCTFCL15001R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for PCSPCTFCL15001R and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PCSPCTFCL15001R, subject to availability and destination.

AccuSine+ current transformer - 1500/1 - Rectangular Split Core - 69.8x168.2mm

MPN: PCSPCTFCL15001R
Category: PowerLogic™ AccuSine PFV+

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric PCSPCTFCL15001R?

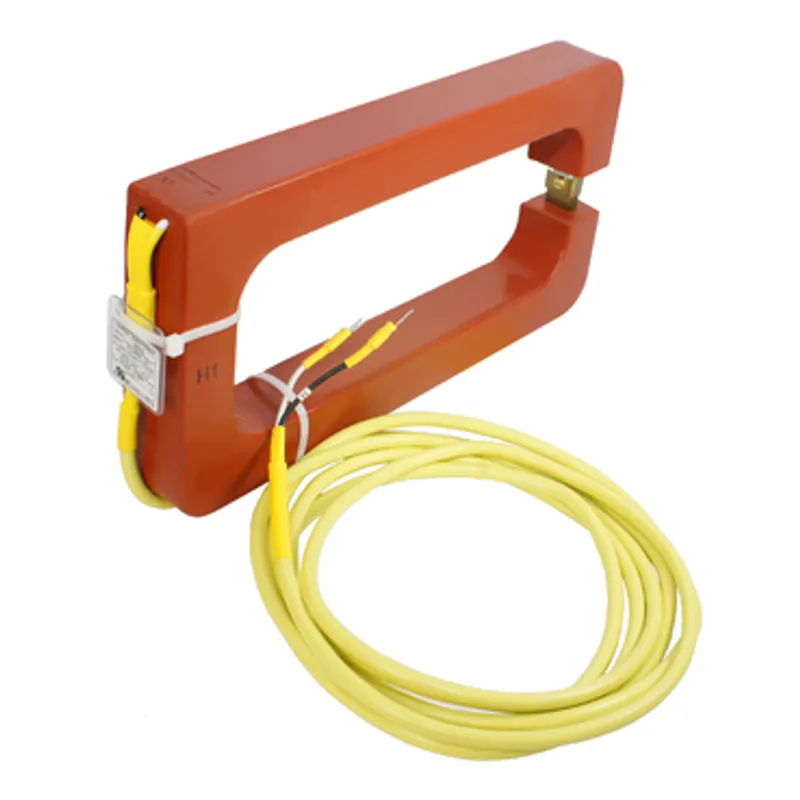

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1500A and a secondary rating of 1A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.

Specifications

Range	AccuSine
Product or component type	Current transformer
Accessory / separate part category	Measurement accessory
Range compatibility	AccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller
Current transformer type	Split core
Shape	Rectangular
Secondary current	1 A
Current transformer ratio	1500/1
Electrical connection	Flying lead: 3.65 m720 V
Input impedance	15 Ohm
[In] rated current	1500 A
thermal factor	1.25 at 30 °C, 1 at 55 °C
Network frequency	50...400 Hz
Measurement accuracy	1 %
Accuracy class	Class 1
[Ue] rated operational voltage	< 720 V AC 50...400 Hz
[Uimp] rated impulse withstand voltage	10 kV (50 µs)
Width	Outside: 139.7 mm, Inner: 69.8 mm
Height	Outside: 238 mm, Inner: 168.2 mm
Depth	Outside : 38.1 mm
Net weight	1.9 kg
Standards	IEC 60044-1
Product certifications	cURus, CE
Ambient air temperature for operation	-45…55 °C

Packaging

Package 1

1 PCE, 38.1 cm × 28.3 cm × 10.2 cm (L × W × H), 2.0 kg
