Schneider Electric PCSPCTFCL150016

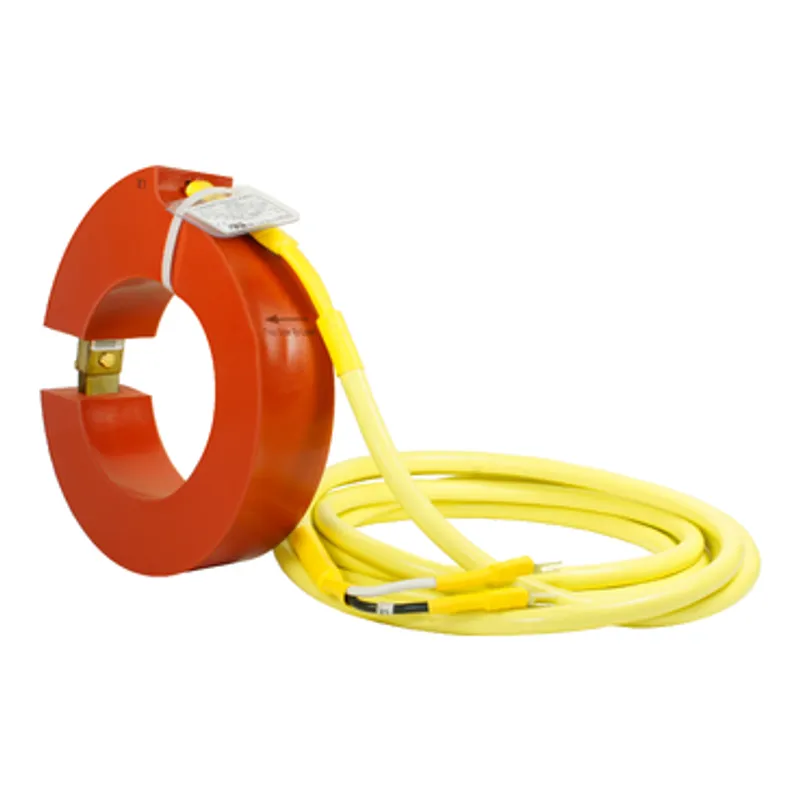

AccuSine+ current transformer - 1500/1 - Round Split Core - diam: 152.4mm
- MPN
- PCSPCTFCL150016
- EAN
- 3606480891779
- Category
- PowerLogic™ AccuSine PFV+
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric PCSPCTFCL150016?
This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1500A and a secondary rating of 1A. The inner diameter of this coil is 152.4mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Specifications
Specifications
| Range | AccuSine |
| Product or component type | Current transformer |
| Accessory / separate part category | Measurement accessory |
| Range compatibility | AccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller |
| Current transformer type | Split core |
| Shape | Round |
| Secondary current | 1 A |
| Current transformer ratio | 1500/1 |
| Electrical connection | Flying lead: 3.65 m720 V |
| Input impedance | 15 Ohm |
| [In] rated current | 1500 A |
| thermal factor | 1.25 at 30 °C, 1 at 55 °C |
| Network frequency | 50...400 Hz |
| Measurement accuracy | 1 % |
| Accuracy class | Class 1 |
| [Ue] rated operational voltage | < 720 V AC 50...400 Hz |
| [Uimp] rated impulse withstand voltage | 10 kV (50 µs) |
| Depth | Outside : 38.1 mm |
| Diameter | 152.4 mm inner:, 215.9 mm outer: |
| Net weight | 1.9 kg |
| Standards | IEC 60044-1 |
| Product certifications | CE, cURus |
| Ambient air temperature for operation | -45…55 °C |
Packaging
| Package 1 | 1 PCE, 38.1 cm × 28.3 cm × 10.2 cm (L × W × H), 2.0 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
PCSPCTFCL150016: frequently asked questions
When can PCSPCTFCL150016 be shipped?
PCSPCTFCL150016 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PCSPCTFCL150016 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PCSPCTFCL150016 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PCSPCTFCL150016, subject to availability and destination.
