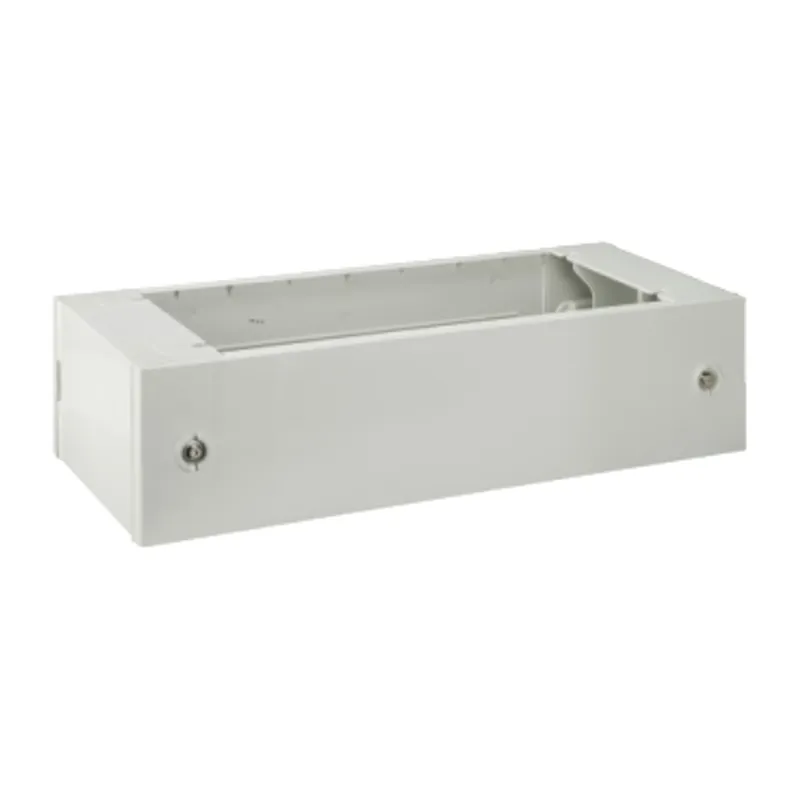

Polyester glassreinforced plinth for encl. PLM86 front opening IP44-IK10 RAL7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6.93 kg |
Shipping & availability
When can NSYZM263G be shipped?
NSYZM263G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYZM263G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYZM263G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYZM263G, subject to availability and destination.
Schneider Electric Polyester glassreinforced plinth for encl. PLM86 front opening IP44-IK10 RAL7035, manufacturer part number NSYZM263G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |

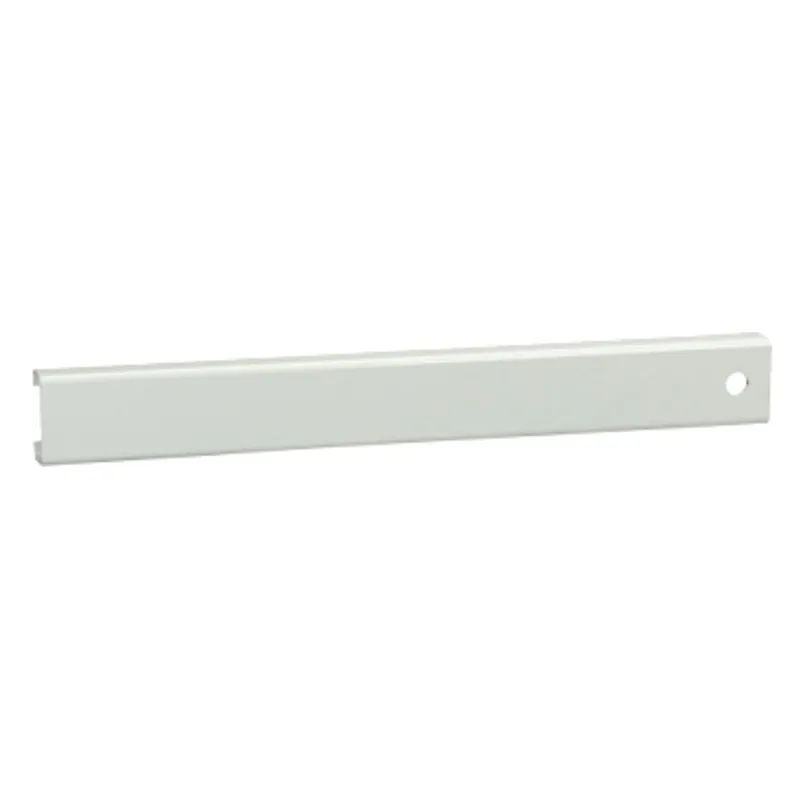

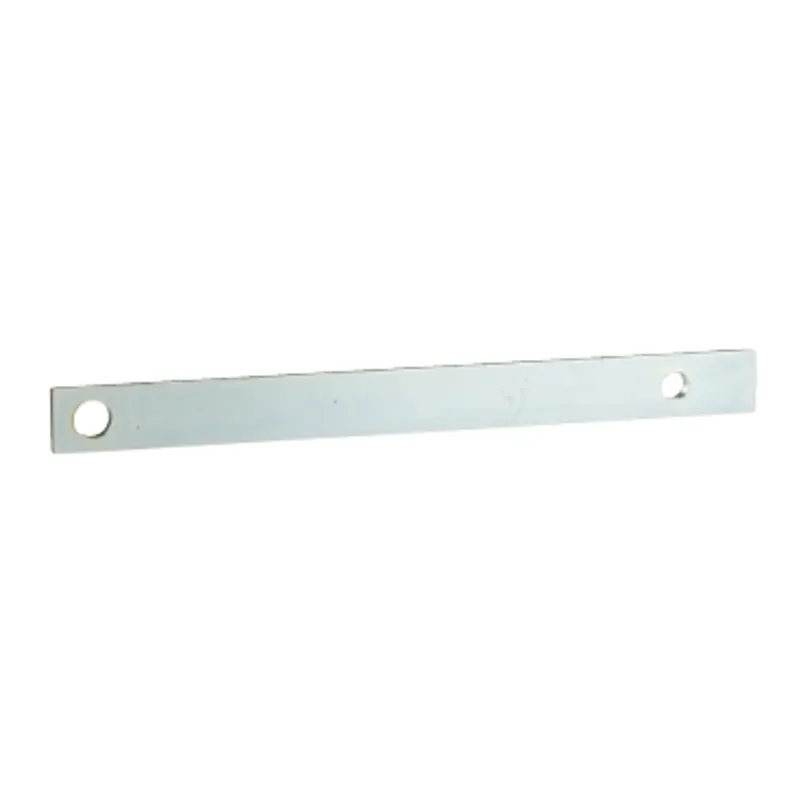

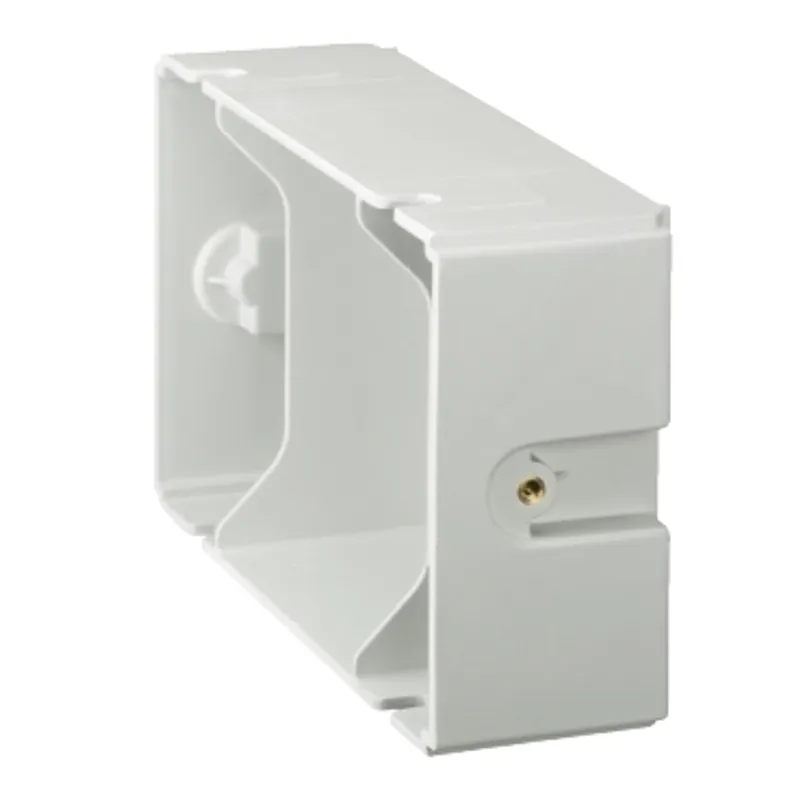

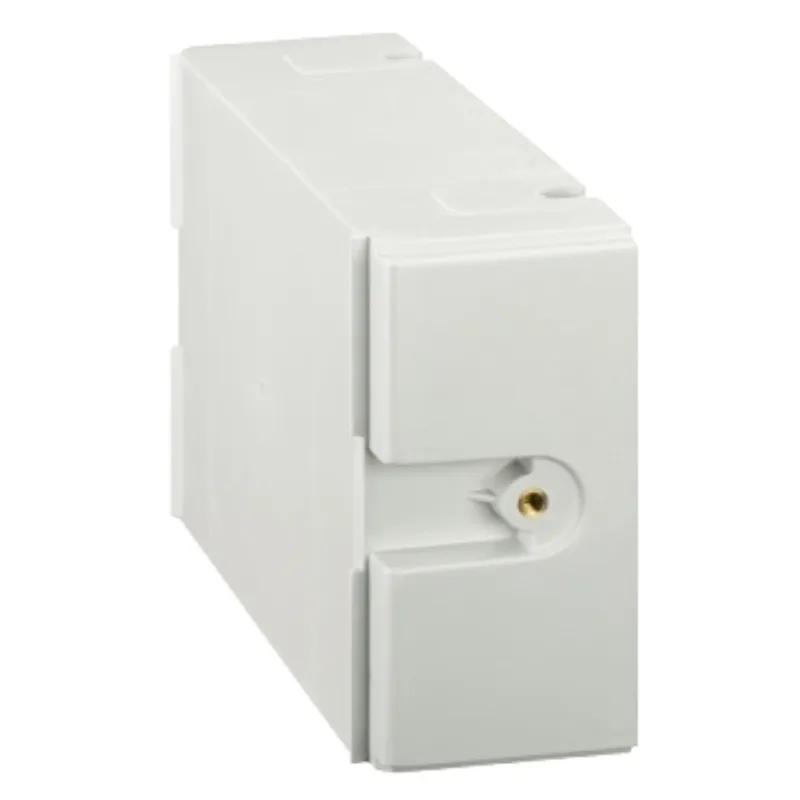

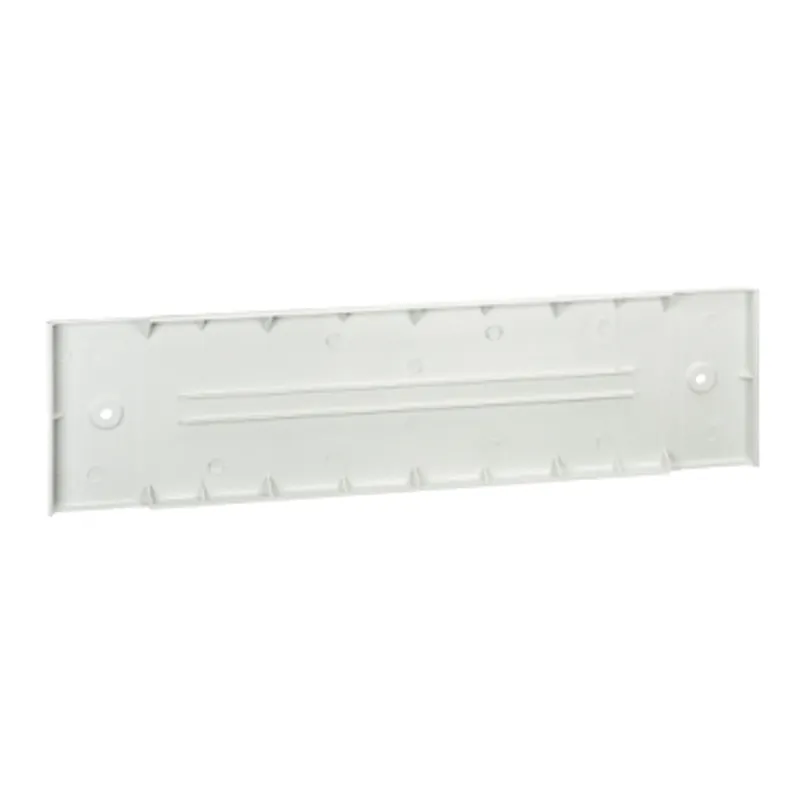

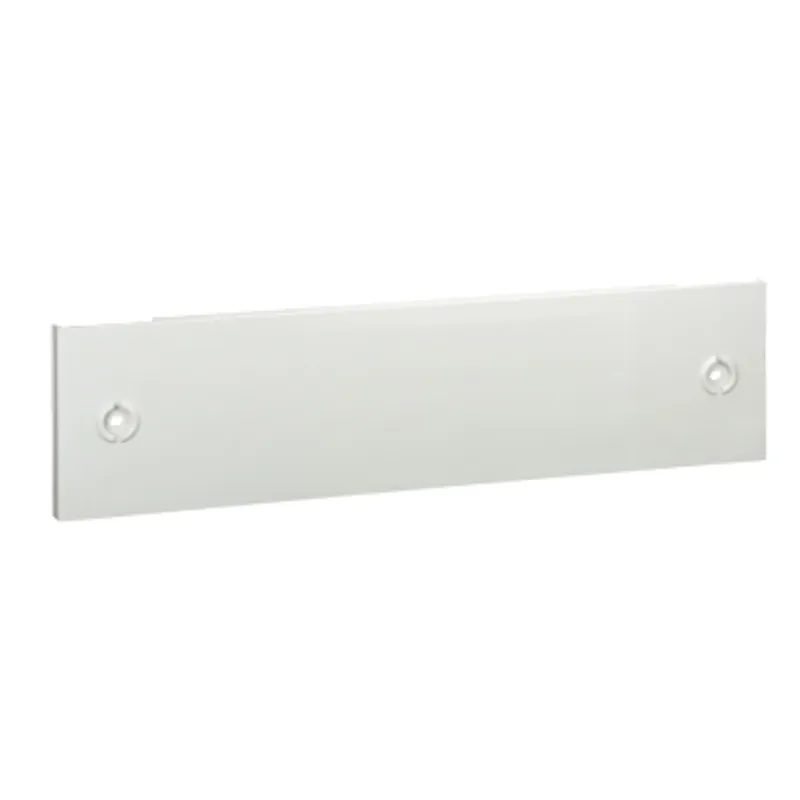

| Device composition | Fixing elements, 2 front panel, 2 side part |
| Range compatibility | PanelSeT PLM |
| Fixing mode | By screws - on side parts location |
| Colour | Plinth: grey (RAL 7035) |
| Height | 200 mm |
| Width | 556 mm |
| Depth | 302 mm |
| IP degree of protection | IP44 |
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.500 cm |
| Package 1 Width | 21.500 cm |
| Package 1 Length | 60.000 cm |
| Package 1 Weight | 6.930 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 122.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 360.000 kg |
| Warranty | 18 months |
